DC12v to DC24V Boost Converter,3A

FOB Price

US$ 5 - 8 / Piece

1 Piece(Min. Order)

Port ShenZhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	YASON
Model Number	YS-12-24-03A		Warranty	6 Months

Product Description

1. Imported integrated switching regulator module manufacturing.
2. synchronous rectification, the conversion rate of 96% or more, very low heat.
3. reverse polarity protection, over-voltage, over-current, over-temperature, short circuit protection automatic braking function, and work in the conditions of recovery.
4.Alumnum shell, epoxy potting, waterproof, shock, moisture and dust.
5. The line length is about 15CM, slim, small size, easy installation.
6. Connection: Enter the red (+) black line (-), the output of the yellow line (+) black (-).
7. Scope: bus, CMB, large trucks, motor car, solar power, bus display, taxi advertising screen, absolute taxi radio without interference, car audio, LCD TVs, LED, intercom and monitoring systems .

Note

1. Power comes with reverse polarity protection, even in the absence of electronic basis can try the same. Pick the wrong answer it like a new turn, will not cause any harm to the power supply.
2. To ensure that the module can output enough voltage and power, make sure there is adequate input supply voltage and power.
3. Please average output of more output with load line, please hasty merger with load.
4. It should be noted the maximum current output value reached thermal power module (module to give the best to leave some of the current margin, which last longer, do not use the maximum possible)

Item Specifications

Model	YS-12-24-3A
Input Voltage Range	12V
Efficiency	more than 96%
Output voltage	DC24V
Output current	3A
Output rated power	72W
Working temperature	-40℃ ~ 60 ℃
Waterproof rating	IP68
Over-voltage protection	YES
Over-current protection	YES
Over-temperature protection	YES
Short-circuit protection	YES

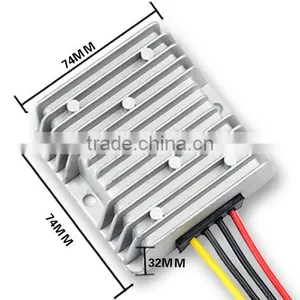

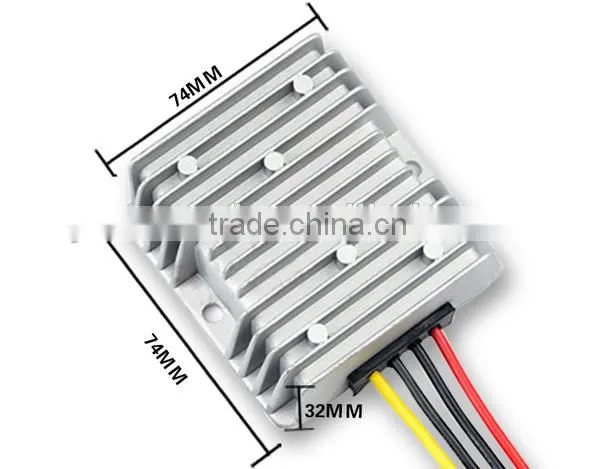

Item size	747432mm
N. Weight	290G
Cooling way	Free air convection

Detailed Images
