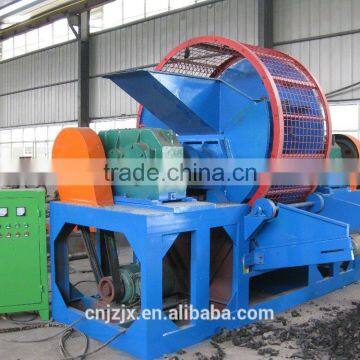

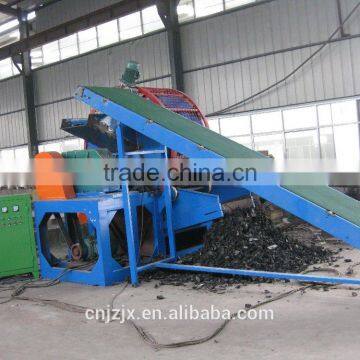

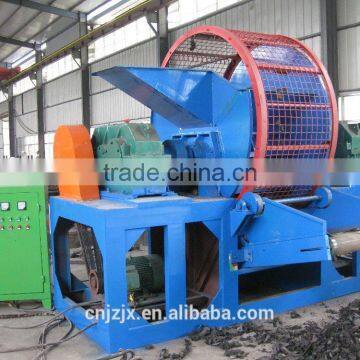

Advanced Continuous Tire Shredder Waste Tyres Recycling Machine

JZ-2200*6000 2*40HQ
JZ-2200*6600 2*40HQ
JZ-2400*6000 1*40HQ AND 1*40 FR
JZ-2400*6600 1*40HQ AND 1*40 FR
JZ-2800*6000 1*40HQ AND 1*40 FR
JZ-2800*6600 1*40HQ AND 1*40 FR
Tyre Recycling!! automatic tyre recycling machine from best factory

Brief introduction

    We manufacture and supply waste tyre & plastic pyrolysis plant, and has been exported to India, Pakistan, Thailand,South Africa,Romania, Albania European countries and so on.

    Our pyrolysis plant can be used to refine oil by using waste tyre, waste plastic and rubbers recycling to crude oil, carbon black, steel wire and gas, and then after distillation will get diesel oil. Heating materials can usewood, coal, fuel oil, nature gas and electricity. They are widely used in hotels, restaurants, bathing center, power plant, engines and chemical sector and so on.

Raw material

Fuel

Final products

Main parts of waste tyre pyrolysis equipment

1.       Horizontal reactor

2.       3 remove dust and sulphur system

3.       Gas separator

4.       Oil-water separator

5.       Water cooling system

6.       Water seal

7.       Depositing tank

8.       Draft fan

9.       Oil tank

10.     Heavy oil tank

11.     Waste gas recycle system

12.     Vacuum device

13.     Pressure and temperature system

14.     Electric control system

3-D flow chart

Technical detail

Ø  This is a batch process system.

Ø  The wastage tyres are fed into the reactor vessel and heated under controlled conditions of

temperature and pressure.

Ø  The process will bring about molecular restructuring of the rubber under the pyrolysis process

as the result; furnace oil in gaseous form is produced along with other gases.

Ø  These vaporized gases are passed through heat exchanges, where in the furnace oil is condensed

into liquid form.

Ø  During the process, carbon black and steel are also generated.

Ø  The heat exchanger uses coolant water, as a condensing medium and this water is re-circulated

through process.

Ø  These systems can be operated 24/365.

Delivery site

Delivery time

We will delivery the machine within 15-25days after get the advance payment.

Port (China)

lianyungang port & qingdao port & shanghai port



Warranty and machine life

We guarantee the complete machine 2 years, the reactor life more than 4 years,others

parts no need change lifelong expect the wearing parts.

Old customer

• There are running machine in our workshop,if you have chance to China, it is our pleasure to show the operation to you!

• Leave an inquiry to know more details about price, packing, shipping and discount!
