Specifications
4 AXIS CNC ROUTER1.Imported linear guide rail
2.3kw water cooling spindle
3.High intensity and small vibration

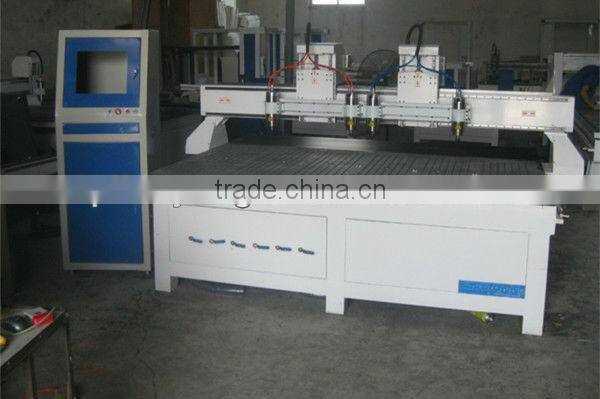

CNC Router TX1325A

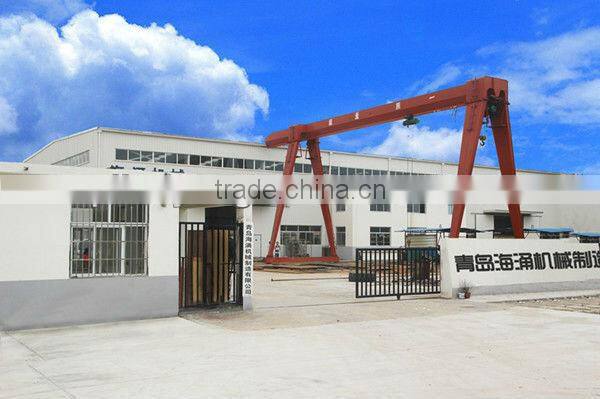

1. Our factory:
Qingdao Haiyong Machinery Manufacturing Co., Ltd. is a manufacturer of wood –working machinery with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We can produce machine according to customer's requirement.
2.Our production:
This is machine is widely used in woodworking and advertising industy. Imported Germany preload anti-backlash ball screws, reduce the gap generating in the movement to a minimum. And X,Y,Z three axis adopt imported precision linear guide to make sure the high precision of speed.
3.Technical specification:
1 |
X,Y,z Working Area |
1300×2500mmx150mm |
2 |
Table size |
1230mmx2340mm |
3 |
Max working Speed |
8000mm/min |
4 |
Table surface |
aluminium profile+PVC |
5 |
Repositioning Positioning Accuracy |
0.05mm |
6 |
Command Code |
G code.plt.HPGL |
7 |
Software operating environment |
windows98/2000/xp |
8 |
Working Voltage |
AC220V/50Hz |
9 |
Spindle Power Motor |
3.0KW/4.5kw |
10 |
Spindle Speed |
24000rpm/min |
11 |
Working Mode |
Stepper motor |
12 |
Max rapid speed |
20000mm/min |
4.Advantage:
1.Adopt imported precision linear guide and double row and four row ball slider,make sure the high precision and safety of speed.
2.Spindle adopts high-power water cooling or imported spindle motor.
3.Good at carving various materials
4.Compatible Type3/Artcam/Castmate/Proe/Wentai and other software
5.Application:

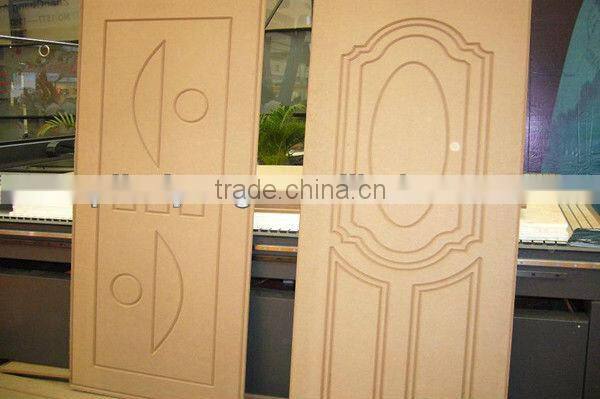

Woodworking industry:: three-dimensional wave board processing, cabinet door, craft wooden door, wenqi door, folding screen, process window milling shape carved furniture products
6.Pictures:
Any other problem,please feel free to contact me.
