Specifications

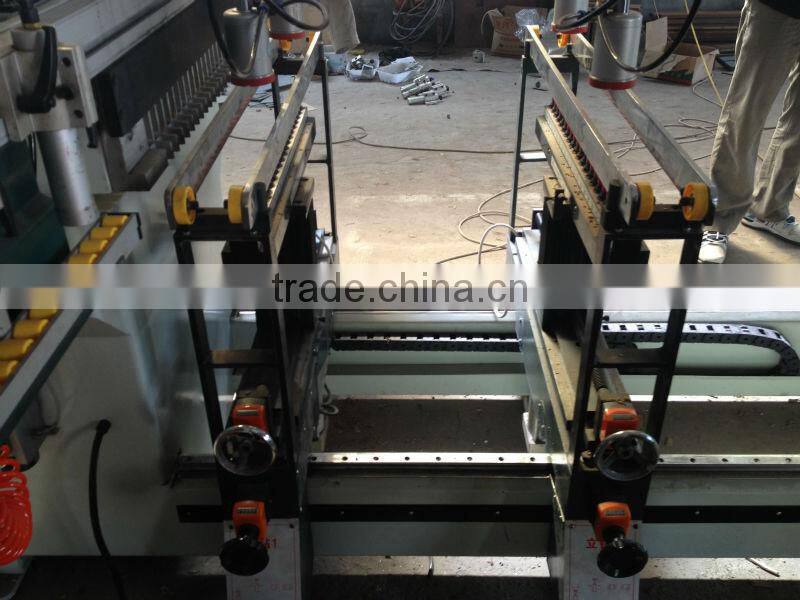

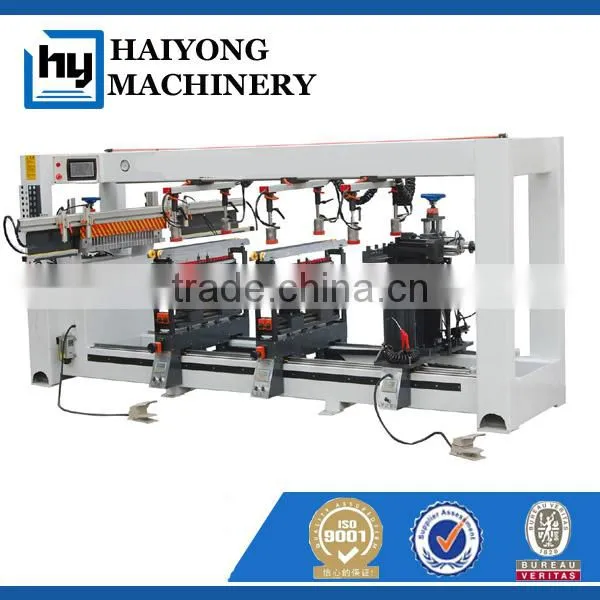

this gang drill can drill 3 rank of holes at same time.the motor power is 4500w. max drilling depth is 60mm.Basic feature of this machine
1 the working range of the drill is very large. All the drill can be jointed quickly.it is very quick and convenient
2 The drilling depth and distance are controlled by sensor and linear guide, so it can locate quickly and accurately
3 Using famous brand touched screen and adopting PLC control system,the machine is powerful and of lower failure rates,
so it is durable
4 Selection of high quality steel parts, and it is never deformed by high-strength heat treatment.
5 Equipped with digital calculator to measure sizes which enhances the work efficiency.
Technical specifications
Max diameter of holes | 35mm |
Depth of drilled holes | 0-60mm |
The number of spindles | 63 |
Centerdistance betwween spindles | 32mm |
Rotation of spindle | 2840r/miin |
Total motor power | 4500w |
Air pressure | 0.5-0.8mpa |
Overall size | 2500x2600x1600mm |
weight | 1260kg |
