Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Boring Machine > Woodworking Wood Multi-boring Machine
US$ 4,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Motor Type:
Standard Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Woodworking Multi Hole Drilling MachineUS$ 4,000 - 8,000MOQ: 1 Set -
Woodworking Spindle Boring MachineUS$ 4,000 - 8,000MOQ: 1 Set
-
Woodworking Multi Borer for SaleUS$ 4,000 - 8,000MOQ: 1 Set
-
Woodworking Multi Spindle Boring MachineUS$ 4,000 - 8,000MOQ: 1 Set
-
Woodworking Multi Spindle Drilling HeadUS$ 4,000 - 8,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Motor Type
Standard Motor
Spindle Speed
2840r/min
Place of Origin
Shandong, China
Brand Name
HAIYONG
Model Number
MZ73213
Power(W)
4.5kw
Weight
1260KG
Dimension(L*W*H)
2500X2600X1600MM
Certification
ISO9001
Warranty
One Year
After-sales Service Provided
Overseas service center available
wood multi-boring machine
1 The machine body use the steel structure and get heating treatment, it will not deformation after long time
2 The digital display of the machine travel, make the job position more precision
3 Taiwan hiwin linear guide , very accuracy
4 All the drill bit use the quick coupling, easy to replace
5 The drill depth and drill distance all depend on the inductive switch . Make the job quick and precision
Max diameter of hole | 35mm |
Depth of hole | 0-60mm |
Number of spindles | 63 |
Distance between spindle | 32mm |
Spindle speed | 2840rpm |
Air pressure | 0.5-0.8mpa |
power | 4.5kw |
Packing Size | 2600x1250x1650mm |
Machine size | 2500x2600x1600mm |
weight | 1260kg |

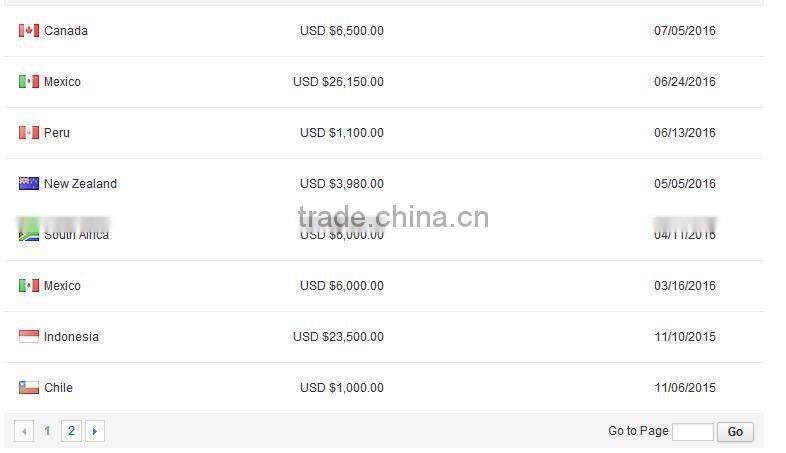

our orders
