Help CenterWood Veneer Slicer
Related Products
Specifications
Veneer Slicer MachinE1.Italy-made professional feeding belt
2.South-korea AUTONICS encoder
3.efficient and reliable
Lengthways veneer slicer HB20V
1.Machine body:
1. Made of cast iron, ensuring work stability
2. Chromed columns, preventing wearing off
3. Well ground guideway , guaranteeing high performance
4.Electric braking systerm independent developed by our engineers,very efficient and reliable
5.Roll feeding style, getting wood moved easily
2.Key parts:
1. Swiss ABB motor or German Siemens motor that meets European latest criteria EFF2, saving power by 13%, enjoying small heating and long life span.
2. Japan-made professional slicing knife, ensuring good quality veneers.
3. Japan-made OMRON sensor to keep reliable performance.
4. AUTONICS encoder imported from South-Korea.
5. Selection of Siemens man-machine interface, convenient operation control.
6. Electric braking system independent developed by our engineers, very efficient and reliable
7. French Schneider electric components
8. Italy-made professional feeding belt.
3.Performance:
1. Veneer output can be indicated by a counter
2. Automatic feeding speed can be adjusted by PLC
3. Veneer thickness can be from 0.5mm to 8mm according to wood harness
4. Veneer thickness error falls in ±0.05mm
5.About 25pcs of veneers per minute(based on 2-meter wood and aotomatic cycle feeding system)
4.Technical specifications:
Name/ model |
HB 20V |
HB 25T |
HB 35T |
Max cut width |
200mm |
250mm |
350mm |
Max cut thickness |
200mm |
250mm |
350mm |
Feeding speed |
58m/min |
58m/min |
60m/min |
Total power |
12kw |
19.6kw |
33.75kw |
Overall dimension |
2420*1350*2000mm |
3360*1630*2000mm |
4600*2000*2000mm |
N.W. |
4000kg |
8500kg |
15000kg |
5.Veneer Processing Flow Chart :
square timber---softening---slicing into veneer---veneer cleaning---veneer drying---veneer clipping---packing

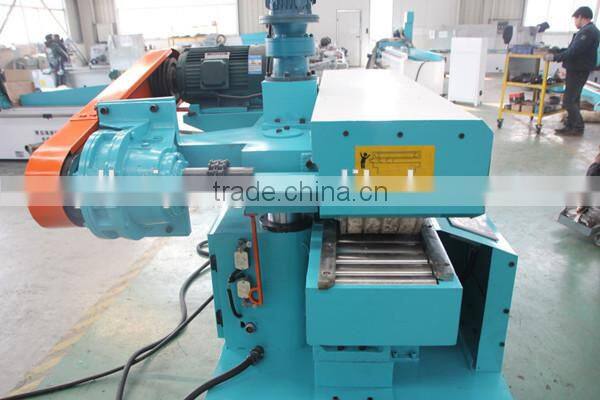

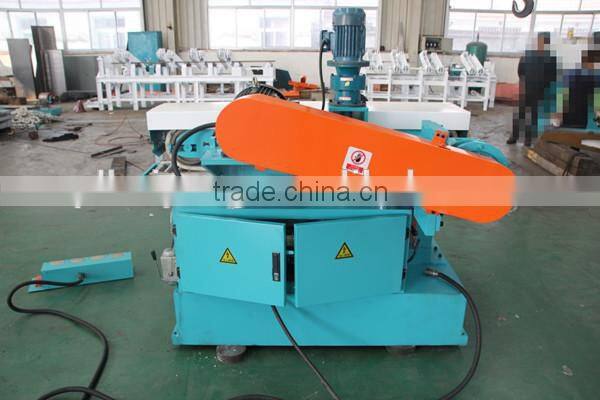

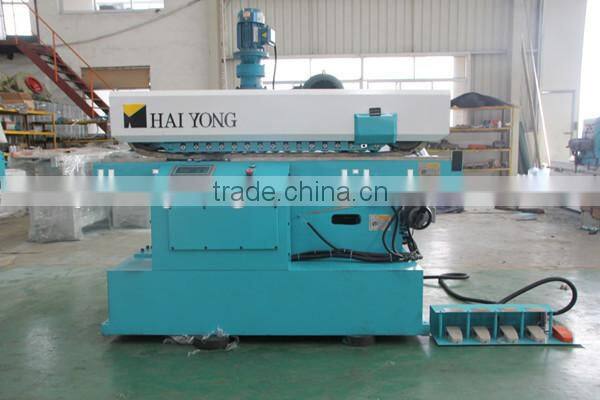

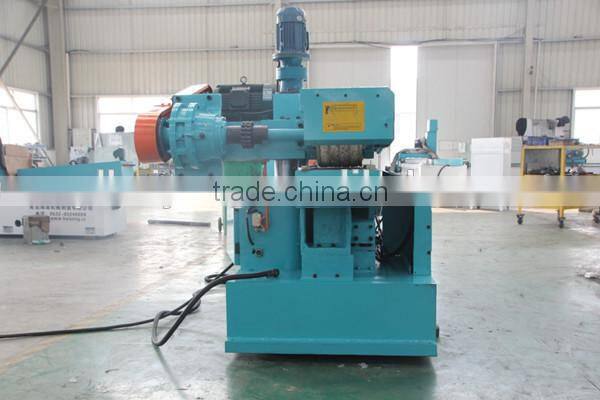

6.Product show:
7. vedio of veneer slicer
1.We can produce machine according to customer's requirement.
2.Machine required for veneer production line:
Wood cooking machine
Veneer slicer
veneer drier machine
veneer cutting machine
knife grinder
Please feel free to contact me if you have any other problems.
Wish you a nice and lovely day:))
