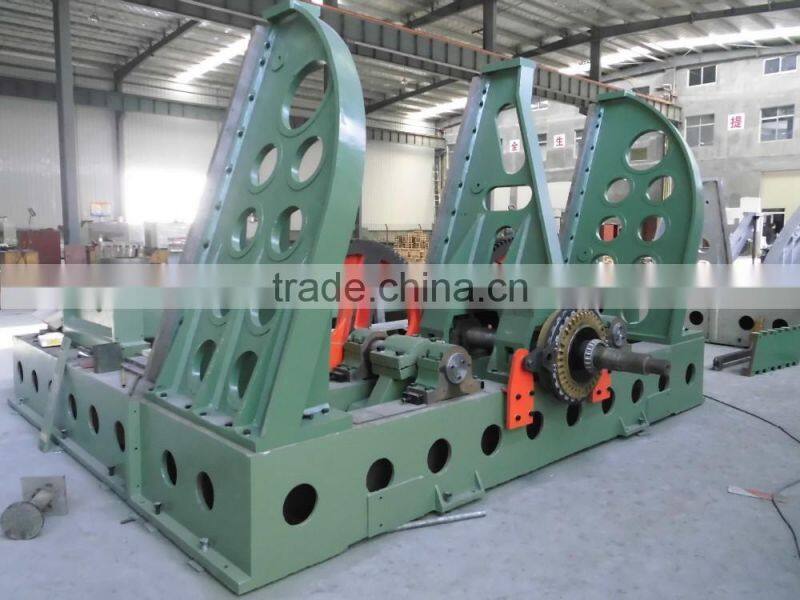

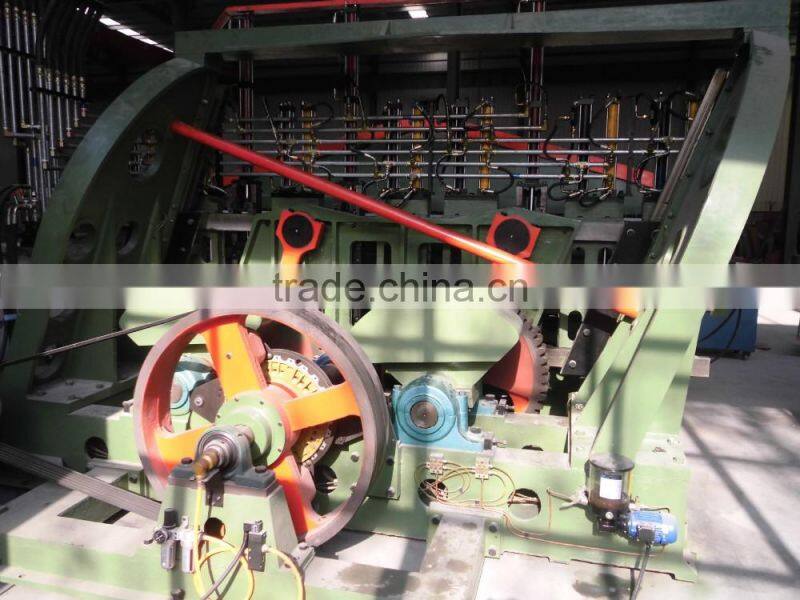

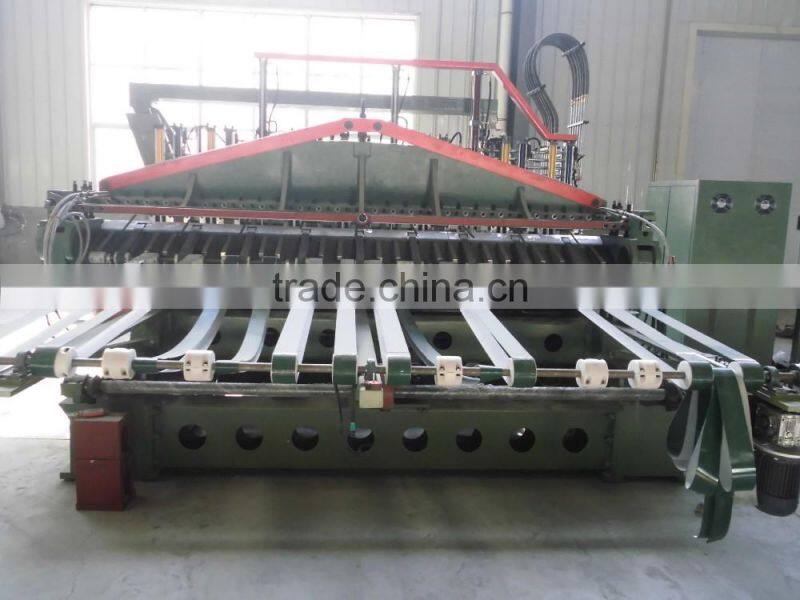

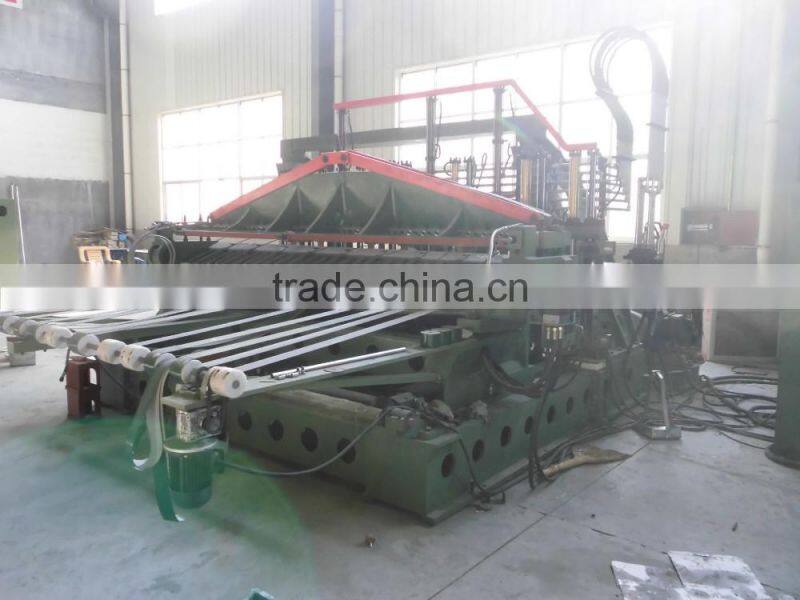

vertical veneer slicer
function of vertical veneer slicer
it is mainly for slicing wood ,engineer wood and other composited board,working efficiency is high ,and veneer thickness is uniform.it is widly adopt in decorative veneer of plywood,furniture,flooring,construction industry and so on.
characteristic of vertical veneer slicer
1Main motor of veneer slicer adopts frequency motor, with famous brand inverter. Energy can be feed back by the special design, and cutting speed improved to be 80pcs/min
2 To guarantee precise veneer thickness, we use ball screw with servo motor. To avoid veneer scratch we used auto blade back system
3 Use hydraulic system, log clamping become more convenient for operator and improves efficiency
4 Control cabinet is combined with electric and hydraulic system, make it easy for single operator
5 Automatic hydraulic blade holding system, and log holder auto turn back system are fitted there, grinding and replacing the blade become so easy and quickly
6 Heating system in blade holder and press bar, avoids stain in the veneer to improve veneer quality
7 Pneumatic brake systems can stop the machine at any required position, and restart promptly. It is convenient for the operator to adjust the log, and safety also guaranteed
specification
| model | bb1332 |
| max allowed wood size | 3000x450x500mm |
| knife size | 3200x200x19mm |
| veneer thickness | 0.2-3mm |
| slicing speed | 80pcs/min |
| wood clamping method | hydraulic control |
| total power | 42.3kw |
| main motor | 30kw |
| hydrauic motor | 5.5kw |
| feed motor | 5.5kw |
| circulating heat water motor | 0.75kw |
| veneer conveyor motor | 0.55kw |
| size | 6800x4600x3700mm |
| weight | 21T |
