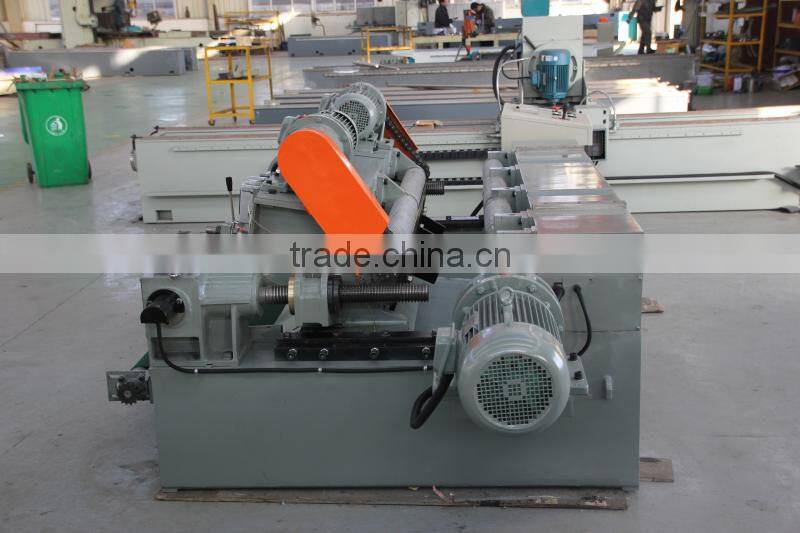

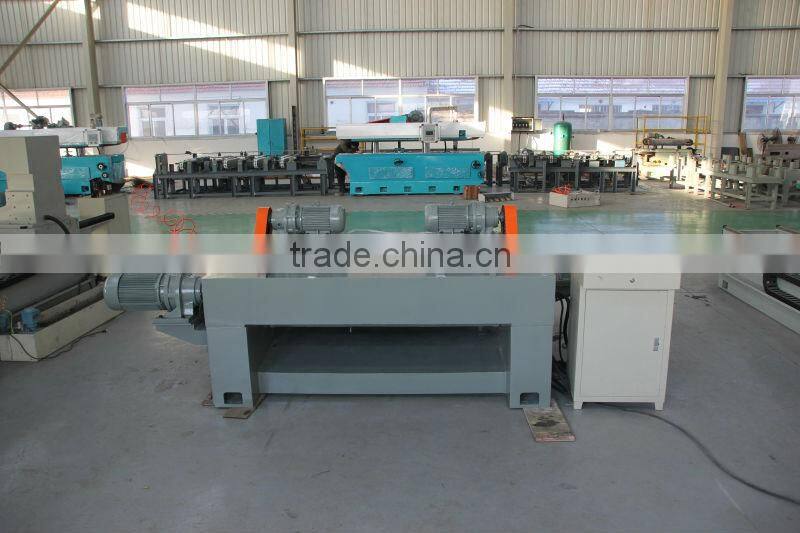

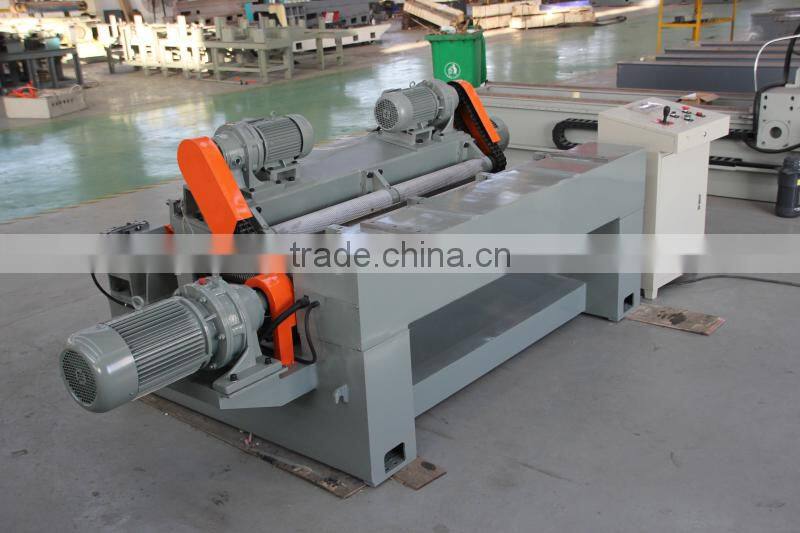

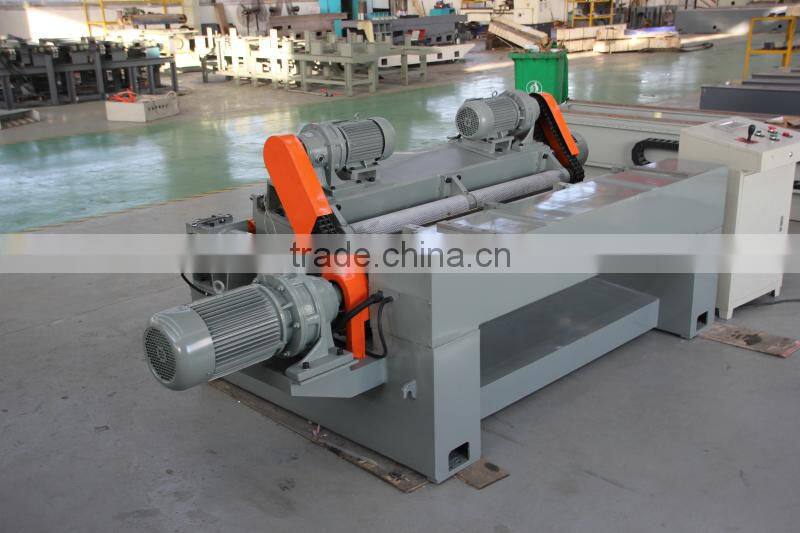

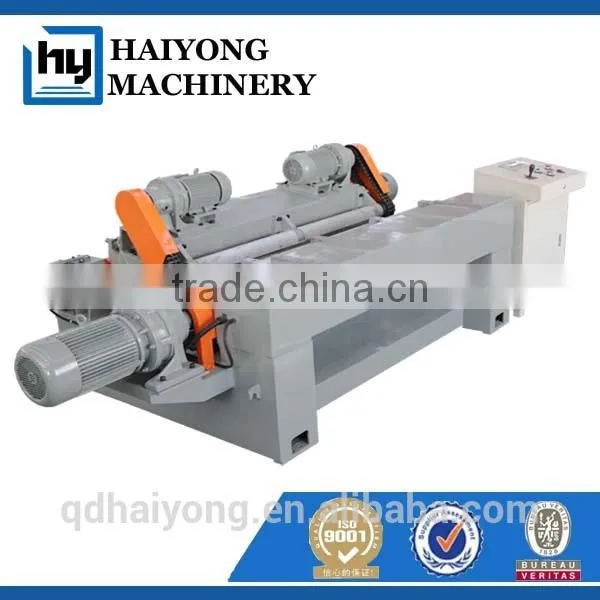

The basic information of the veneer peeler
this machine is widely used in plywood producing field. beacuse this machine can peeling the log which diameter less than
360mm. it can save lots of wood in this way . you can change the system to control the cutting thickness just as your
requirement.it has a high eficiency, and a high rate of wood usage. it is fit for the plywood company for efficient production..
Technical specifications of the veneer peeler
Model | BHX1815 | BHX1822 | BHX1827 |
Max cutting length (mm) | 1350 | 2000 | 2600 |
Max cutting diameter (mm) | Φ300 | Φ300 | Φ300 |
Log-core diameter (mm) | Φ26 | Φ26 | Φ26 |
Cutting thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Veneer output speed (m/min) | 42 | 42 | 42 |
Power (kw) | 19.75 | 21.75 | 25.75 |
Overall dimension (mm) | 3320*1800*1260 | 3700*1800*1490 | 4585*1800*1560 |
N.W (kg) | 3500 | 5500 | 7000 |
Welcome to watch the video
/watch?v=ZjQD9C1eP5Q&feature=youtu.be
