Home > Products > veneer peeling machine > Spindless Rotary Lathe
Spindless Rotary Lathe
- QINGDAO
You May Like
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | HAIYONG | Model Number | BXQ1822 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Spindless Rotary Lathe1.High rate of wood usage
2.CNC Non-chuck rotary lathe
3.Cutting diameter 360mm
Woodworking Rotary Lathe
Our rotary lathe is the mian machine in the wood-working industy .It can peeling less than 360mm log-core.The same log-core can be changed between knives by picture guide system.It can peel table and core plate.It has a high rate of wood usage.It is fit for the plywood company for efficient producing.

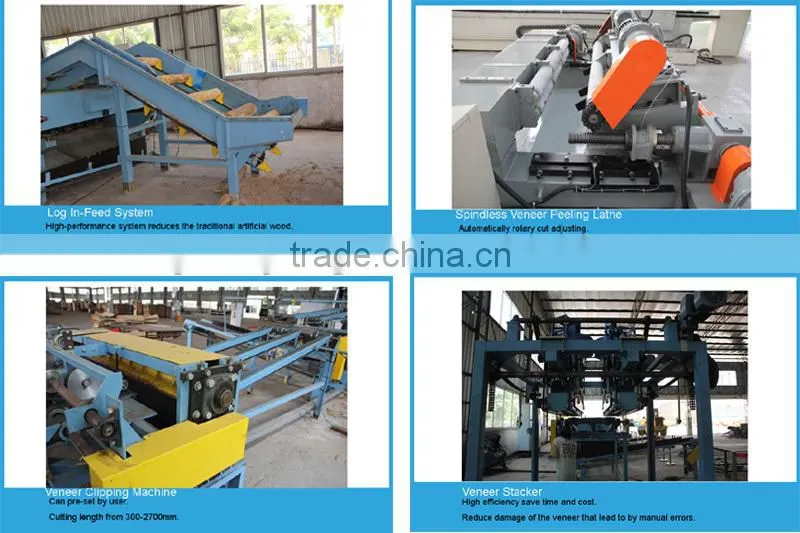

We can provide machines and techologies for plywood production,including log in-feed system,spindleless veneer peeling lathe,veneer clipper and veneer staccker.
Technical specifications
Model | HX1815 | HX1822 | HX1827 |
Max cutting length (mm) | 1350 | 2000 | 2600 |
Max cutting diameter (mm) | Φ300 | Φ300 | Φ300 |
Log-core diameter (mm) | Φ26 | Φ26 | Φ26 |
Cutting thickness (mm) | 0.8-3.0 | 0.8-3.0 | 0.8-3.0 |
Veneer output speed (m/min) | 42 | 42 | 42 |
Power (kw) | 19.75 | 21.75 | 25.75 |
Overall dimension (mm) | 3320*1800*1260 | 3700*1800*1490 | 4585*1800*1560 |
N.W (kg) | 3500 | 5500 | 7000 |
Product show
video of our rotary lathe:
/watch?v=ZjQD9C1eP5Q&feature=youtu.be
plywood production line

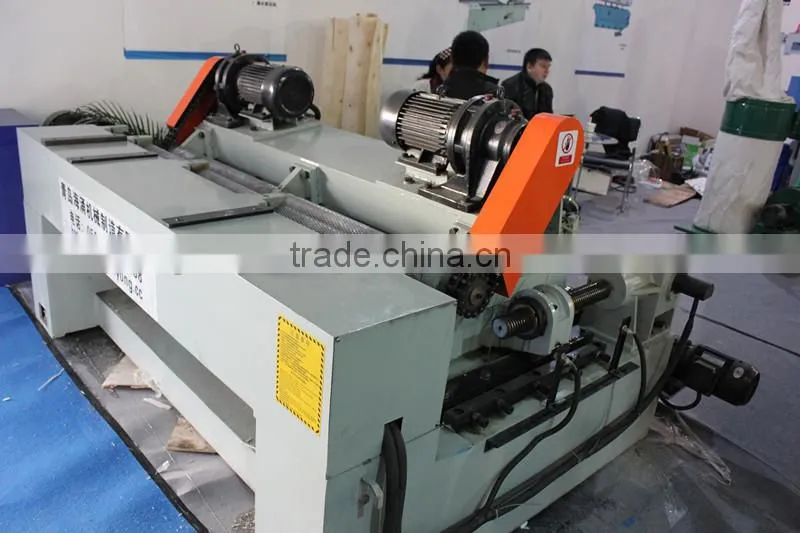

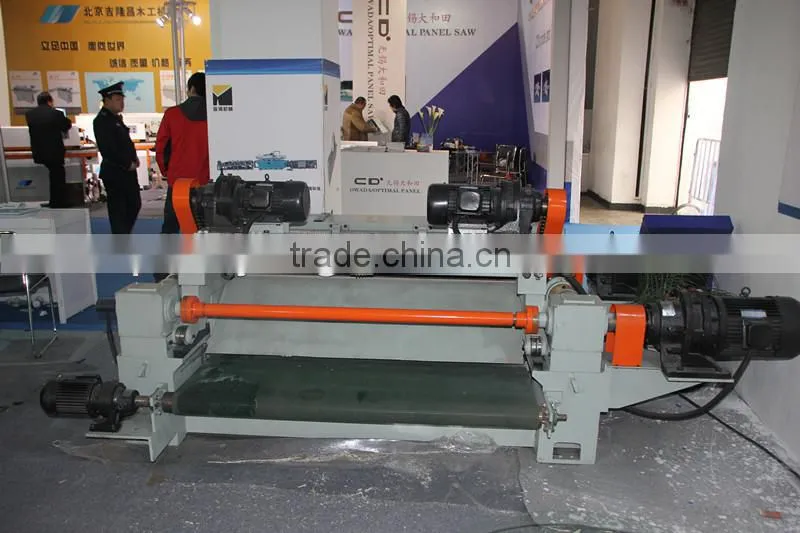

Exhibition:
Qingdao Haiyong Machinery Manufacturing Co., Ltd. is a manufacturer of wood –working machinery with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We can produce machine according to customer's requirement.

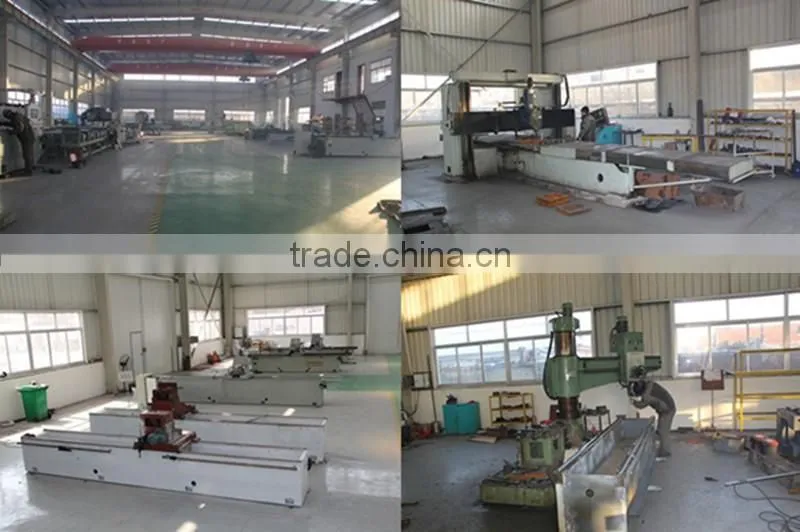

workshop
Contact information:
Contact Us
- Qingdao Haiyong Machinery Manufacturing Co., Ltd.
- Contact namelawrence li Chat Now
- Phone86-532-83246888
- AddressQingdao Haiyong Machinery Manufacturing Co., LTD, Yujiacun Village, JIaobei Town, Jiaozhou, Qingdao, Shandong Province, China., Qingdao, Shandong
