rotary peeling lathe
The basic information of the veneer rotary peeling lathe
this machine is widely used in plywood producing field. beacuse this machine can peeling the log which diameter less
than 360mm. it can save lots of wood in this way . you can change the system to control the cutting thickness just as
your requirement.it has a high eficiency, and a high rate of wood usage. it is fit for the plywood company for efficient
producing.
Technical specifications of the veneer rptary peeling lathe
Model |
BHX1815 |
BHX1822 |
BHX1827 |
Max cutting length (mm) |
1350 |
2000 |
2600 |
Max cutting diameter (mm) |
Φ300 |
Φ300 |
Φ300 |
Log-core diameter (mm) |
Φ26 |
Φ26 |
Φ26 |
Cutting thickness (mm) |
0.8-3.0 |
0.8-3.0 |
0.8-3.0 |
Veneer output speed (m/min) |
42 |
42 |
42 |
Power (kw) |
19.75 |
21.75 |
25.75 |
Overall dimension (mm) |
3320*1800*1260 |
3700*1800*1490 |
4585*1800*1560 |
N.W (kg) |
3500 |
5500 |
7000 |
The link of the video about the veneer rotary peeling line
/watch?v=ZjQD9C1eP5Q&feature=youtu.be

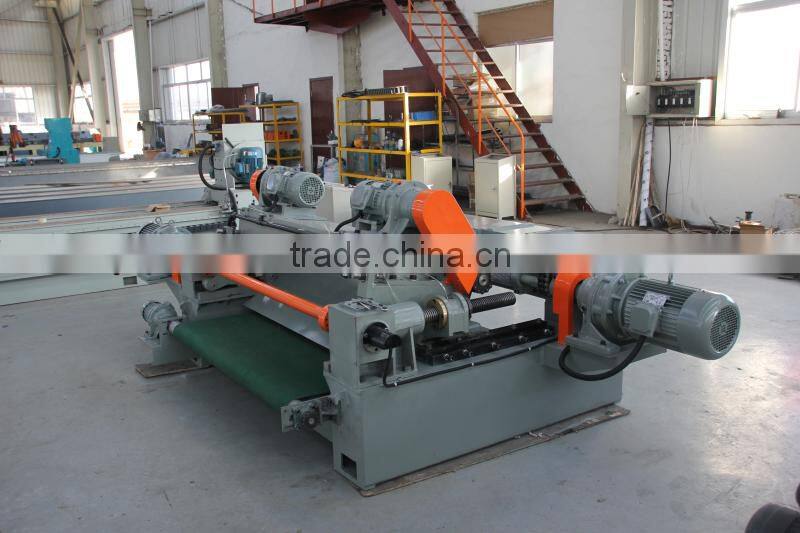

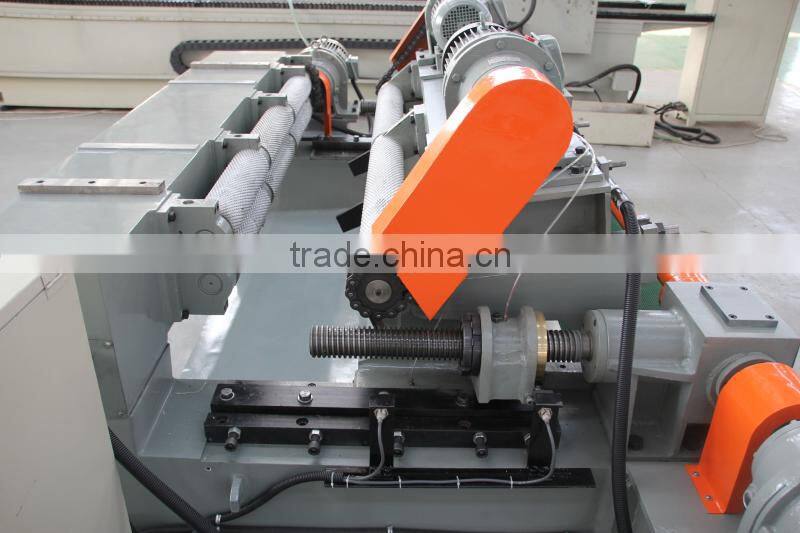

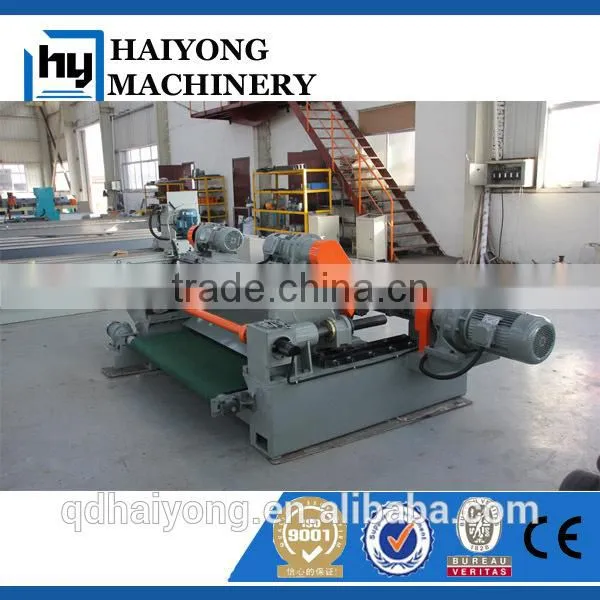

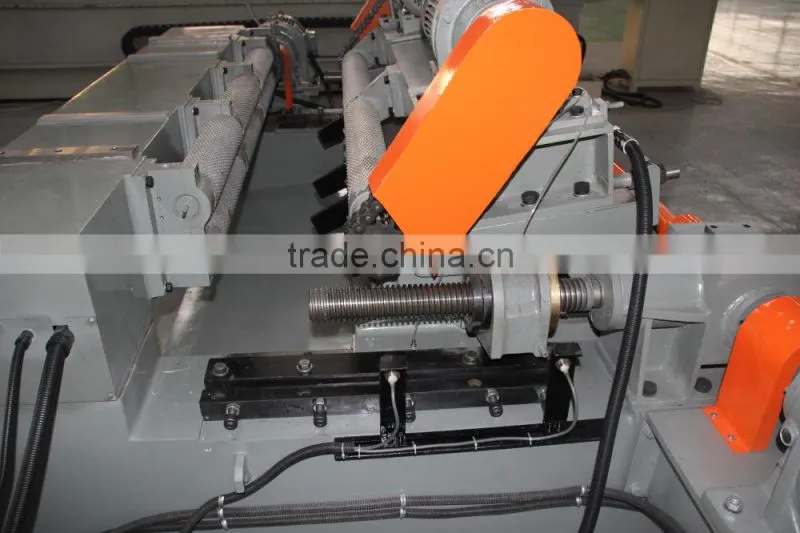

the picture of the veneer rotary peeling line
