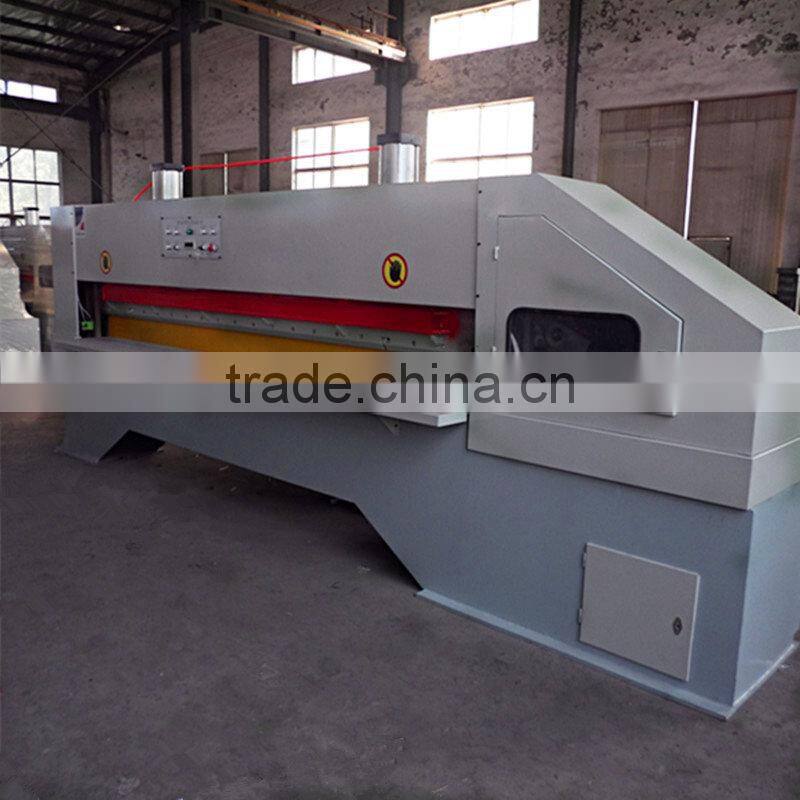

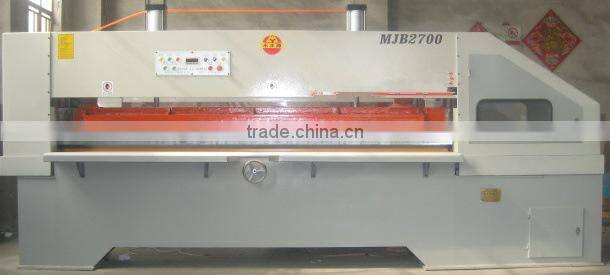

Woodworking Precision Clipping Machine
- QINGDAO
- T/T Money Gram
You May Like
Product Details
| Condition | New | Type | Other, veneeer guillotine | |
| Place of Origin | Shandong, China | Brand Name | QINGDAO | |
| Model Number | MJB2700 | Power(W) | 4kw | |
| Dimension(L*W*H) | 4100X1200X1800MM | Weight | 3000KG | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
clipping machine
Brief introduction of characteristics:
The pushing device adopts the advanced machine guide-way structure with precise input and positioning, which solves the hard problem of non-uniform cutting.
No contamination to the material, save cost and convenient maintenance.
Novelty structure, advanced and rational design is easy and simple to handle.
Both knife rest and press plate adopt cast iron with good stability.
The feeding attachment particularly fit for cutting the edge sealing wood strip.
Ensure the safety of your transaction Receive assistance throughout the entire process
Technical specification:
Model | MJB1500 | MJB2700 | MJB3200 | MJB4200 |
Max cutting length | 1500 | 2700 | 3200 | 4200 |
Max cutting thickness | 50 | 50 | 50 | 50 |
Install power | 2.57 | 3.37 | 3.37 | 5.87 |
Pressure of compressed capacity | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 | 0.4-0.7 |
Overall dimension | 2900*1200*1800 | 4100*1200*1800 | 4600*1200*1800 | 5700*1200*1800 |
Net weight | 2300 | 3000 | 3500 | 4300 |
