woodworking hydraulic veneer guillotine
- 1 Set / Sets per Month
- QINGDAO
- Guangzhou Industrial-Grade High Quality Circular Chain Saws, Electric Lithium Cutting Machine, Welding Machines
- Log square saw log push table saw machine band saw infrared edge saw double end head saw
- Sawdust Dryer Machine
- PCD Saw Blades for Woodworking
- wood log cutting machine industrial table saw
- Woodworking wood cutting machine sliding table panel saw wood saw machines
Product Details
Condition: | New | Type: | Other, guillotine | Use: | Woodworking |
Style: | Vertical | Place of Origin: | Shandong, China | Brand Name: | HAIYONG |
Model Number: | MQJ160 | Usage: | cut paper or wood | Voltage: | 380v |
Power(W): | 4000 | Dimension(L*W*H): | 2470x1450x1600mm | Weight: | 2350kg |
Certification: | ISO9001 | Warranty: | one year | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
we use advanced imported bladeto improve working efficiencyAPPLICATION
Thin wood shearing machine series adopts worldwide advanced technology and is manufactured with fine process and can be used in the superimposition processing of the thin wood, sheet paper, etc. and is a necessary equipment for the manufactures of three-ply board, multiplayer board, dense board, lumbercore plywood and the furniture.
This machine is well sold in more than 20 provinces and cities and also exported to Southeast Asia and other countries and is very popular among the users.
This machine adopts electromagnetic braking three-phase asynchronous motor with smooth performance and sensitive and stable braking velocity.
This machine adopts advanced photoelectric protector and the operation is even more safe and reliable.
This feeding system of this machine has two operation modes of manual and automatic feeding for the customer option. The automatic feed adopts international advanced digital counter to make the size more precise and the quality more stable.

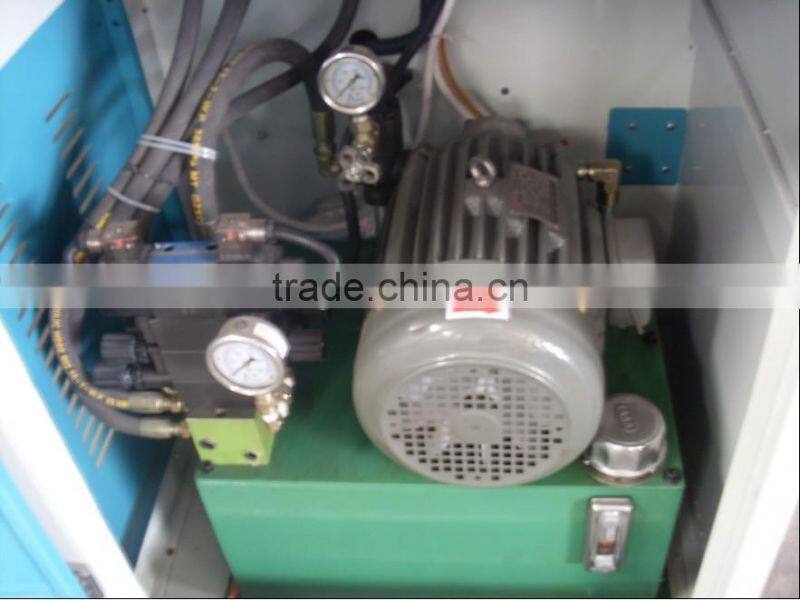

The pressing system of this machine adopts dual modes of hydraulic and air-pressure for the user's option.
Brief introduction of characteristics

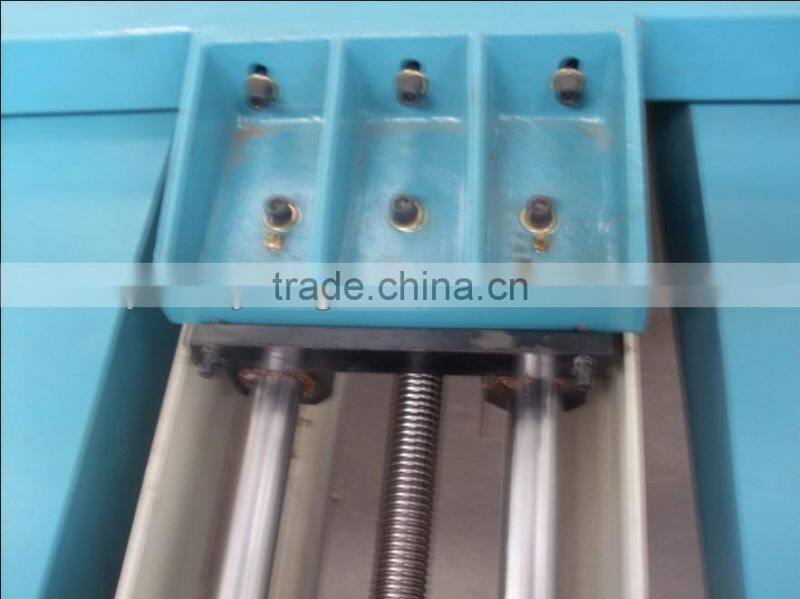

The pushing device adopts the advanced machine guide-way structure with precise input and positioning, which solves the hard problem of non-uniform cutting.
No contamination to the material, save cost and convenient maintenance.
Novelty structure, advanced and rational design is easy and simple to handle.
Both knife rest and press plate adopt cast iron with good stability.
The feeding attachment particularly fit for cutting the edge sealing wood strip.
Ensure the safety of your transaction Receive assistance throughout the entire process
Technical specification:
Model | MQJ160 | MQJ260 | MQJ310 | MQJ350 |
Max cutting length | 1600 | 2600 | 3100 | 3500 |
Max cutting thickness | 50 | 50 | 50 | 50 |
Oil pump power | 4 | 4 | 4 | 4 |
Feeding motor power | 0.1 | 0.18 | 0.18 | 0.18 |
Max working pressure | 10 | 10 | 10 | 10 |
Overall dimension | 2470*1450*1600 | 3680*1680*1600 | 4180*1680*1600 | 4580*1680*1600 |
Net weight | 2000 | 2350 | 2650 | 3300 |
