Hydraulic Pressure Thin Wood Shearing Machine MQJ310

Specifications

Adopting worldside advanced technology
Manufactured with fine process

Usage:
Thin wood shearing machine series adopts worldwide advanced technology and is manufactured with fine process and can be used in the superimposition processing of the thin wood, sheet paper, etc. and is a necessary equipment for the manufactures of three-ply board, multiplayer board, dense board, lumbercore plywood and the furniture.
This machine is well sold in more than 20 provinces and cities and also exported to Southeast Asia and other countries and is very popular among the users.
This machine adopts electromagnetic braking three-phase asynchronous motor with smooth performance and sensitive and stable braking velocity.
This machine adopts advanced photoelectric protector and the operation is even more safe and reliable.
This feeding system of this machine has two operation modes of manual and automatic feeding for the customer option. The automatic feed adopts international advanced digital counter to make the size more precise and the quality more stable.

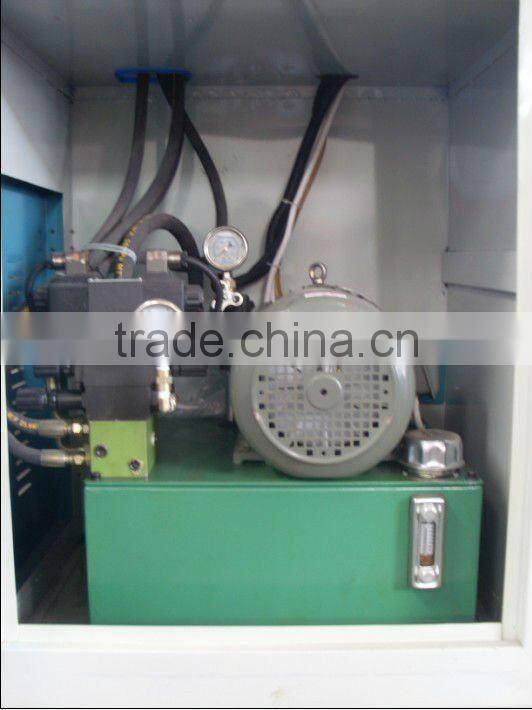

The pressing system of this machine adopts dual modes of hydraulic and air-pressure for the user's option.



Briefintroductionofcharacteristics:

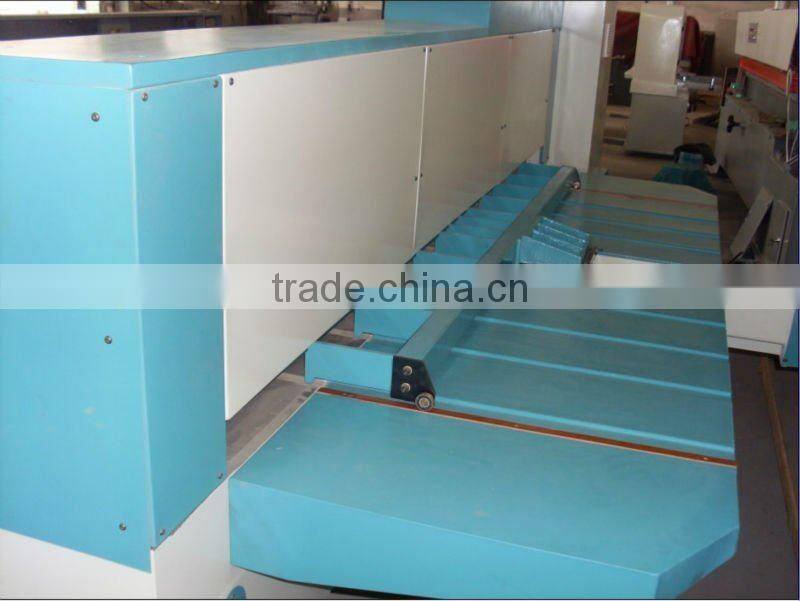

The pushing device adopts the advanced machine guide-way structure with precise input and positioning, which solves the hard problem of non-uniform cutting.
No contamination to the material, save cost and convenient maintenance.
Novelty structure, advanced and rational design is easy and simple to handle.
Both knife rest and press plate adopt cast iron with good stability.
The feeding attachment particularly fit for cutting the edge sealing wood strip.
Ensure the safety of your transaction Receive assistance throughout the entire process



Technical specification:



Model	MQJ160	MQJ260	MQJ310	MQJ350
Max cutting length	1600	2600	3100	3500
Max cutting thickness	50	50	50	50
Oil pump power	4	4	4	4
Feeding motor power	0.1	0.18	0.18	0.18
Max working pressure	10	10	10	10
Overall dimension	2470*1450*1600	3680*1680*1600	4180*1680*1600	4580*1680*1600
Net weight	2000	2350	2650	3300
