Home > Manufacturing & Processing Machinery > Woodworking Machinery > Other Woodworking Machinery > Automatic Veneer Stacker
US$ 28,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HAIYONG
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Shandong, China
Brand Name
HAIYONG
Model Number
HDD4-4
After-sales Service Provided
Engineers available to service machinery overseas
electric stacker
our machine adopt the advanced technical in the world. we use the chain and motor drive the platen, not use the hydraulic systerm to up and down the platen.
specification of veneer stacker
| model | HDD8-4 | HDD6-3 | HDD4-8 | HDD4-4 |
| stacking size | 8x4 | 6x3 | 4x8 | 4x4 |
| max working width | 2600mm | 2200mm | 1350mm | 1350mm |
| min working width | 2200mm | 2000mm | 800mm | 1100mm |
| veneer thickness | 1.0-2.2mm | 1.0-2.2mm | 1.0-2.2mm | 1.0-2.2mm |
| max speed | 90m/min | 90m/min | 90m/min | 90m/min |
| max stack height | 1000mm | 1000mm | 1000mm | 1000mm |
| motor | 24kw | 24kw | 20.95kw | 13.6kw |
| dimension (mm) | 9000x3100x3510 | 8800x2500x3510 | 9800x2400x3080 | 8600x2400x3080 |
| weight (kg) | 4700kg | 4000kg | 4800kg | 2500kg |

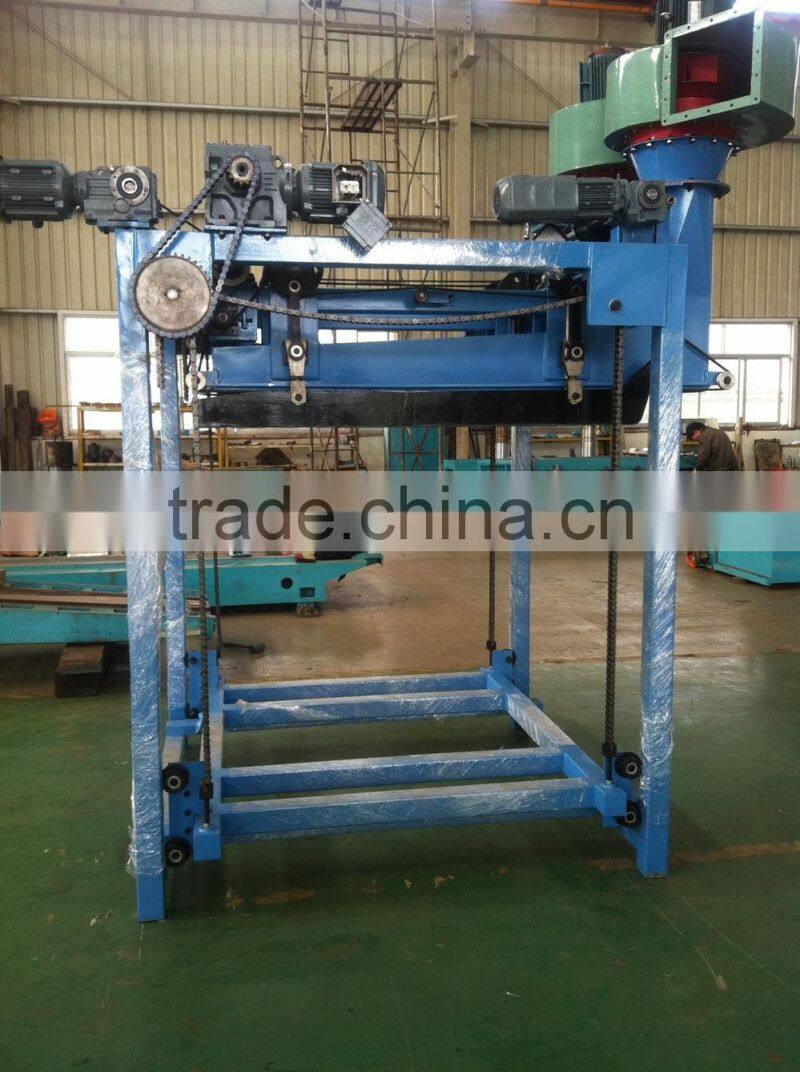

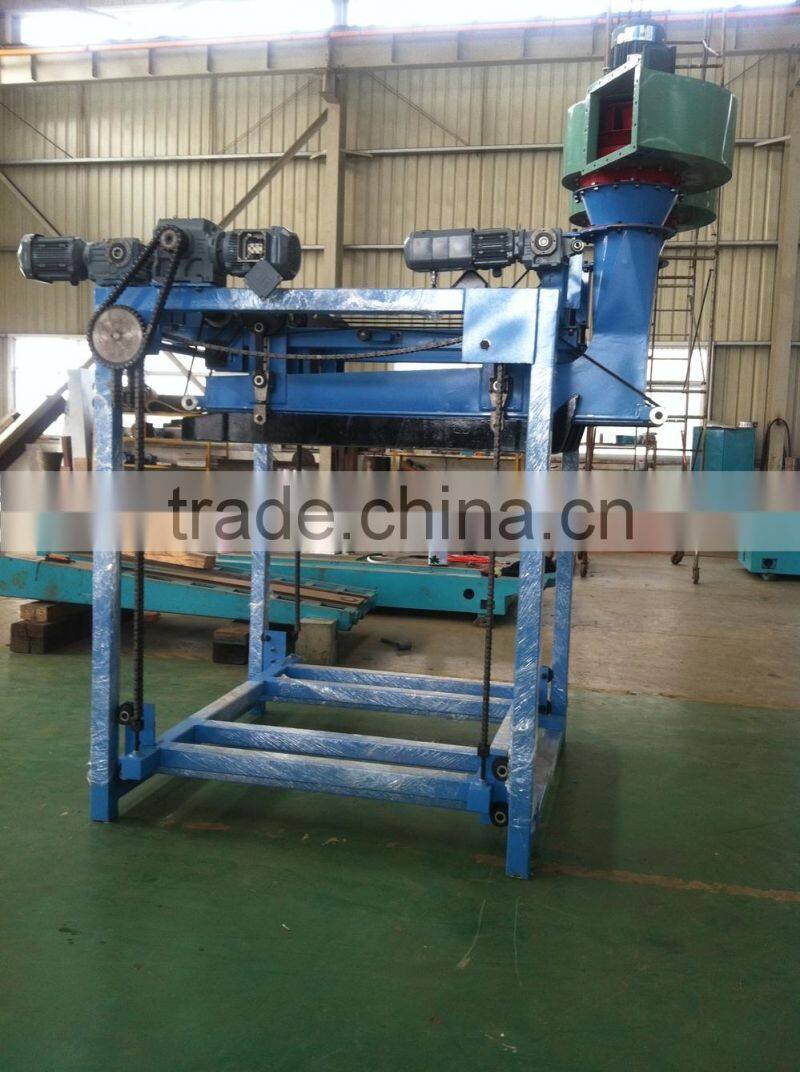

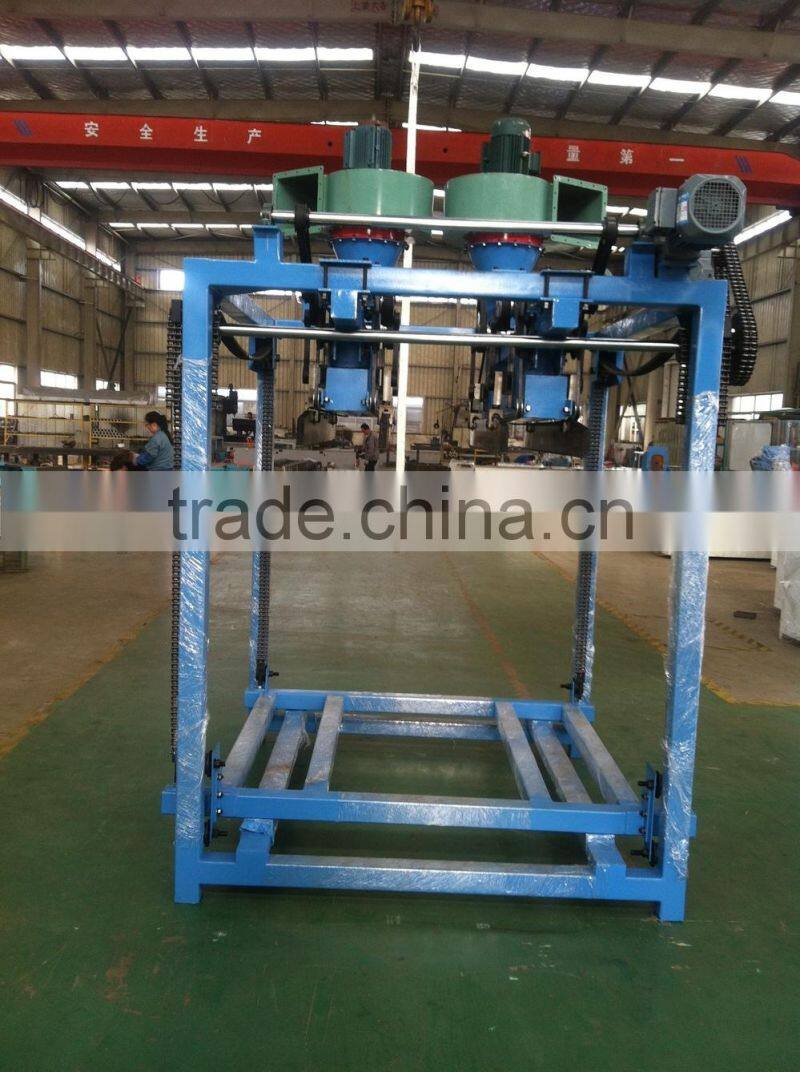

picture of the electric stacker
