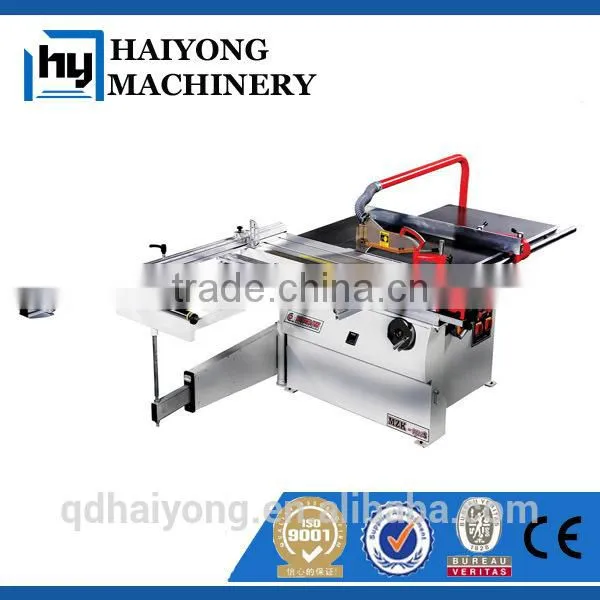

CE Automatic Wood Cutting Table Saw

Name: CE Automatic Wood Cutting Table Saw
Brand: MIZRAK
SKU: 141508242
Availability: InStock

Qingdao Haiyong Machinery Manufacturing Co., Ltd.

US$ 4,000 - 4,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Table Panel Saw

Use:

Woodworking

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Table Panel Saw

Use Woodworking

Style Horizontal

Place of Origin Shandong, China

Brand Name MIZRAK

Model Number MZK 3200 SX

Usage Wood working

Voltage 220V/380V

Power(W) 4kw

Dimension(L*W*H) 3800x800x865

Weight 800KG

Certification CE/ISO

Warranty 1year

After-sales Service Provided Overseas service center available

wood cutting table saw

specification

Max. Diameter Of Outside And Inside Saw	min Ø250x30 max Ø300x30
Max. Cutting Dept (90º)	100 mm
Max. Cutting Dept (45º)	75 mm
Noise Level	80 db.
Circular Saw R.P.M.	4750-5250 d/dk
Power Oq Saw Motor	4 kw 5.5 hp 60 Hz
Table Dimensions	620x880 mm
Measure Of Disc Addet Iron Disc	690x350 mm
Measure Of Disc Back Iron Disc	700x880 mm
Measure Of Shield On Table	1200 mm
Measure Of Wandering Sledge	1600 mm
Movement Of Wandering Sledge	1600 mm
Angle Of Wandering Sledge	0-45
Carriage Dimension	375 mm
Measure Of Shield On Carriage	1950 mm
Angle Of Shield On Carriage	Ø-45
Supporting Of Measure Shield On Carriage	0-3000 mm
Inside And Outside Diameter Of Stripe Saw	Ø125 x 20 mm
Inside And Outside Diameter Of Stripe Saw (Jumping)	Ø200 x Ø30 mm
Speed Of Stripe Saw R.P.M.	6800 d/dk
Power Of Stripe Saw Motor (Jumping)	0.75 kw 1hp 50-60 hz
Power Of Stripe Saw Motor	0.75 Kw 1 hp 50-60 hz
Height Of The Machine	845
The Height Of The Vacuum Pipe Fort Dust	1400
Net Weight	685 kg
