Cutting Panel Saw1.CE standards
2.Double saw blades
3.Manual saw up&down&tilting
4.Superior performance

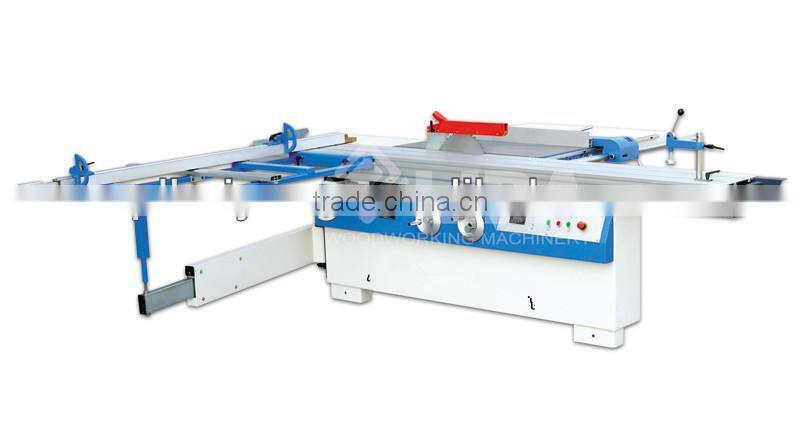

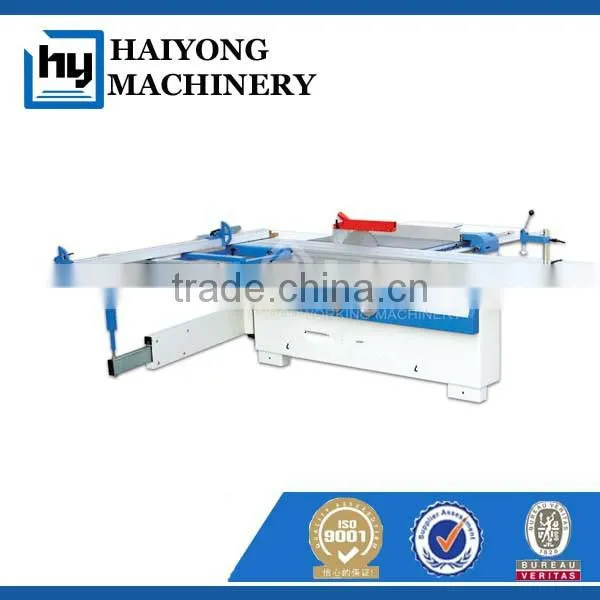

Cutting Panel Saw MJ6132A
Feature:
1.New design for wood panel sizing saw.3200mm length sliding table, 360mm width. featured linear guide system.which making cutting smooth and high accuracy
2.It is standard powered,5.5kw for main saw, 1.1kw motor separately for scoring saw.
3.The saw lift,down operated manually, same as the saw tilting.
4.Whole machine is well powdered, guarantee nice looking and long service time.
5.Overhead crown guard optional fitted, can make efficient dust extraction and enhanced operator safety
6.More than 30 years experience,understand customer better.
Our wood cutting table saw machine advantages:
1).Apply to all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.
2). Movable table guide track is plating chromium steel balls structure, exact and durable.
3). Made of high strength extruded aluminum alloy, movable table is high in strength and wont bend.
4).With oxidation treatment, movable table surface is beautiful and hardwearing.
5).Tilt angles of main and scoring saw blades are displayed directly by precision inclinometer.
6).Main and scoring saw blade’s tilling and moving is electrical control PLC system and digital indicator.
Dimension of sliding table | 3200*360mm |
Gross cut capacity | 3200mm |
Width of cut between saw blade and rip fence | 1250mm |
Saw blade diameter | 300mm |
Height of cut (diameter:300mm) | 80mm |
Speed of main saw spindle | 4500/6000rpm |
Main spindle diameter | 30mm |
Tilting saw blade | 45 tilting or 90 tilting |
Main motor | 5.5kw |
Scoring saw blade diameter | 120mm |
Speed of scoring saw blade | 8000r/min |
Scoring spindle diameter | 20mm |
Scoring motor | 1.1kw |
Net weight | 800kg |
Gross weight (with wooden package) | 950kg |
Overall dimensions | 3200x3150x900mm |
|

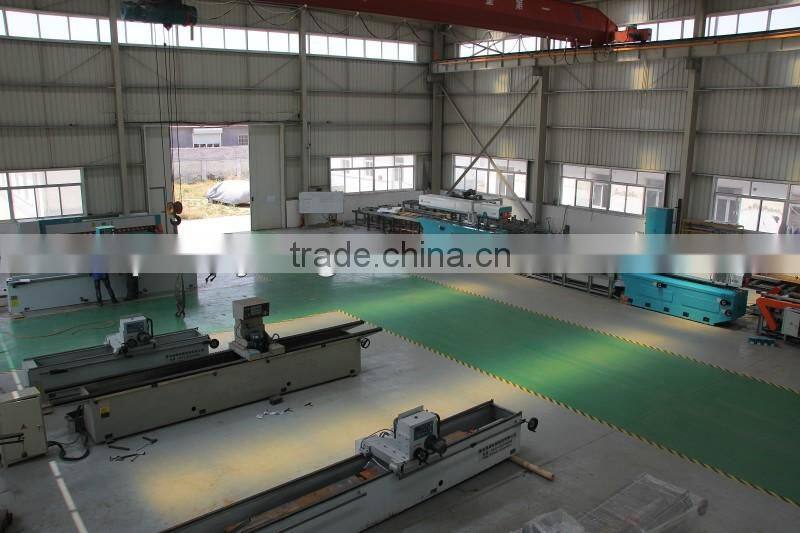

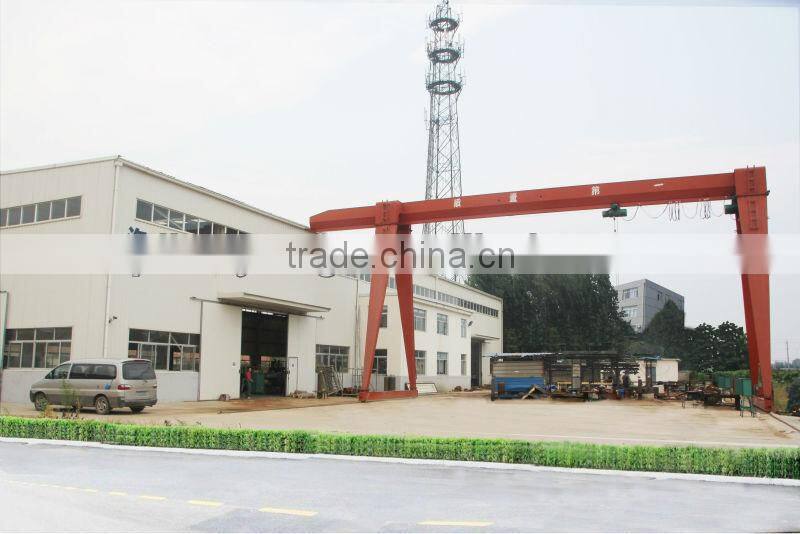

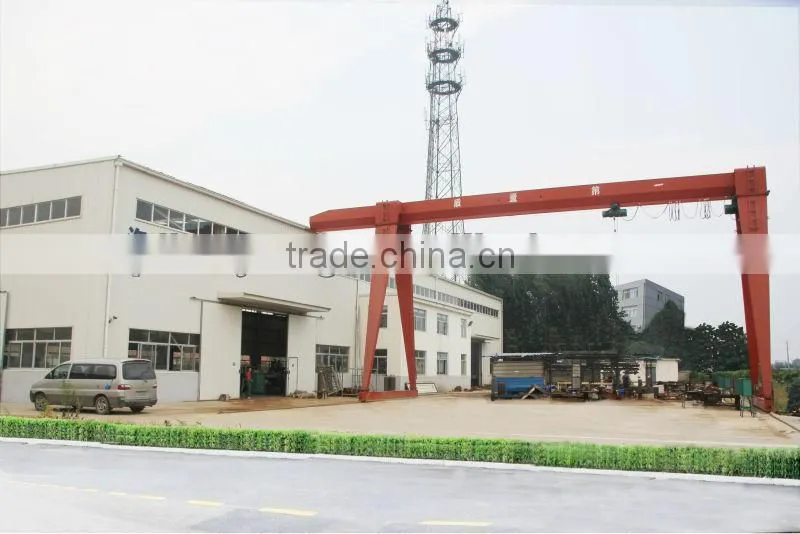

QINGDAO HAIYONG MACHINERY MANUFACTURING CO, LTD is a woodworking machinemanufacturing
company established in 2000 which has rich experience in the field of precisionmachining. We mainly
produce veneer slice, rotary lathe, knife grinder, edge banding machine, veneer shearing machine,hot
press machine etc. Our company emphasize the high quality of products. We introduce equipments
like bedway grinder,CNC boring and miling machine etc and parts from domestic and international famous
brands to make the main parts of our products reaching the international advanced level. Our company
obtained the international quality certificate of IS09001 in 2012 and integrity company certificate of alibaba
in 2013. Our products sell to American, Russia, Peru, Dubai, India, Iran, Mexico. Focused on Customers is
our service tenet for years.We provide good after sale service for customers. We welcome new and old
customers from all walks of life to contact us for future business relationships and achieving mutual success!
