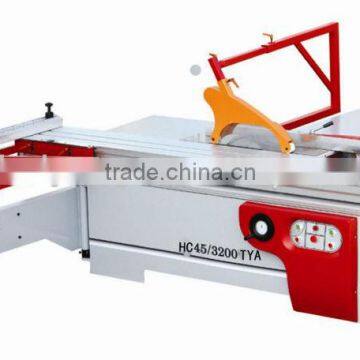

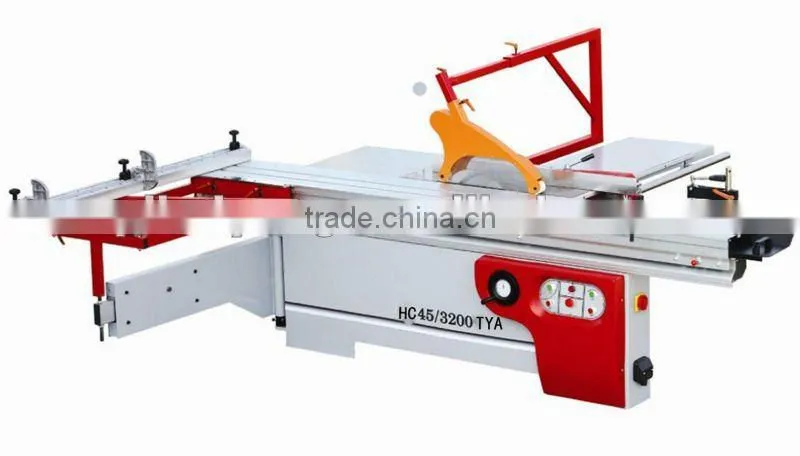

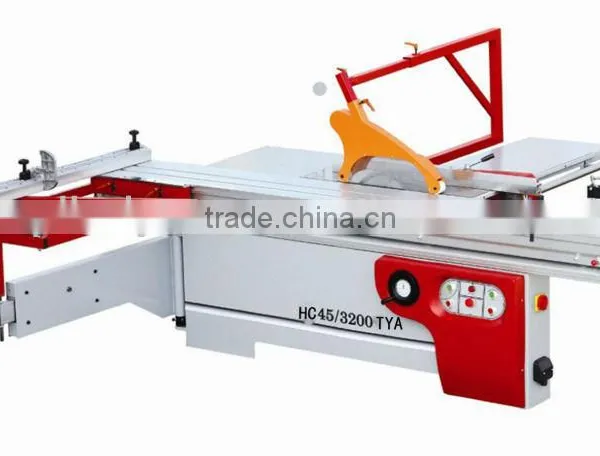

Woodworking Panel Saw HC 45/3200TYA

Specifications

* CE & CSA
* Motorizing up/down
* 5.5Kw motor, 350mm, Freud / AKE
* Heavy duty dust hood

Key Advantages

• 3200mm length sliding table, 410mm width.
• Machine body is made by Auto laser cutting CNC.
• Motorizing up/down is optional
• with Freud saw blade or AKE optional
• with type A dust hood - safe and efficient dust collection
• The internal structure with guide made in Germany
• Rip fence can slightly adjust
• CE standard / adapted from German Altendorf / SCM Italy

Function description:



1.Fit for processing various panel with similar rigidity, such as consistent plate, flake board, manmade plate, ABS  plate,   PVC plate, organic glass plate and solid wood;

 2. Guide rail of mobile workbench is made of imported chrome plated round stick with high rating accuracy;

 3. Surface of mobile workbench is made of high intensity extruding aluminum alloy with high intensity and no deformable performance;
4.Surface of mobile workbench passes treatment of oxidation, beautiful and wearable;

5. Obliquity of principle saw blade and scoring saw blade is directly displayed by precise inclinometer.





Technical specification:

Model	45/3200TYA
Dimension of sliding table	3200*370mm
Gross cut capacity	3200mm
Width of cut between saw blade and rip fence	1250mm
Saw blade diameter	300mm(φ250-φ350)
Height of cut	120mm
Height of cut with saw blade at 45°	55mm
Speed of main saw spindle	4000/6000rpm
Main spindle diameter	30mm
Tiling saw blade	0-45°
Main motor	5.5kw
Scoring saw blade diameter	120mm
Speed of scoring saw blade	8000r/min
Scoring spindle diameter	20mm
Scoring motor	0.75kw
Net weight	720kg
Gross weight	870kg
Overall dimension	3500*3350*1000mm
