tool sharpener
The advantage of the machine
It can finish grinding the side edge and end edge of the Milling knife within few minutes
Add the Z axis lift accessory , making the machine getting 8 direction variance

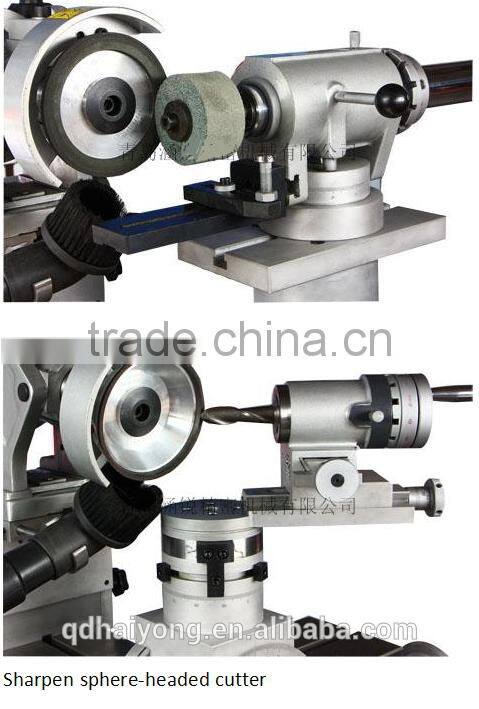

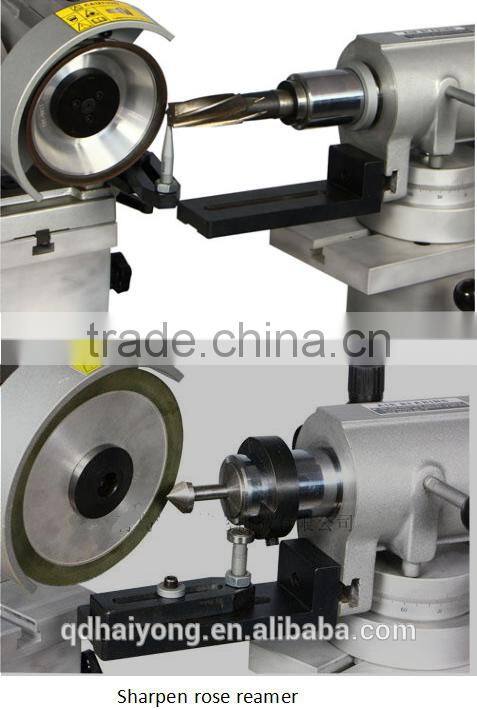

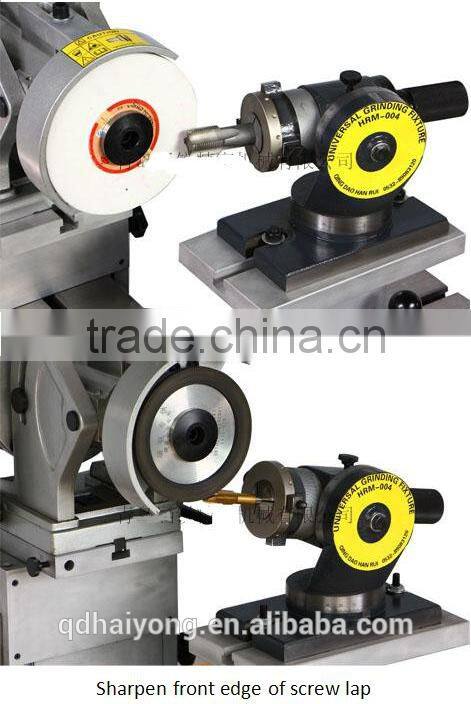

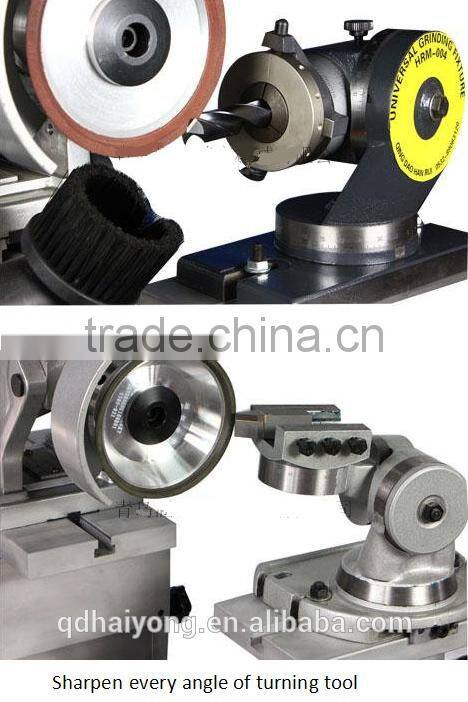

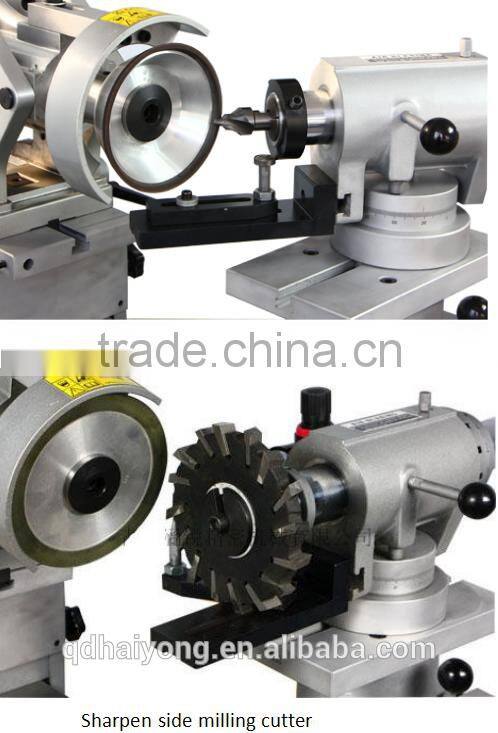

It can grind the following knife in short time : end mill,round milling cutter,drill,screw lap ,step drill,ball cutter,round blade , knife, arc-lathe cutters, reamer,rose reamer,saw blade ,side milling cutter
The Air bearing 360 rotating base,it can grind any angle of cutter.
rotation precision is 0.005mm, due to the high precision
suspension bearing work through high pressure gas not have any machine error. The axis sleeve and principal axis of the air bearing is made of stainless steel and hard chromium plating material
The angel of the grinding motor can be adjust,the cutter blade can be continuously adjustable.
specification of the machine
travel of spindle | 266mm(10.5") |
Working cutter range | Handle :50mm(2") outside diameter:248mm(9.8") |
T-slot size | 20×12.7×17 |
Working table moving accuracy | 0.02mm |
travel of X axis | 152mm(6") |
travel of Y axis | 75mm(3") |
travel of Z axis | 419mm×144mm |
Y working table size | 419mm×144mm |
Grinding head moving | 225mm |
Grinding head angle | +35°/-7° |
Grinding head horizontal rotation angle | 180° |
air bearing horizontal rotation angle | 360° |
Grinding wheel | hole diameter:32mm |
Motor | 220V/50HZ/750W |
Weight | 126Kg |
