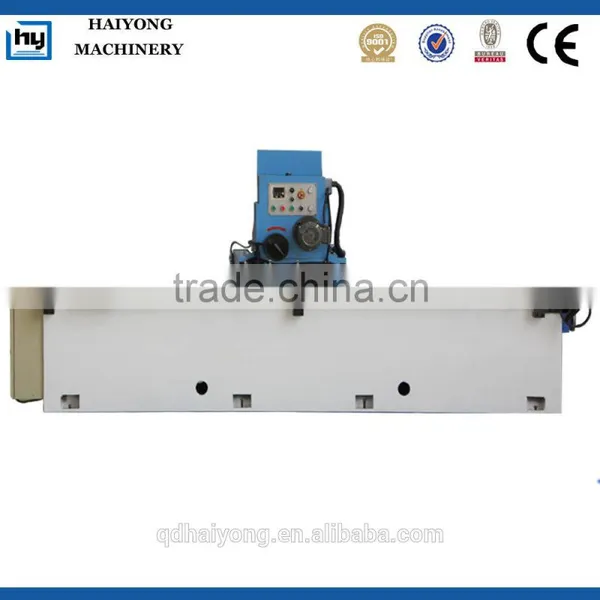

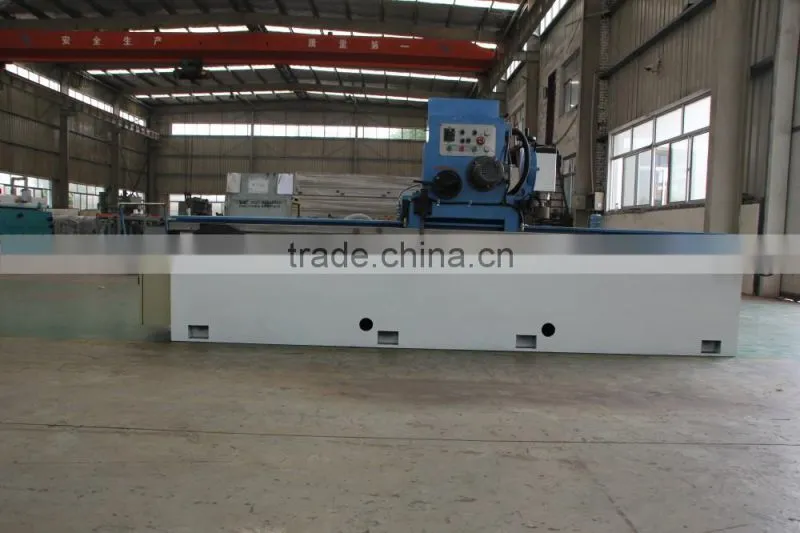

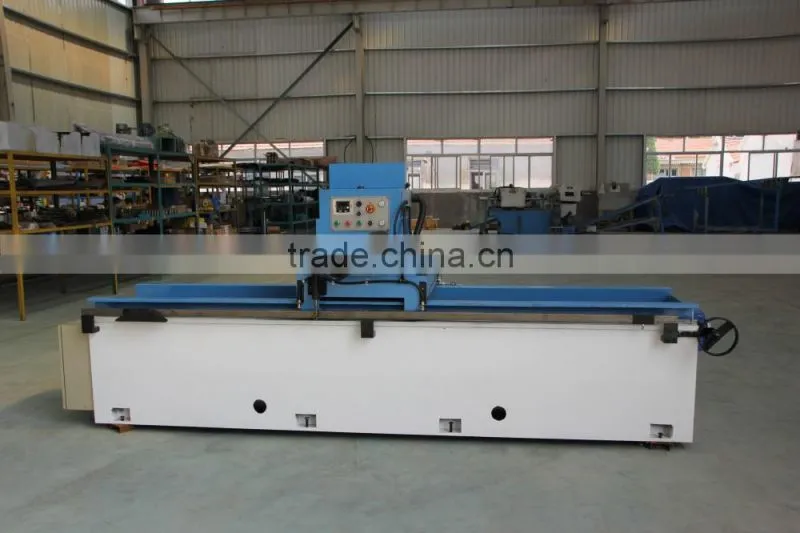

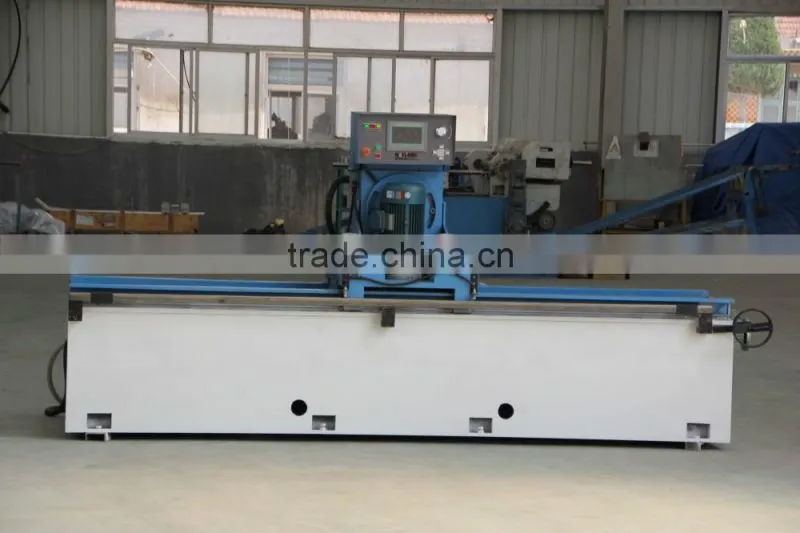

wood chipper blade sharpener
Brief description of wood chipper blade sharpener
1. This machine mainly grind all type of long knives, like peeling machine knife, Granulator knife, cutting paper knife ,Shearing Blades, sliceing knives etc.
2. This machine can work long surface knife. Max. Working length is 1500-7000mm.

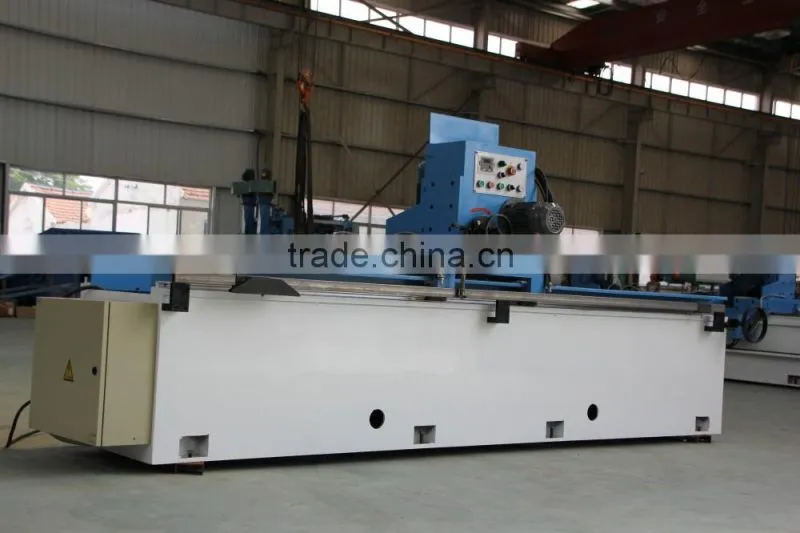

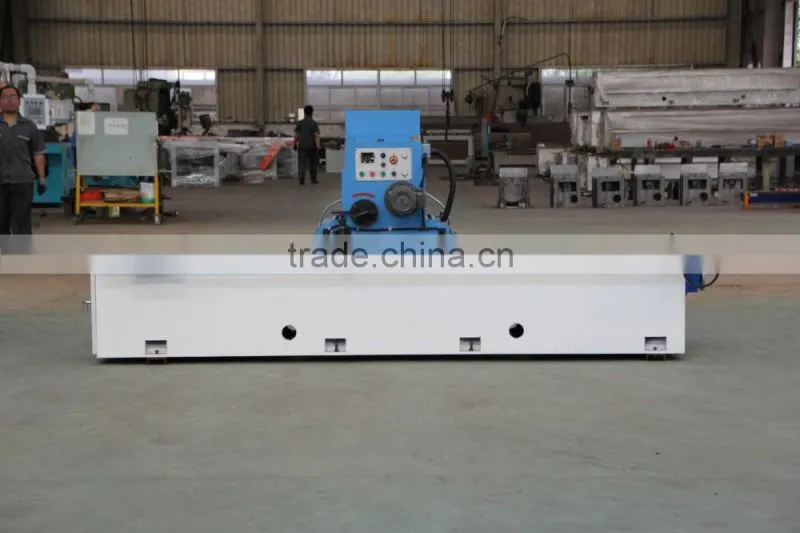

3. This machine’s body is a design of gantry body, with the high-quality steel weld, stress relieved eliminating the internal stress. The body has high strength and good rigidity. No shrinking in centre of body. the thickness of the steel is 10 or 12mm.

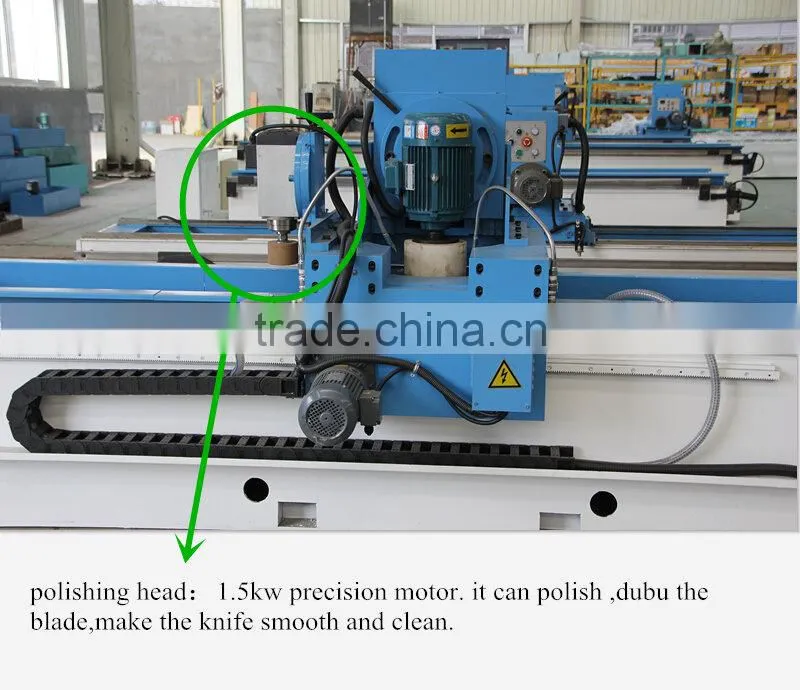

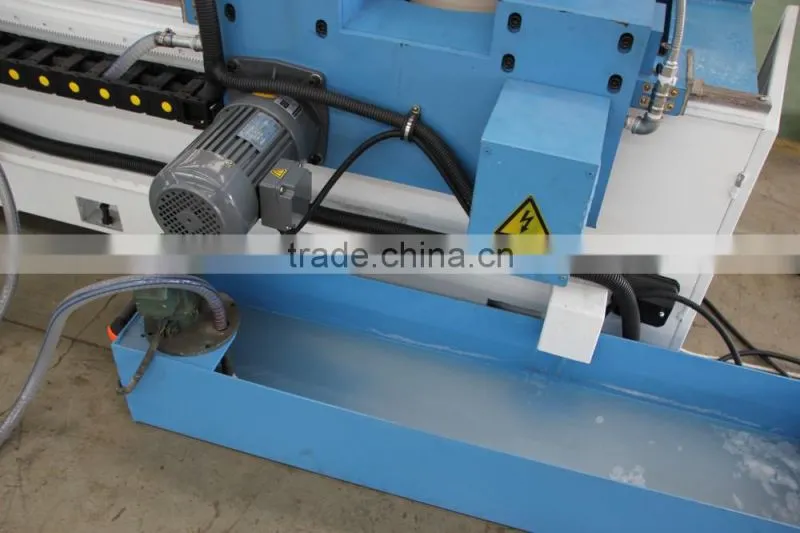

4. The grinding head use the dedicated motor. It can adjusted the gap of axial direction, transmission steady, long life and high accuracy. The vertical movement of the grinding head use the ball screw, to ensure the accuracy.

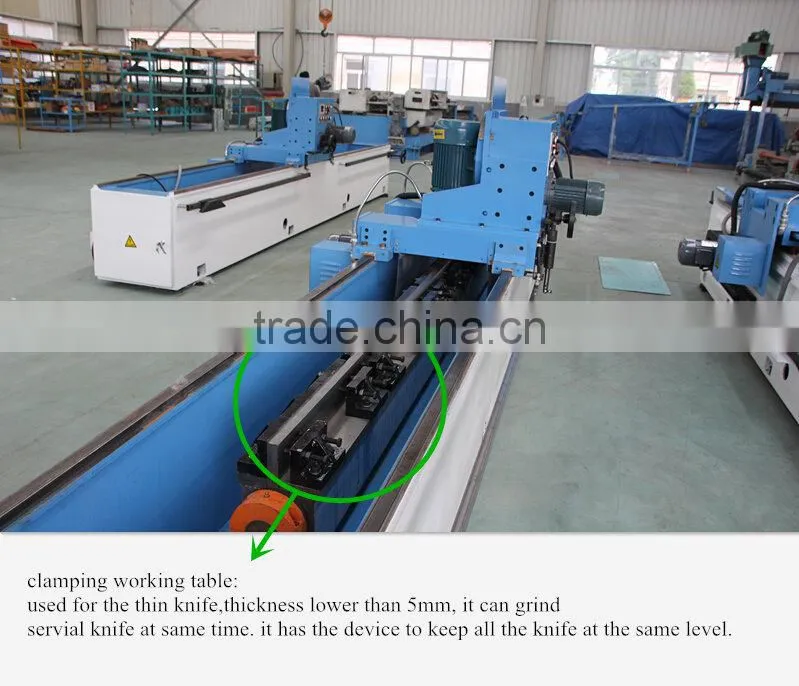

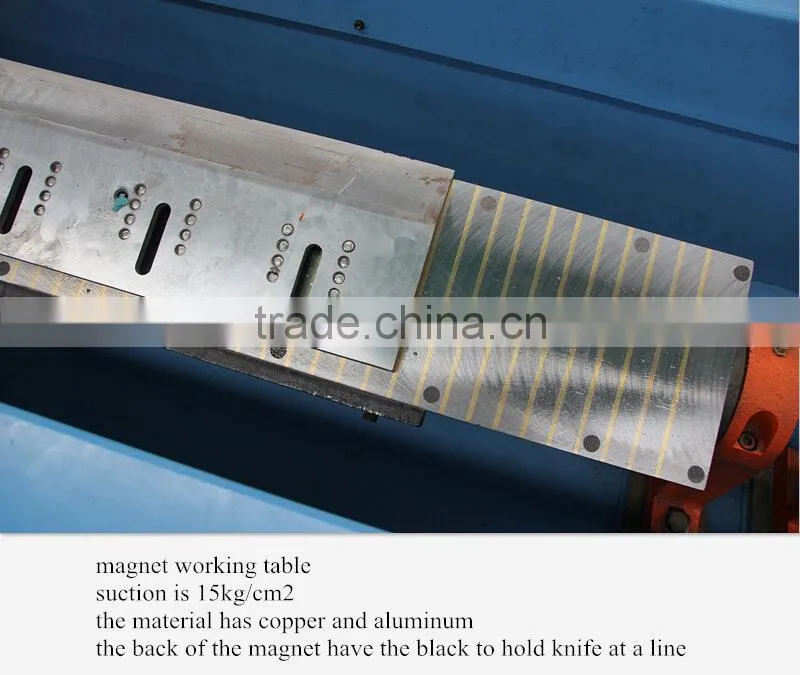

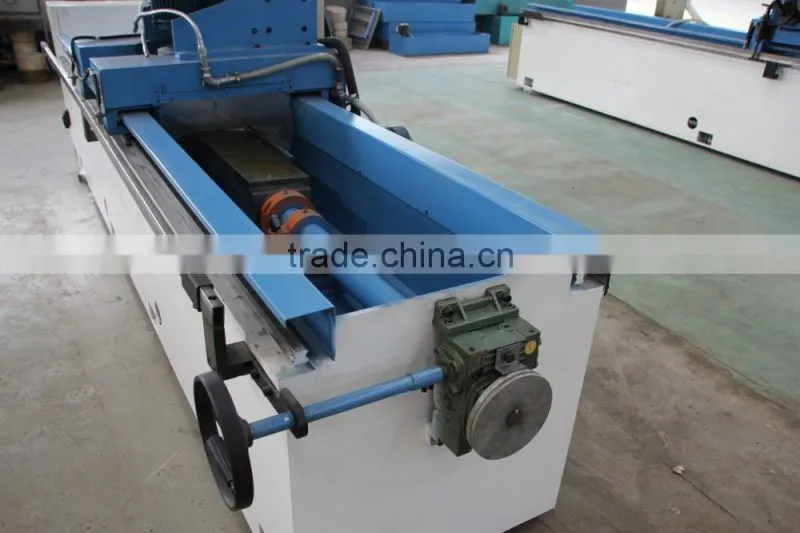

5. The worktable use the electromagnetic chuck. And very convenience to clamp knife. The worktable is easy to adjust the angle by worm gear.
6. The rail use linear guide and ensure the steady horizontal movement of grinding head . the linear guide use TAIWAN HIWIN.

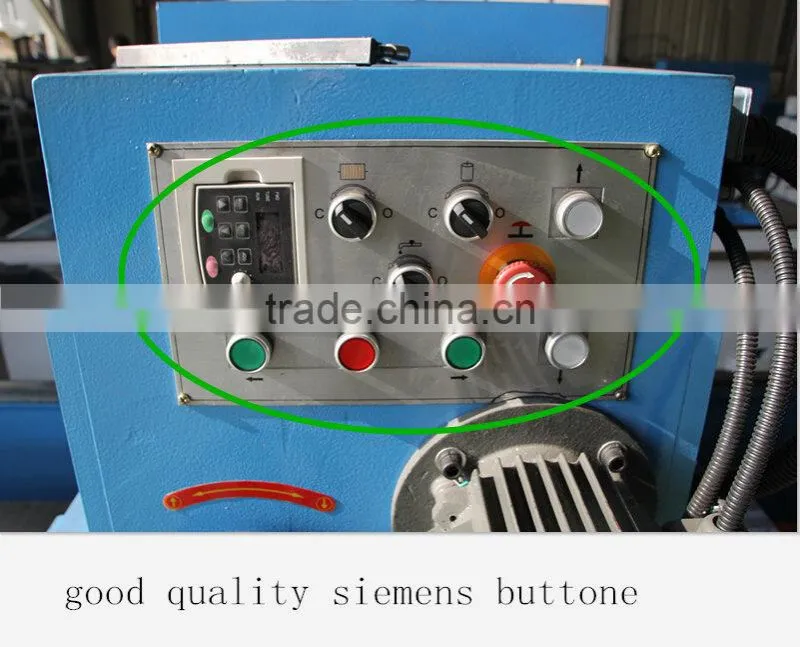

7. This machine use the inverter. It can be easy to adjust the horizontal and vertical speed of the grinding head.
8. Job accuracy of machine is 0.01mm
Technical specification of the wood chipper blade sharpener
Name/ model |
HM1815 |
HM1822 |
HM1830 |
HM1835 |
HM1842 |
|
Max grinding length |
1500mm |
2200mm |
3000mm |
3500mm |
4200mm |
|
Width of the working table |
180mm |
180mm |
180mm |
180mm |
180mm |
|
Grinding head power |
4kw |
4kw |
4kw |
4kw |
4kw |
|
|
Linear speed of grinding wheel
|
15m/s
|
15m/s
|
15m/s
|
15m/s
|
15m/s
|
|
|
Speed of the sliding plate
|
Stepless speed change
|
|||||
Tilting range of the working table |
±90° |
±90° |
±90° |
±90° |
±90° |
|
The video of the wood chipper blade sharpener
/watch?v=QkqPohZ7ods&feature=youtu.be

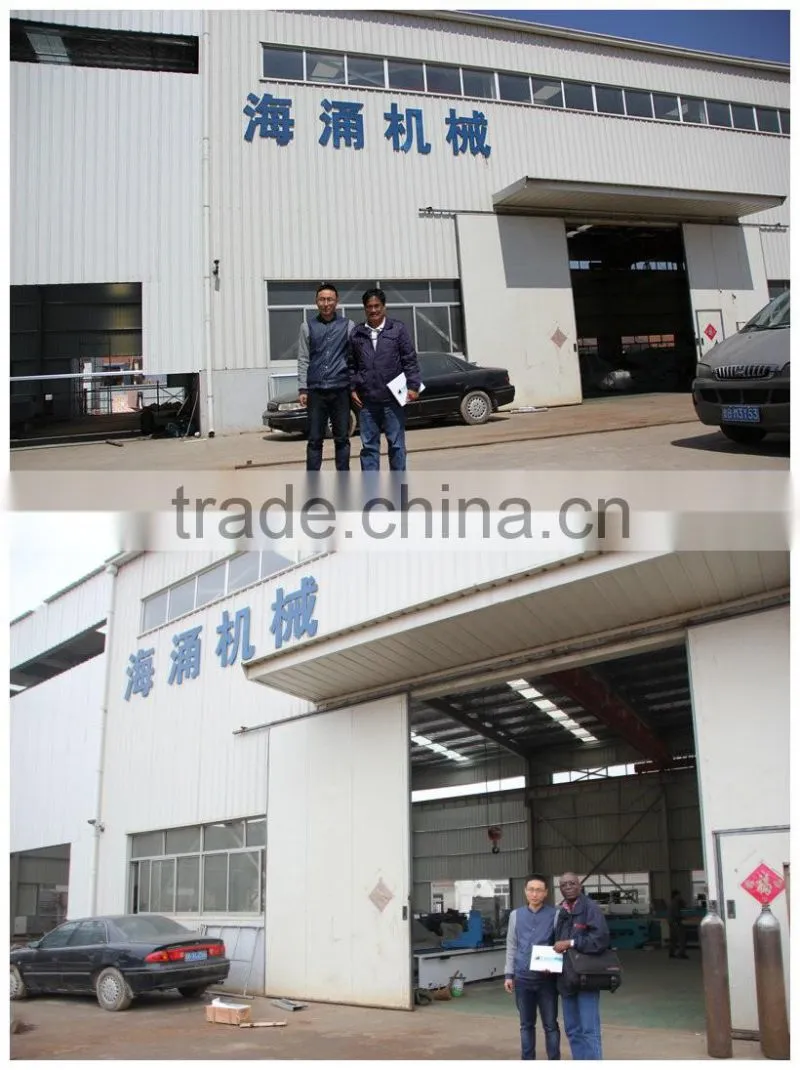

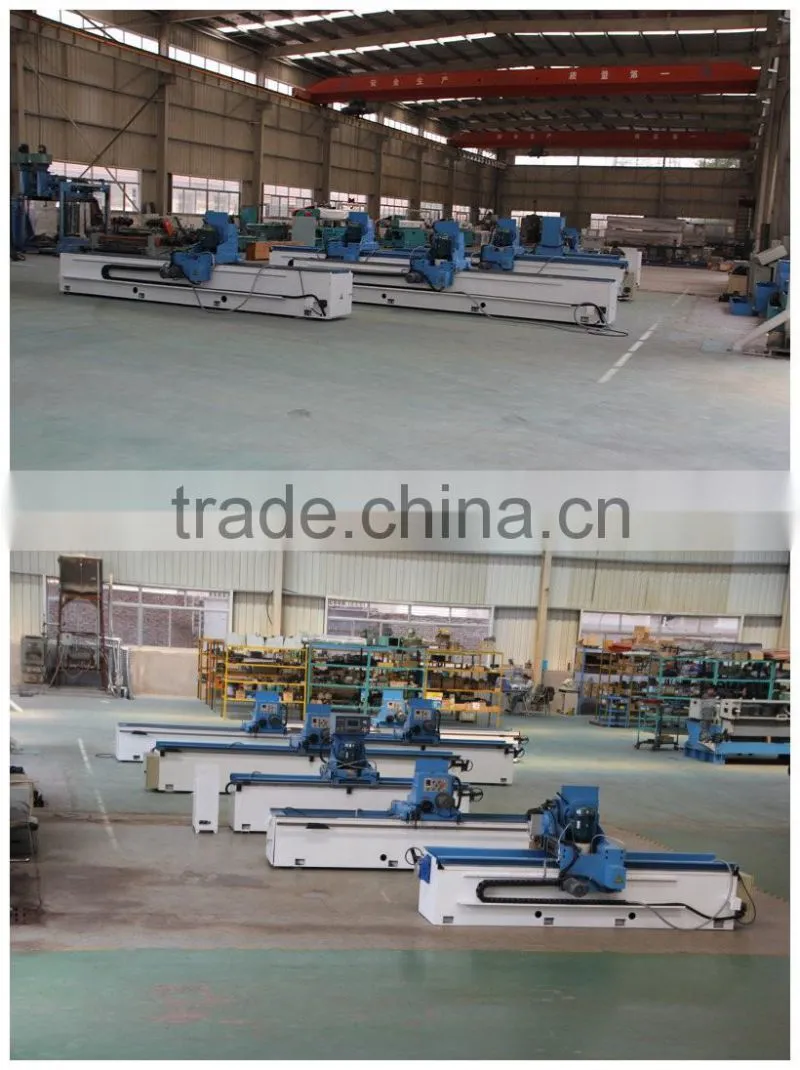

The video of our factory
