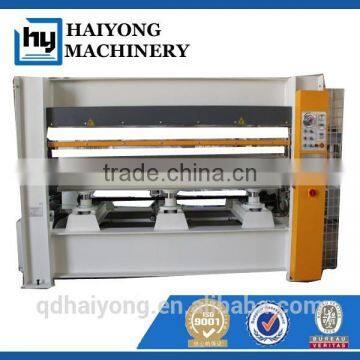

Hydraulic Hot Press Machine for Doors

Hydraulic Hot Press Machine for Doors thumbnail-1
Hydraulic Hot Press Machine for Doors photo-1
US$ 12,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hot Press Machine
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Haiyong Machinery Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hot Press Machine
Place of Origin Shandong, China
Brand Name HAIYONG
Model Number BY214(1H)
Voltage 380V
Power(W) 28.5kw
Dimension(L*W*H) 3800x1500x2320mm
Weight 3000
Certification ISO9001 CE
Warranty one year
After-sales Service Provided Overseas service center available

  hydraulic hot press machine for doors



Advantage and function of the  hydraulic hot press machine for doors

1 use solid press platen. Steel welded frame with high precision and compact structure

2 the specialized valves impoert from german

3 electric compoment use schneider

4 cyllinder use export one, high quality.

5 Timing control, adjustable pressing time according to processing requirements

6 High pressing speed up to 1.0m/min

7 High operation safety without operating risks

Technical specification of hot press machine



Model

BY214x8/16(1)H

Total pressure

200ton

Feeding direction

Transversal

Dimension of hot platen

2500x1300x42mm

Number of layers

1

Number of platens

2

Stroke

380mm

Diameter Oil cylinder

80mm

Number of cylinders

6

max pressure

3.2kgf/cm2

max tempeture

200℃

Heating medium

Steam or thermal oil

Frame structure

welded

Working pressure

25Mpa

Total power

5.5Kw

Thermal oil furnace motor power

22.5Kw

closing speed

40mm/s

Overall dimension (Approx)

3900x1300x2200mm

Net Weight (Approx)

8600Kg

 hydraulic hot press machine for doorshydraulic hot press machine for doorshydraulic hot press machine for doorshydraulic hot press machine for doorshydraulic hot press machine for doorshydraulic hot press machine for doors

hydraulic hot press machine for doorshydraulic hot press machine for doors
