Specifications
Veneer Hot Press Machine1.Adjustable pressure
2.Melamine paper, veneer
3.MDF / HDF / Particle Board
Veneer Hot Press Machine
Function
It is used to hot-press and adhere furniture panel,construct partition, wooden door and to press all kinds of decorative material such as decorative paper,decorative cloth,melmine proof plate,metal foil,artificial and natural veneer and natual veneer matching on the surface of various artifical board and also is used for veneer .So it is suitable for midsize furniture factory and small size factory of artifical board secondary operation.
Technical specifications
Model | BY214×8/12(3)H | BY214×8/16(4)H | BY214×8/16(5)H |
Size (foot) | 4×8 | 4×8 | 4×8 |
Dimension of hot platens (mm) | 1300×2600 | 1300×2600 | 1300×2600 |
Nominal pressure (mn) | 1.2 | 1.6 | 1.6 |
Max service opening (mm) | 80-120 | 80-120 | 80-120 |
Number of layers | 3 | 4 | 5 |
Advantage
.Can be used in various man-made board, fire prevention board manufacturing and wide application scope, particularly suitable for plywood production.
. The automatic electric apparatus is easy and reliable in operation
. The foundation is simple with low investment.
Product show

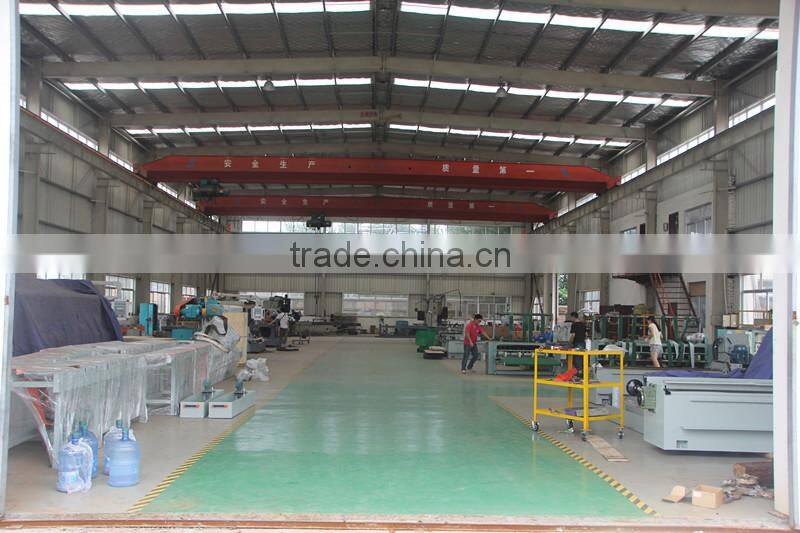

Our factory
Qingdao Haiyong Machinery Manufacturing Co., Ltd. is a manufacturer of wood –working machinery with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in manufacturing wooden products and other industries.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
We can produce machine according to customer's requirement.
