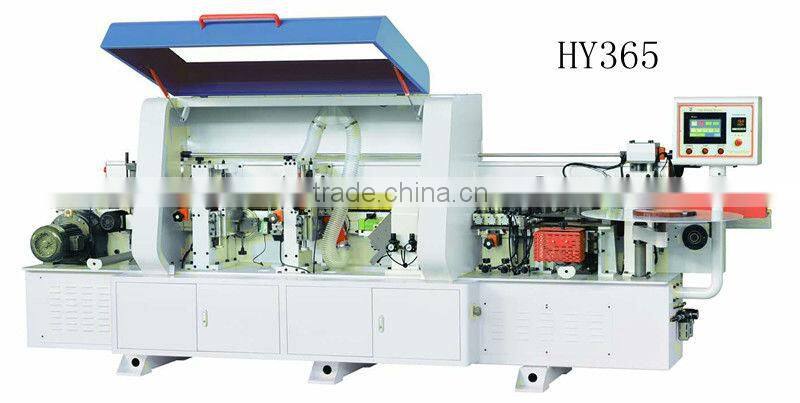

hot sale efficiency automatic edge bander

Specifications

the automatic edge bander use the advantaged technology.edge thickness is 0.4-3mm.

BASIC INFORMATION OF the automatic edge bander

this machine is a new type of banding machine with advanced technology. the functions of this machine are gluing,end cuffing,fine trimming,scraping,buffing. the advantages of this this machine are new consstruction , stable performance, easy operation, can used for different kindss of banding material.

key parts of the automatic edge bander

we use high quality parts produced in china to make the machine can work stably.

technical  specification of the edge bander



modle	HY365	HY362	MF350Q	MF350QQ
power	8KW	8kw	5.29KW	4.26KW
feed speed	12-20m/min	12-20m/min	9.3m/min	9.3m/min
panel thickness	10-60mm	10-60mm	12-55mm	12-55mm
edge thickness	0.4-3mm	0.4-3mm	0.4-3mm	0.4-3mm
panel width	min 80mm	min 80mm	min80mm	min80mm
working pressure	0.6Mpa	0.6Mpa	0.7Mpa	0.7mpa
veral size	4140x1000x1600mm	4140x1000x1600mm	2600x730x1500mm	2600x730x1500mm
