Home > Manufacturing & Processing Machinery > Woodworking Machinery > Wood Based Panel Machine > 50T Veneer Cold Press Machine
US$ 3,500 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cold Press Machine
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Woodworking Hydraulic Cold Pressing MachineUS$ 3,500 - 8,000MOQ: 1 Set -
Woodworking Hydraulic Cold PressUS$ 3,500 - 8,000MOQ: 1 Set
-
Hydraulic Plywood Cold Press MachineUS$ 3,500 - 8,000MOQ: 1 Set
-
Woodworking Veneer Cold Press MachineUS$ 3,500 - 8,000MOQ: 1 Set
-
China Woodworking Professional Hydraulic Cold Press MachineUS$ 3,500 - 8,000MOQ: 1 Set
Condition
New
Type
Cold Press Machine
Place of Origin
Shandong, China
Brand Name
HAIYONG
Model Number
HY80T
Voltage
380V
Power(W)
5.5kw
Dimension(L*W*H)
3640X1700X2580MM
Weight
3400KG
Certification
ISO9001
Warranty
1year
After-sales Service Provided
Overseas service center available

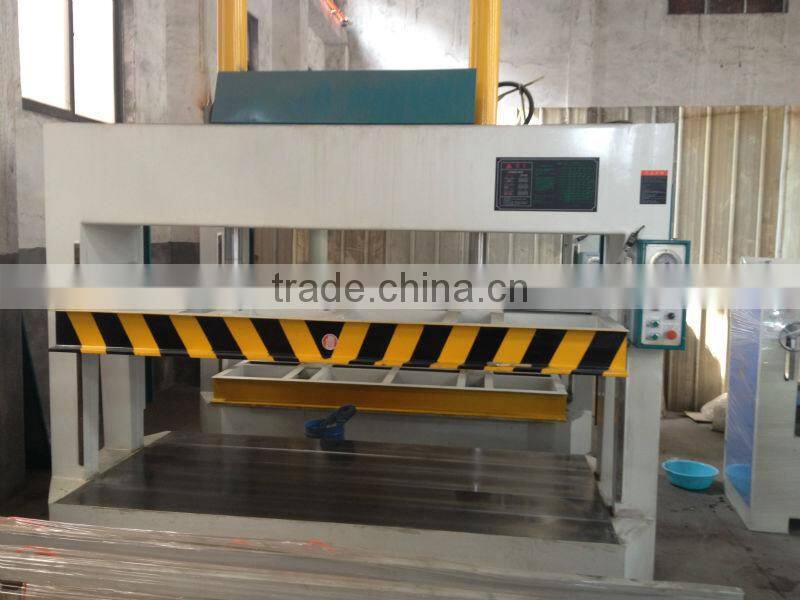

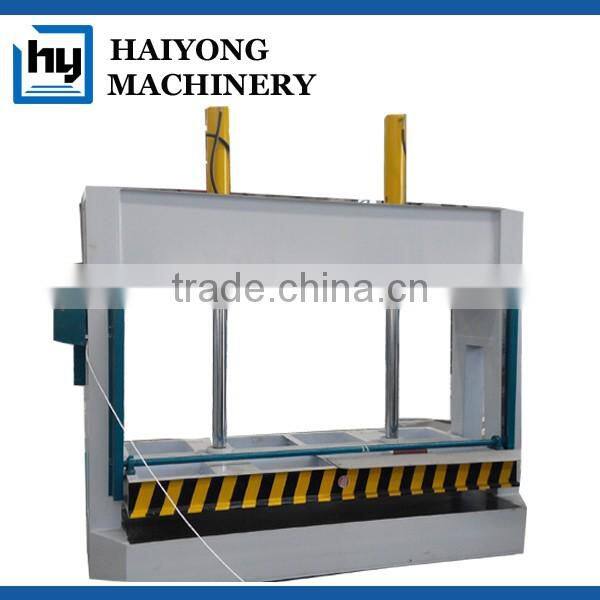

veneer cold press machine
The basic information of veneer cold press machine
1, this machine is used for pre-pressing process of making plywood,blockboard and decorative board.
2, the whole structure is designed and manufactured based on advanced international experience and new technological requirements.

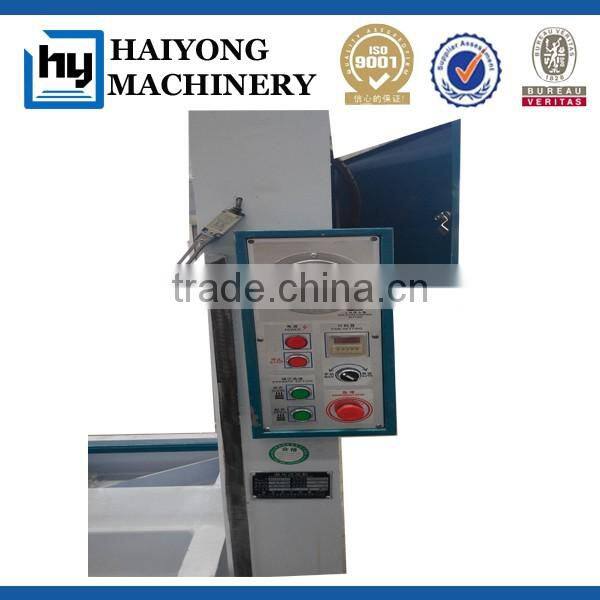

3, the electric system and hydraulic system of the machine have been examined precisely and the free-beam will not fall by its own gravity with results assuring exxcellent quality.
4, the cylinder is made of super-hard matal,and the seal use low-resistance stepped gaskets, no leakage.
technical specifications of veneer cold press machine
| max pressure | 50T,80T,100T |
| dimensiom of the platen | 1250x2500mm |
| working speed | 180mm/min |
| total power | 5.5kw |
| overall dimensions | 3640x1700x2580mm |
| net weight | 3400kg |
| stroke | 1000mm |

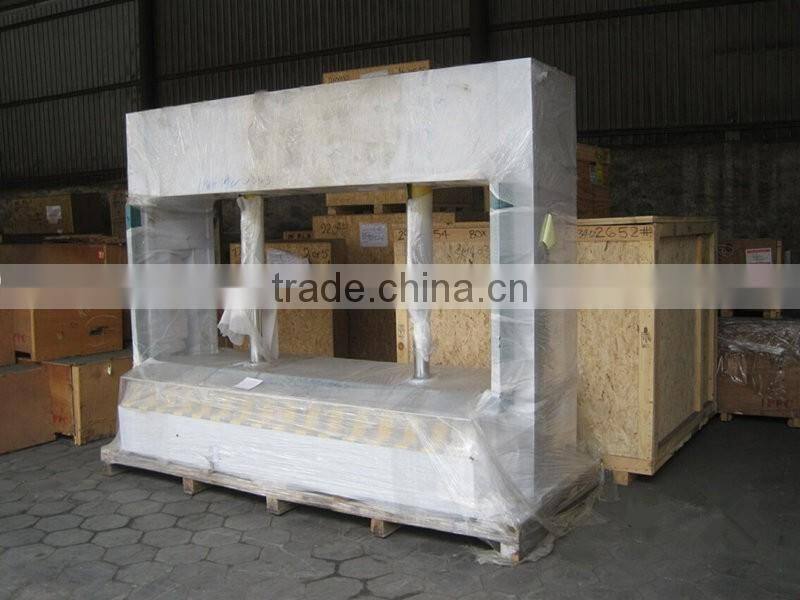

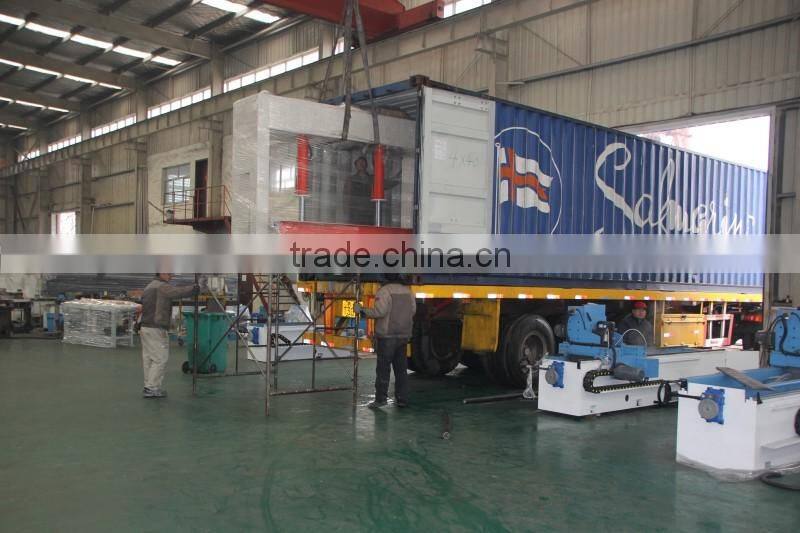

the machine can load with 20 feet standard container

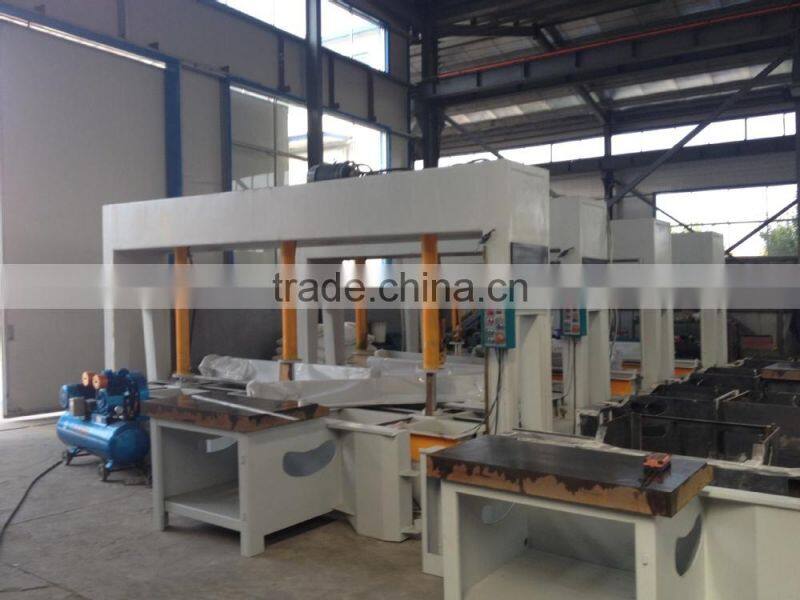

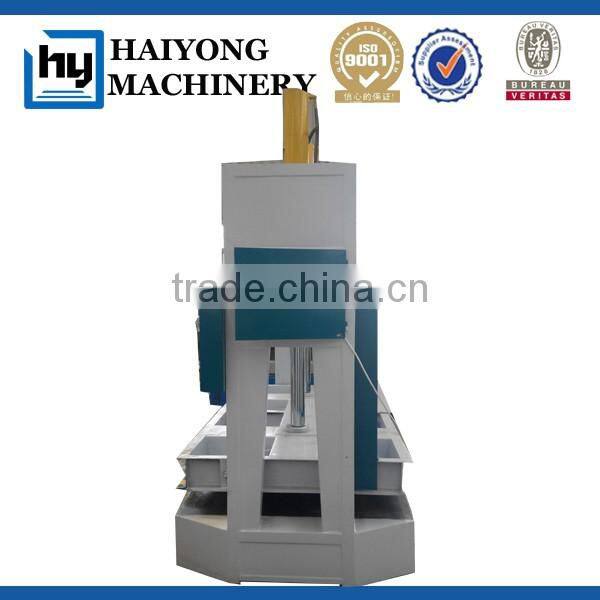

detailed photo
