cold press machine

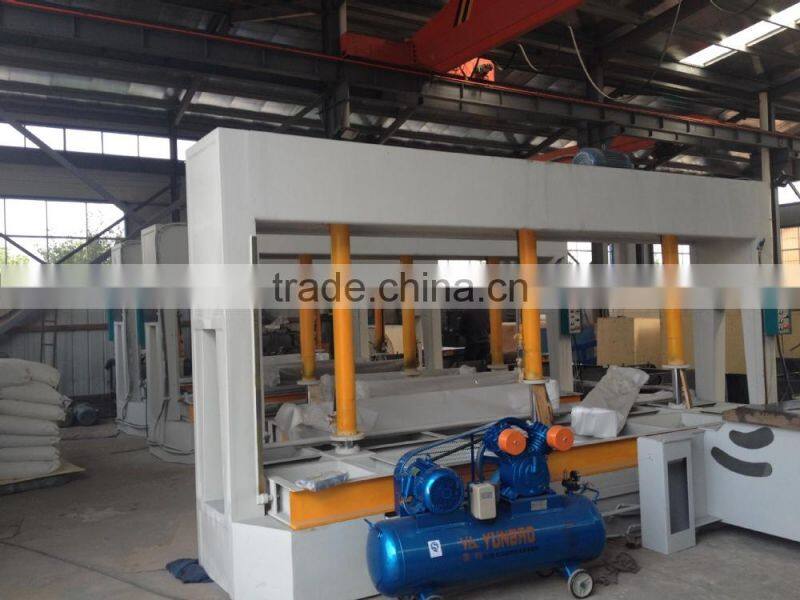

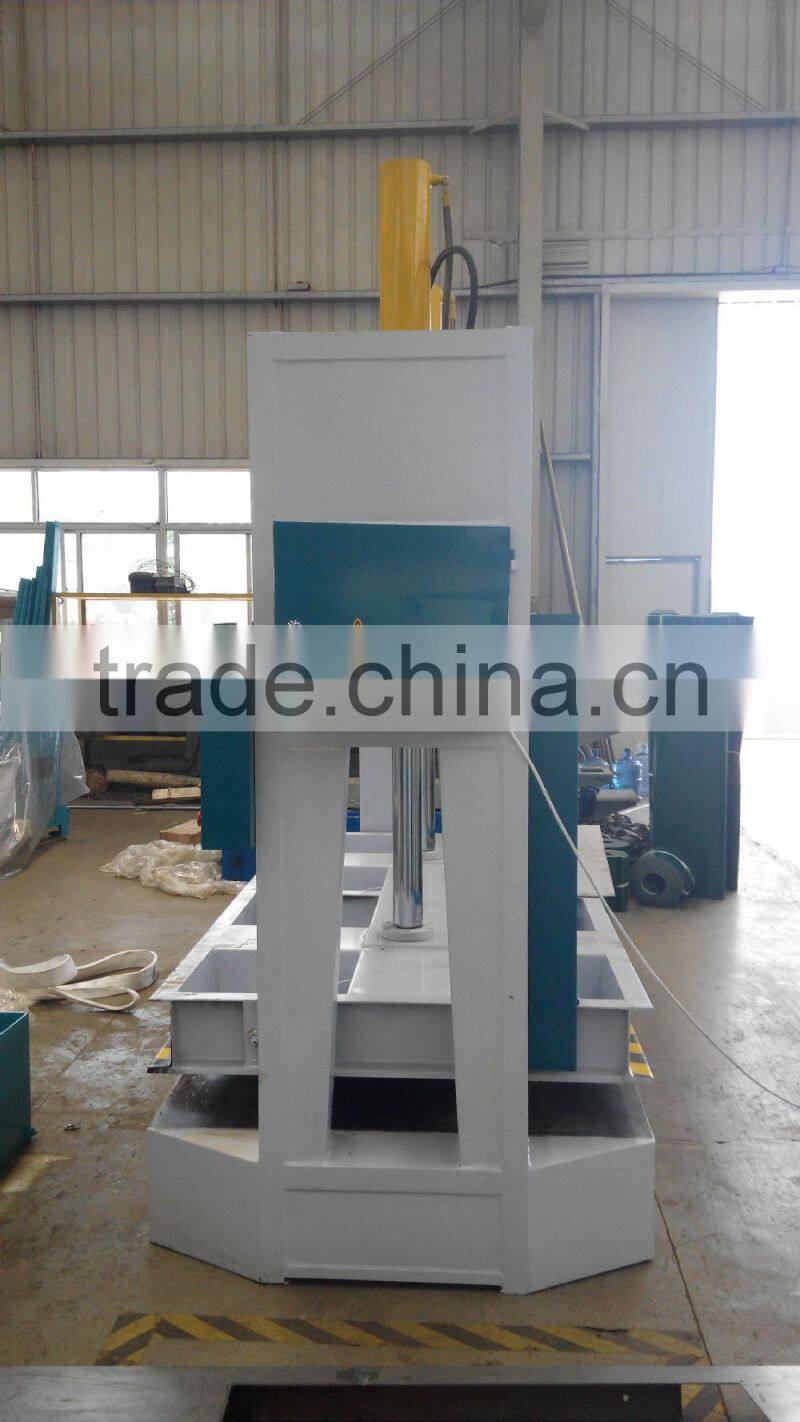

The basic information of the plywood cold press machine
1 the max pressure is 50T,80T,100T. other molde we also have.
2, the whole structure is designed and manufactured based on advanced international experience and new technological requirements.
3, the electric system and hydraulic system of the machine have been examined precisely and the free-beam will not fall by its own gravity with results assuring exxcellent quality.
4, the cylinder is made of super-hard matal,and the seal use low-resistance stepped gaskets, no leakage.
5 when you delivery the machine. you can lose the cylinder to lower the height .
6 the press size also can made as your requirement. standard one is 2500x1250mm.
7 max opening have the 1meter and 1.5 meter .
technical specifications of the plywood cold press machine
| max pressure | 50T |
| dimensiom of the platen | 1250x2500mm |
| working speed | 180mm/min |
| total power | 5.5kw |
| overall dimensions | 2860x1300x3400mm |
| net weight | 2600kg |
| stroke | 1000mm |
the special size of platen and pressure we cam also making
