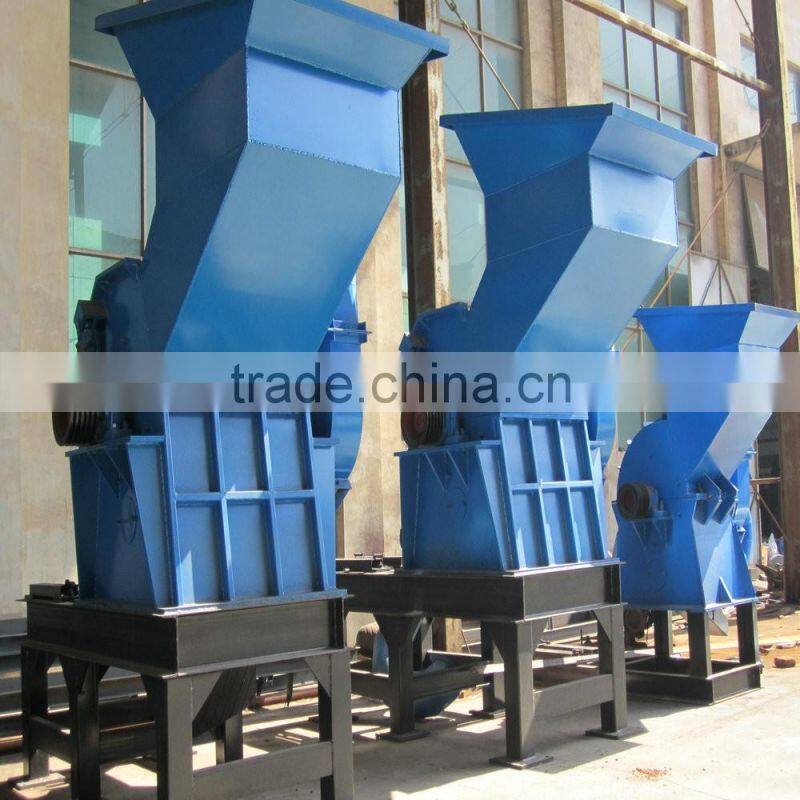

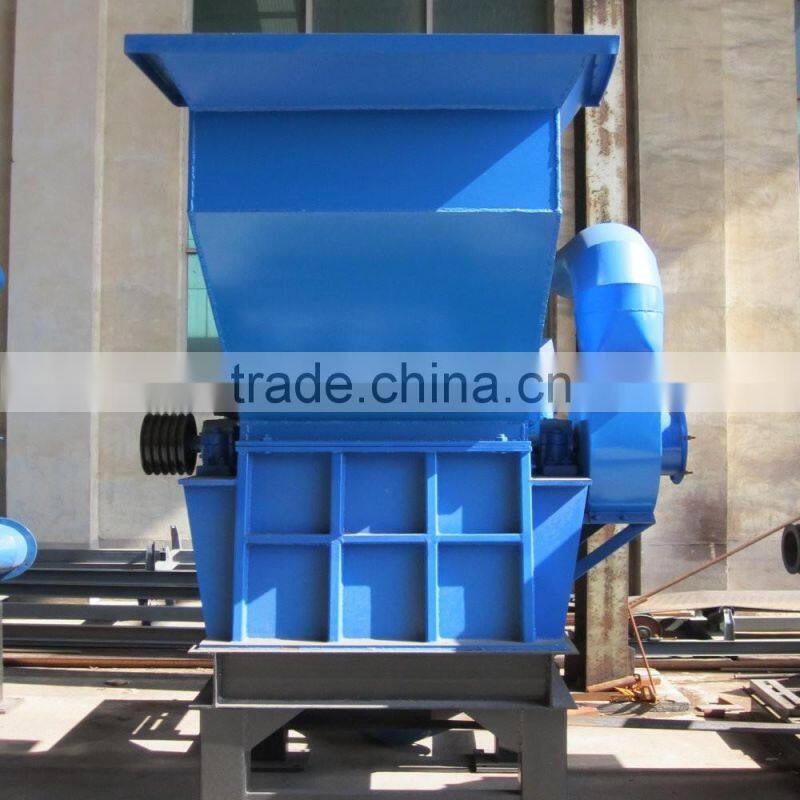

Scrap Metal Crushing Equipment of Metal Crusher Machine for Iron and Aluminum Separation

Scrap metal crushing equipment of metal crusher machine for iron and aluminum separation

Metal crusher machine mainly employed to grind large size metallic material into into solid metal lumps or granules, thus reducing transport costs and improving the efficiency of scrap steel making.The messy metallic shavings enter the grinder from the top opening port, twisted and torn into small pieces by the high-speed running plate gear, then discharged from the bottom sieve. Mesh size can be set according to the requirements of the particle size of the metal shavings.

Metal crusher machine parameter:

Feeding mouth size:0.8*0.35m(W*H)

Max feeding material size:800*350mm

Power:37kw

Metal crusher material:16mm steel plate

Inside:25mm thick manganese steel lining board

Metal crusher machine working principle:

Metal crusher machine is a biaxial fine grinder, which consists of worm gear motors, chassis, racks, helical cutter, drive shaft, driven shaft, gear, pinion gear and other components.Geared Motor adopts Direct Connect worm gear motor, which is mounted directly on the drive shaft.Power is transmitted by gear to the driven shaft and make the cutter on the main and driven shaft to form relative motion, so that the material is crushed by being squeezed, torn and cut in the grinder.

Metal crusher machine working process:

Metal crusher machine technical parameter:

Metal crusher machine application:

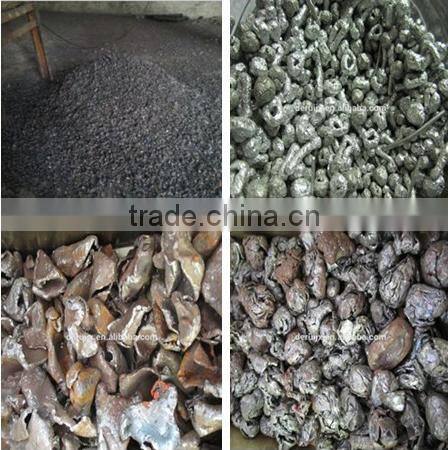

Metal crusher machine can be used to process various lathe turnings and scrap metal such as cans, paint bucket, thin metal, iron slag, tin, beer bottle caps, aluminum windows and doors, circuit boards, etc. It is suitable for installation in a fixed location for centralized processing of metallic scraps.The metal crusher is an ideal grinding equipment applied in the plant of metal smelting and metal recycling.

Metal crusher machine construction features:
Driven by the reducing motor.
Engagement type cutting blade, which can smash the cans completely.
Using the special cutting blade,and the hardness is not less than HRC55d.Strengh structure,densely and enhanced gusset, which can ensure the strong of the case.
Controlled by the automized buttons, it is very safe and convenient.
Security identifier and mark, which can ensure the safety of the operation.
The conveyer belt can be added extra to feed materials.
