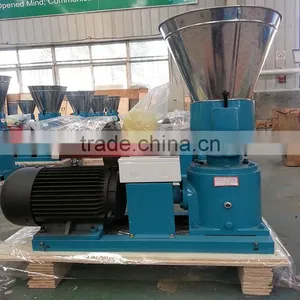

Capacity 2.5 T/H Flat Dies Biomass Wood Sawdust Pellet Mill Machine Wood Sawdust Pellet Mill
Biomass Machinery Features of Biomass Wood Sawdust Pellet Mill Machine:
1. The use of advanced flat mold technology,which can improve the proportion of molding press block fuel.
2. The big feeding bin provide enough feeding space for fluffy raw materials;The feeding way is efficient
and practical.
3. The key parts adopt imported material, make sure long service time.
4. The special design for mold, so as to the density briquetting, and the smooth surface.
5. The wearing parts easily dismounted and assembled, and simple maintenance convenient.
6. Automatic compensation adjusting device for the change of raw materials, to avoid blocking.
7. The key parts' service time greatly extend, production keeps going up, and use coat reducing.
8. Our briquette machine price is competitive.

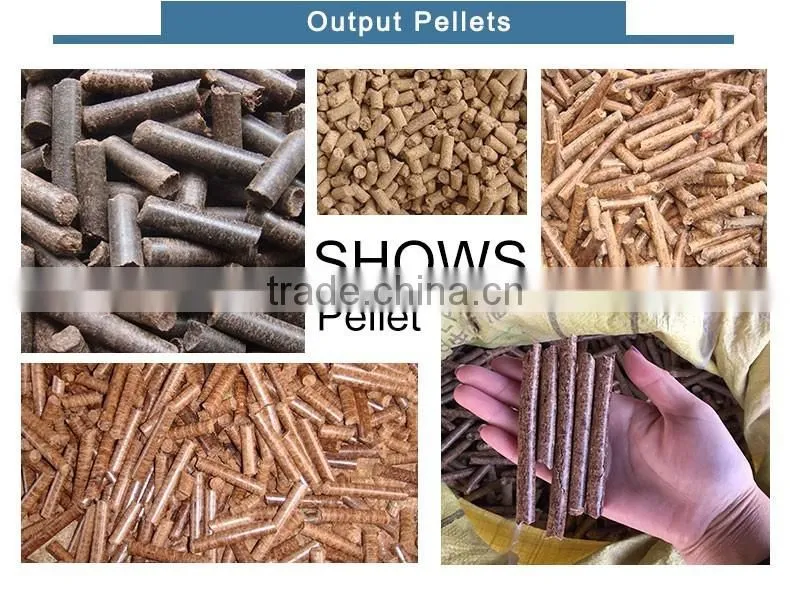

Main Parameters of the Output Pellets
| Parameters of the Output Pellets | |
| Calorific Value | >4500~4800 kcal/kg |
| Density | >1.1~1.3t/m³ |
| Moisture | <=10% |
| Combustion Ratio | >=98% |
| Heat Efficiency | >=81% |
| Ringelman Emittance | <1 |
| Discharged Dust Consistence | <=80mg/m³ |
| Ash Content | <=2% |
We have the size 4mm,6mm,8mm,10mm and 12mm mould for your choice. The 6mm and 8mm are the most common size. These two size are very suitable for making wood fuel pellets.
Technical Parameters of Biomass Wood Sawdust Pellet Mill Machine
| Model No. | Rotate model | Power | Output(KG/H) | Packing size(mm) | Gross weight |
| DRM200 | 2-rollers, die fixed | 7.5KW/380V | 100~120 | 1000*450*850 | 350KG |
| DRM250 | 2-rollers, die fixed | 15KW/380V | 150~200 | 1200*550*1050 | 550KG |
| DRM300 | 2-rollers, die fixed | 22KW/380V | 250~300 | 1350*600*1200 | 750KG |
| DRM350 | 2-rollers, die fixed | 30KW/380V | 300~500 | 1650*700*1300 | 1000kg |
| DRM450 | 2-rollers, die fixed | 37KW/380V | 500~700 | 1300*700*1500 | 1450kg |
| DRM550 | 2-rollers, die fixed | 45KW/380V | 800~1000 | 1400*750*1600 | 2000kg |
| DRM800 | 2-rollers, die fixed | 90KW/380V | 1500~2000 | 1900*1000*2000 | 3900kg |
| DRM1000 | 2*2-rollers, die fixed | 110KW/380V | 2000~2500 | 2100*1150*2050 | 5200kg |
Advantages of our machines' output pellets is high density, high fuel value, low moisture and low ash content. See the following information about photos:
