Grinding Machine MG158A Fully Automatic Saw Blades Knife Grinding Machine

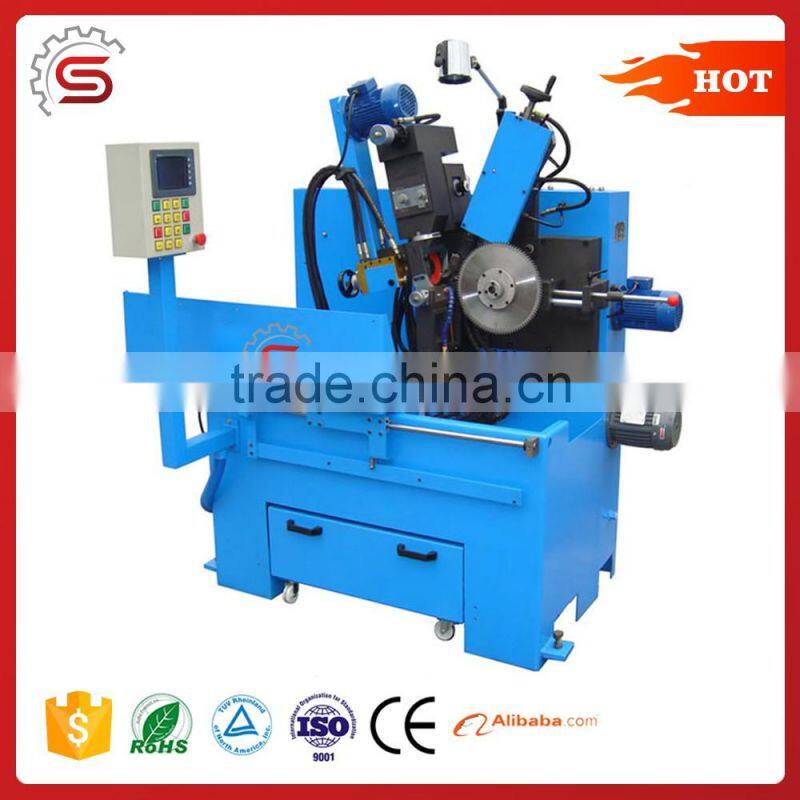

Grinding Machine MG158A Fully Automatic Saw Blades Knife Grinding Machine photo-1
US$ 10,000 - 11,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
STEELER
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Guangzhou/as your request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name STEELER
Model Number MG158A
After-sales Service Provided Engineers available to service machinery overseas

Grinding Machine MG158A Fully Automatic Saw Blades knife grinding machine



Product Description

1.Automatic saw blade machine used for auto sharpeing of saw blade



Technical Parameters:

Saw blade Thickness8mm
Tooth pitch7-100mm
Circular saw outside diameter80-815mm
Bore hole diameter10-220mm
Hook angle of grinding-20 degree-40degree
Tooth face angle of grinding-15degree+15degree
The rear angle of grinding6-45 degree
Left-right pitch of toothTooth tip :45degree  Tooth face:45degree
Range of Grinding Cycle0-30mm
Wheel speed6000 r/min
The Speed of Work24 teeth/min
Total Power1.69kw
Cooling Device25L/min
Grinding wheel outside dia.32mm-125mm
Net weight960kg
Gorss weight1100kg
Overall size1650*1350*1830mm
Packing size1760*1220*2020mm
Voltage380v,50hz,3phase
FOBQINGDAO10900USD/SET



The Product Detail:

Grinding Machine MG158A Fully Automatic Saw Blades knife grinding machine

Packaging & Shipping

The Packaging Details:


1.Stretch film with wooden case or as your request

2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!

3.Timely delivery and transportation

Grinding Machine MG158A Fully Automatic Saw Blades knife grinding machine

Our Services

We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!

We have years of manufacturing woodworking machine.OEM and ODM service available.

Sample Service :

If you want to test the performance of machine ,we can sent sample to you with cost offer .

Customized Service :

Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.

After-sale Service:

1) The machine guarantee is 12 months. 2) 24 hours technical support by email or calling. 3) Friendly English version manual and operation video CD disc.

4)Engineers available to service machiner overseas

Company Information

Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers. The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation, enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.

We have already approved the ISO9000 International quality system certification and the main products through the national  certification,access to the national key new products,high-tech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over theworld.

A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users. Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet the users of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!
