600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine

Qingdao Steeler Woodworking Machinery Co., Ltd.
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine thumbnail-1
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine thumbnail-2
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine thumbnail-3
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine thumbnail-4
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine thumbnail-5
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine thumbnail-6
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine photo-1

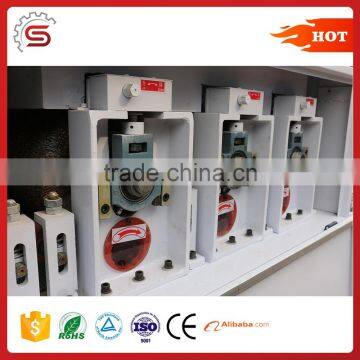

600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine photo-2
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine photo-3
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine photo-4
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine photo-5
600R-R-R Wood Wire Brush Machine Wood Wire Drawing Machine photo-6
US$ 6,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
STEELER
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Guangzhou or as your request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name STEELER
Model Number 600R-R-R
After-sales Service Provided Engineers available to service machinery overseas

600R-R-R wood wire brush machine wood wire drawing machine



Application:

The machine is mainly used for solid wood panels, flooring, solid wood panel, brush the surface of groove, wire drawing, natural wood brush, and the wood board, synthetic materials, textures, nap etc..After processing the wood surface has a natural wood grain concavo-convex, main and collateral channels clear, effect of the follow-up processing more prominent.Mainly used for pseudo-classic embossed floor, drawing the floor, furniture board, surface texture and other decorative plate processing; surface wood veneer processing or sheet; threads wood-plastic board synthesize plate surface (straight) processing etc.

Feature:

1.the max working width of belt :

 400mm,600mm,630mm,800mm,1000mm,1300mm,1600mm

2.the actual processing thickness:0.3-110(160)mm

3.the specific function is different,so the configuration is little different

4. The lower supporting roller or belt feeding mode, feed speed can be adjusted

5. Feed table structure of multiple choice, the height can be accurately lifting or remain unchanged



Technical Parameter:

Model

STWR-R-R600

plate production width

600

plate production  thickness

2-110(160)mm

plate production length

>=500mm

front steel roller speed

18m/s

back steel roller speed

18m/s

back Dubang roller speed

18m/s

conveyor belt speed

5-25m/s

drawing roller diameter

250mm

total motor power

10.85kw

first motor group power

5.5kw,4level

second motor group power

5.5kw,4level

Third motor group power

4.0kw,4level

conveyor belt motor

1.5kw.4level

working air pressure

>0.55Mpa

dust collection average wind speed

>=25m/s

Packing size

2.3*1.5*1.4m

Net weight/gross weight

550/600kg



The Product Detail:

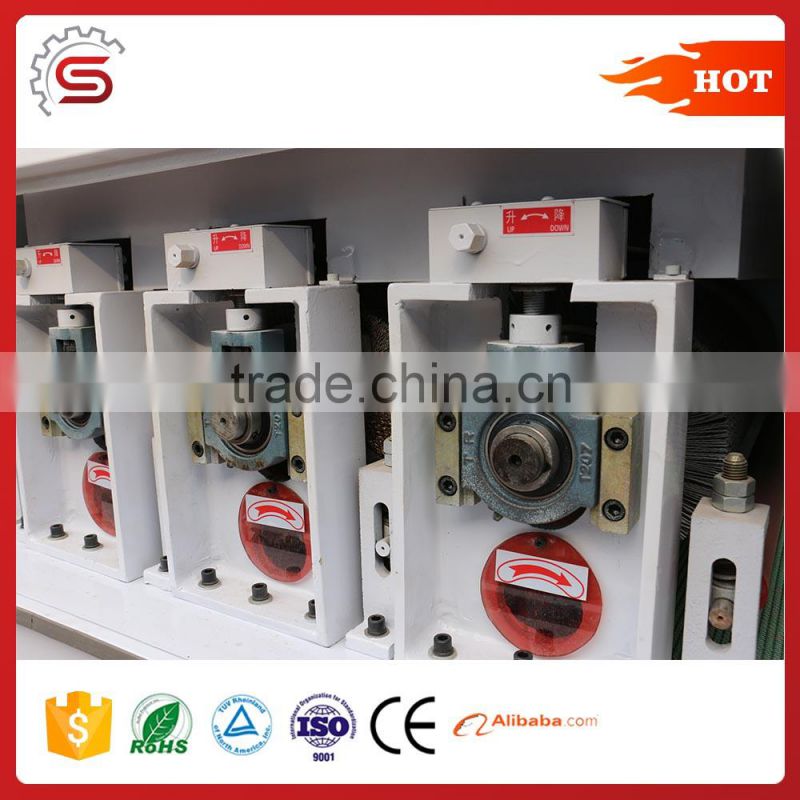

600R-R-R wood wire brush machine wood wire drawing machine

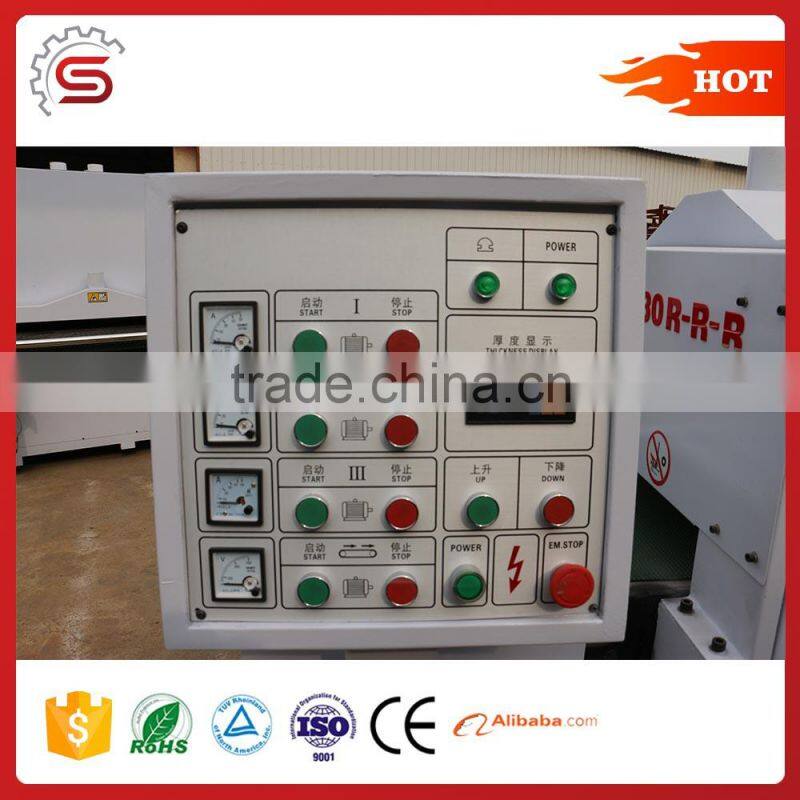

600R-R-R wood wire brush machine wood wire drawing machine

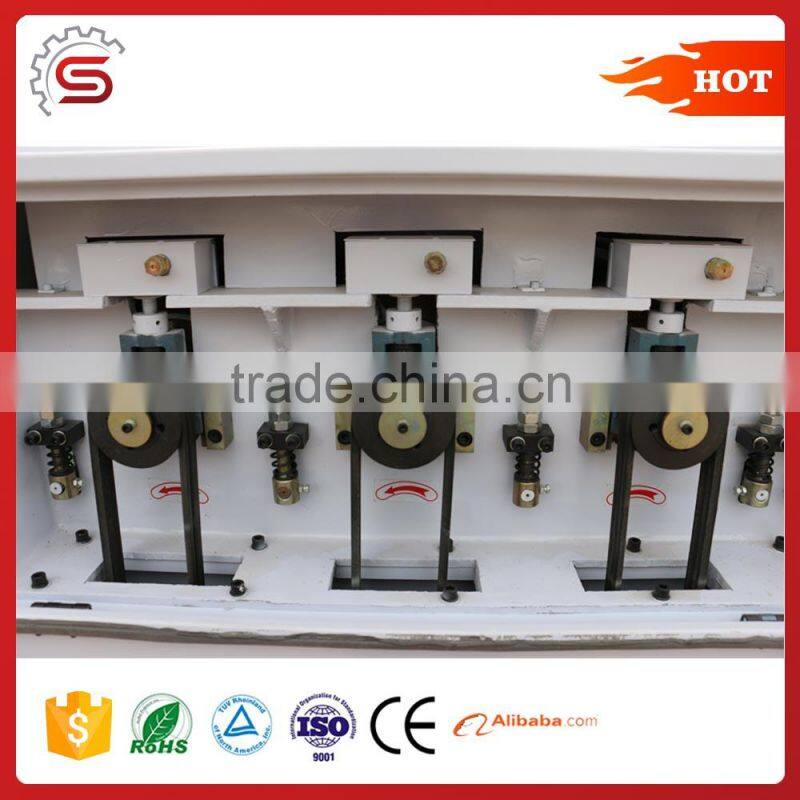

600R-R-R wood wire brush machine wood wire drawing machine

Packaging & Shipping

The Packaging and Shipping:

600R-R-R wood wire brush machine wood wire drawing machine





Our Services

We have years of manufacturing woodworking machine.OEM and ODM service available.
Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer.
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.

3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.

Company Information

Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.

The company produced sanding machine which is a combination of Germany,Italy,Taiwan's

good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,

enterprising spirit,continuous research and development to adapt to the market,make our

polishing machine series equipment industry's leading edge products.

We have already approved the ISO9000 International quality system certification and the main
products through the national certification,access to the national key new products,high-tech
products such as the honorary title,by the Chinese enterprise brand quality committee awarded
the "National quality credit AAA grade credit enterprise"brand,the company products are sold
well all over theworld.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means
make the company to win the trust of users.
Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to
the users'communication,make the company continuously introduced to adapt to the market,
meet theusers of the new product.Quality,efficiency,service,integrity,modest is the goal of the
Steeler People!
