Home > Products > Spindle Moulder > High quality wood milling machine MX6232 *200 Double sides copy milling machine

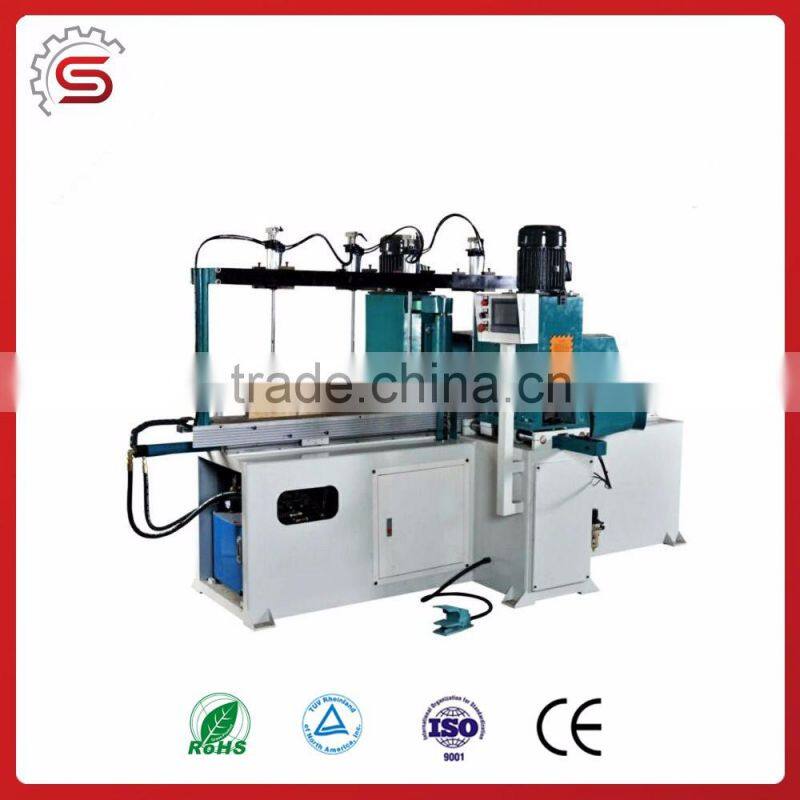

High quality wood milling machine MX6232 *200 Double sides copy milling machine
- 100 Set / Sets per Month
- Qingdao/Shanghai/Guangzhou/as your request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High quality wood milling machine MX6232 *180 Double sides copy milling machine
-
High quality wood milling machine MX6232 Double sides copy milling machine
-
High quality wood machine MX7212 Automatic copy shaper machine
-
Professional wood machine MS7215 Automatic Copy Router Machine
-
Professional wood machine MX5068 Router machine for wood
-
Professional wood machine MX5057 Router machine for wood
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | STEELER | Model Number | MX6232 Double sides copy milling machine | |
Type | Horizontal | CNC or Not | Normal | |
Voltage | 380V | Power(W) | 14.7kw | |
Dimension(L*W*H) | 396*190*205cm | Weight | 2500kg | |
Certification | CE ISO | Warranty | 1 Year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High quality wood milling machine MX6232 Double sides copy milling machine
Technical parameter:
MODEL | MX6232*200 |
Max.shaping length | 2000mm |
Max. shaping width | 360mm |
Max.shaping height | 140mm |
Diameter of main spindle | 30mm |
Diameter of guiding wheel | 100mm |
Speed of main spindle | 9000r/min |
Power of main spindle | 5.5kw*2pcs |
Hydraulic motor power | 3.7kw |
Table size | 2200*285mm |
Working air pressure | 0.6~0.8Mpa |
Working pressure of hydraulic system | 8Mpa |
Dust outlet diameter | 100mm*2pcs |
Overall dimensions(L*W*H) | 396*190*205cm |
Net weight | 2500kg |
Description:
It is mainly used to process the long and slender pieces, like the chair feet.It adopts the model technics,
and it can deal it can with the two sides at the same time, which as a result raises the efficiency.
The arbor motor is powered by gasous liquid tube and can be adjusted freely, thus it is suitable for
different cutting speed.The guide way is endurable and works in a precise strailine.
Detail:
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
1.Good after-sale Services is our Superiority
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Oversea engineer after-sale service is available.
2.Main market
Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.
3.Sample Service
If you want to test the performance of machine ,we can sent sample to you with cost offer.
4.Customized Service
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's
good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,
enterprising spirit,continuous research and development to adapt to the market,make our
polishing machine series equipment industry's leading edge products.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
