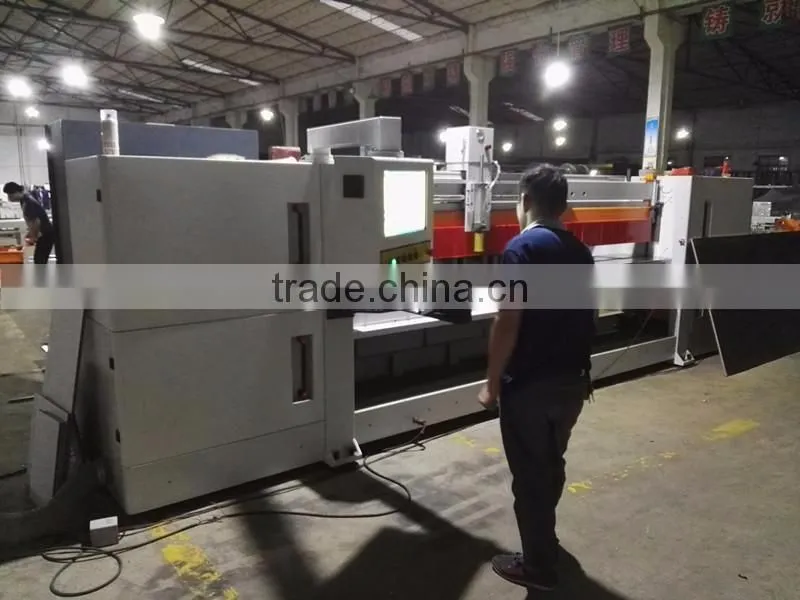

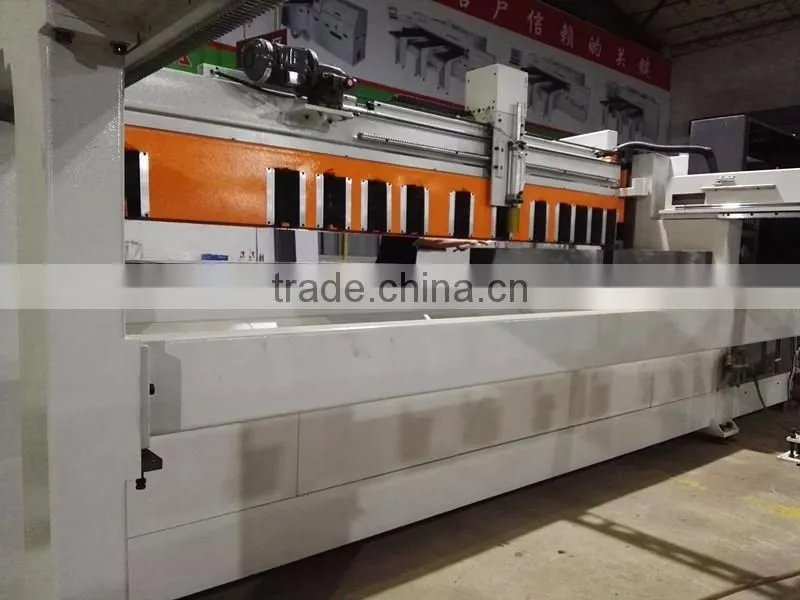

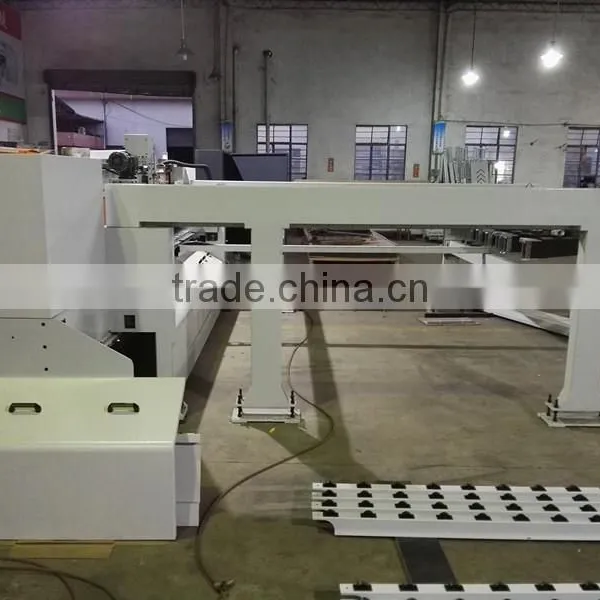

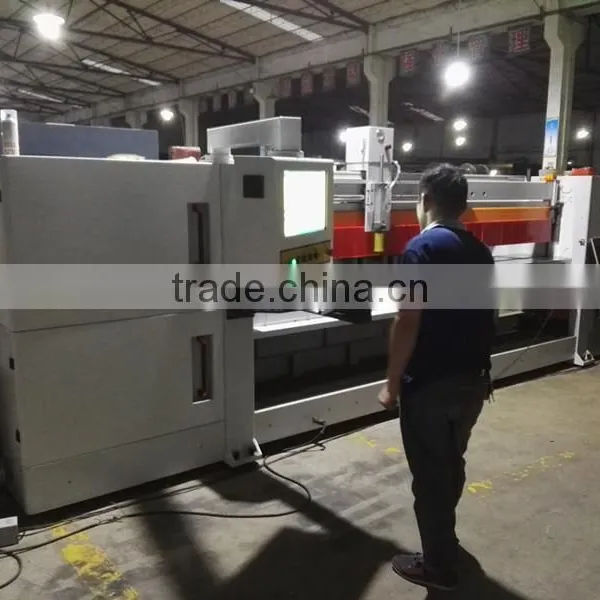

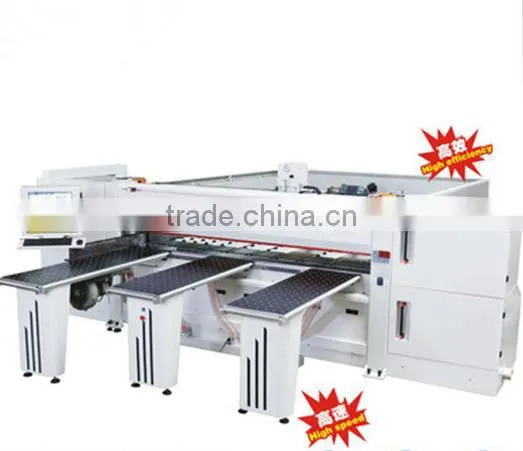

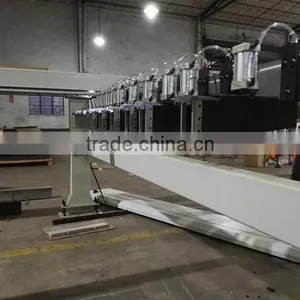

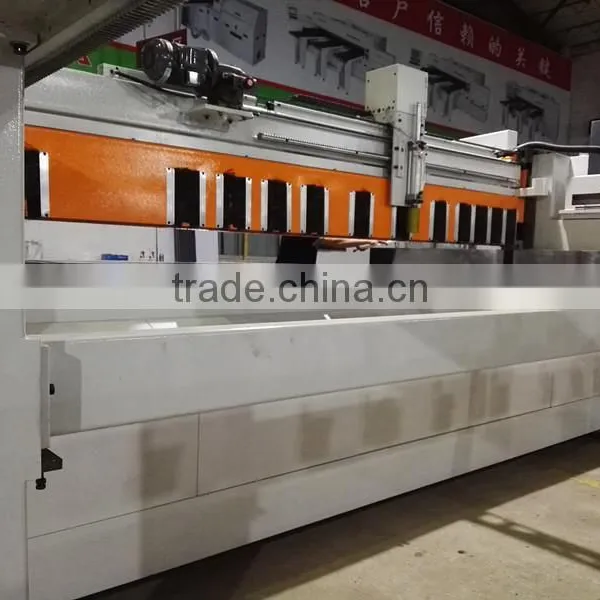

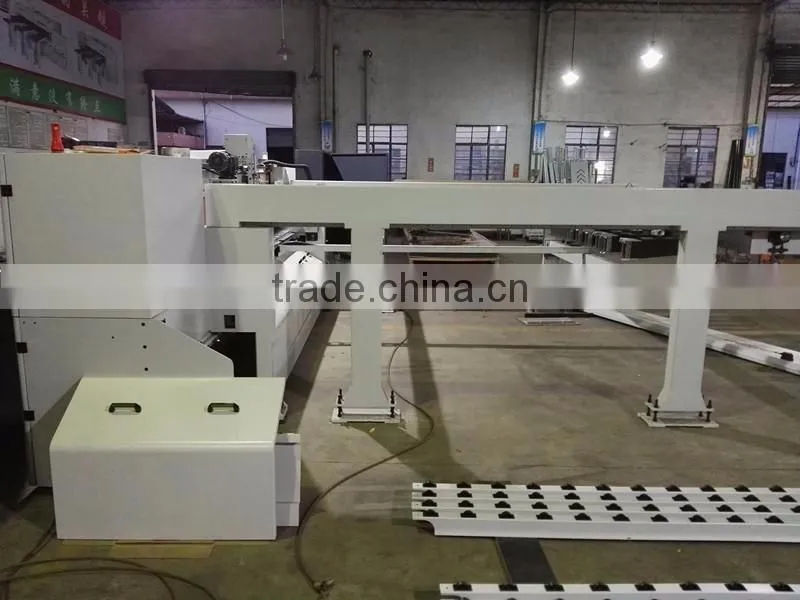

Performance computer saw NP280HG Heavy Duty CNC Panel Saw for woodworking
Technical parameter:
Model |
NP280HG |
Max cutting length |
2780mm |
Max.cutting thickness |
120mm |
Main saw blade diameter |
Φ450mm |
Main saw blade inner diameter |
Φ75mm |
Main saw rotating speed |
3980rpm |
Scoring saw blade diameter |
Φ180mm |
Scoring saw blade inner diameter |
Φ45mm |
Scoring saw rotating speed |
6900rpm |
Saw carriage forward speed adjustable |
0-120m/min |
Saw carriage backward speed |
0-150m/min |
Main saw motor |
18.5kw |
Scoring saw motor |
1.5kw |
Saw carriage driving motor |
1.5kw |
Automatic feeding motor |
1.0kw(AC Servo motor) |
Total power |
24.2kw |
Automatic feeding speed |
100m/min |
Air pressure |
5-7kg/cm² |
Working table height from ground level |
950mm |
Net weight |
5500kg |
Gross weight |
5600kg |
Overall dimension |
5000x5700x2100mm |
Feature:
1.Using precision linear slide rail, strong stability, high precision.

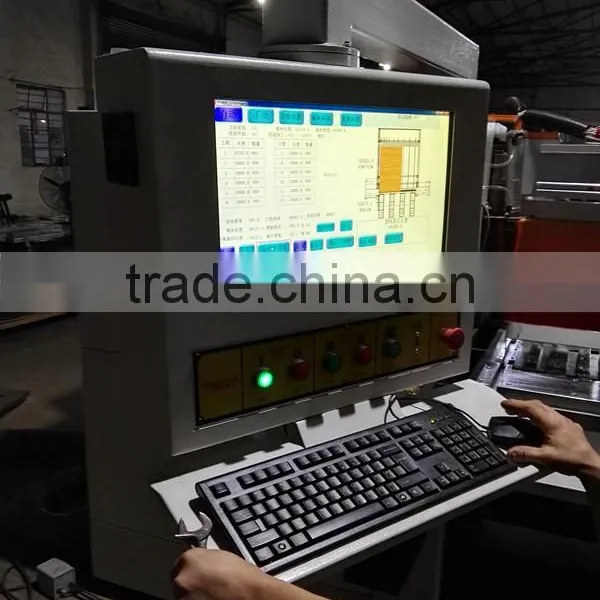

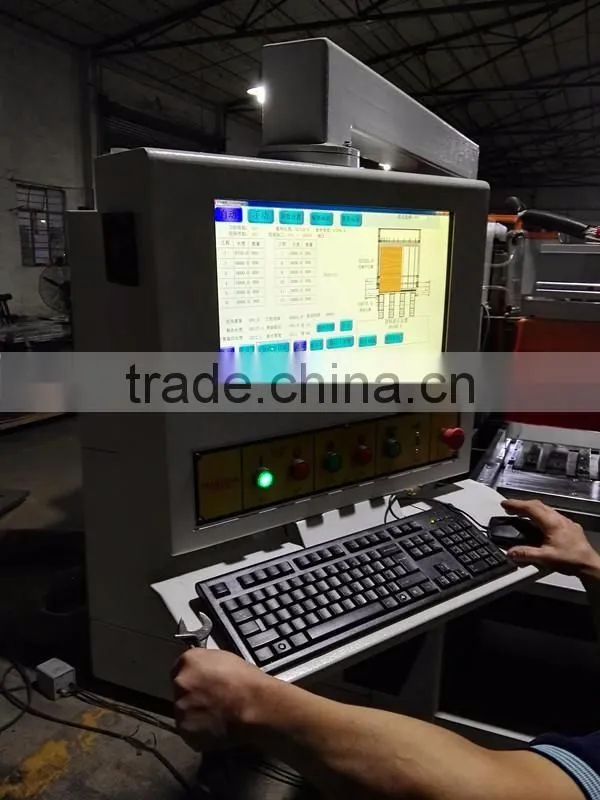

2.HHM Computer Control Software
Industrial PC,HHM Control software

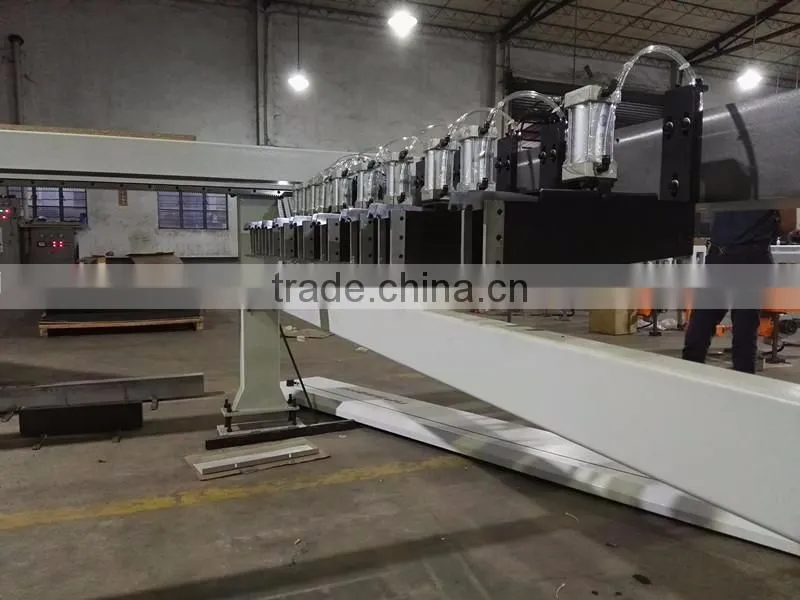

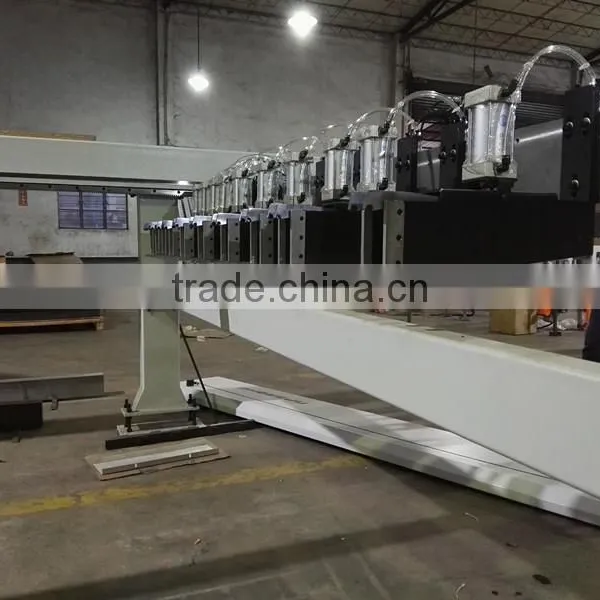

3.Sheet metal clip is expected to adopt cylinder and feed forward through the roller bed surface, feeding and accurate, and ensure that saw cutting precision, and will not hurt the workpiece surface.
4.Floating effect of the floating platform is caused by the pressure, to facilitate feeding, especially suitable for the heavy plate, and can avoid the surface damage.
5.Automatic sheets-feeder with Japan's Mitsubishi high-performance servo motor drive, big torque, accurate positioning and long service life.
6.High quality Japanese Mitsubishi CPU control main board.
7.The machine adopts imported magnetic feet as feed positioning detection control, precise positioning detection size effectively, improve the cutting precision.
8.Advanced reasonable electrical control design, equipment can be realized automatically return, to ensure the safety of the processing efficiency.
9.Adopt Taiwan precision gear and rack, durable.
Detail :
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
1.Good after-sale Services is our Superiority
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Oversea engineer after-sale service is available.
2.Main market
Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.
3.Sample Service
If you want to test the performance of machine ,we can sent sample to you with cost offer.
4.Customized Service
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's
good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,
enterprising spirit,continuous research and development to adapt to the market,make our
polishing machine series equipment industry's leading edge products.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
