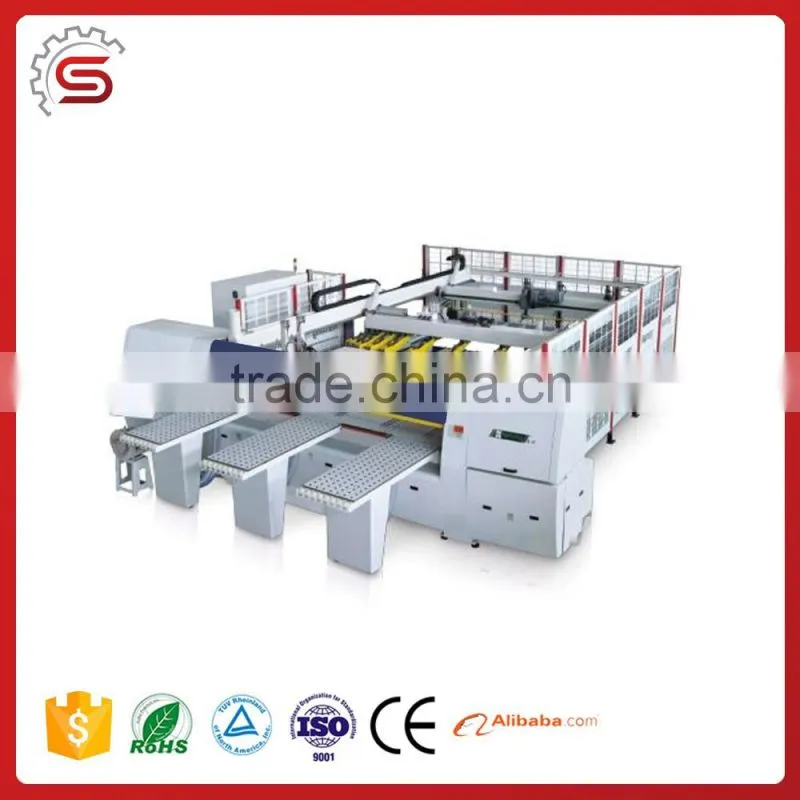

2017 Wood cutting machine MJK1337FZ CNC Panel Saw computer panel saw Cnc panel saw machine
Main Technical Parameter:
Model | MJK1337FZ |
Max cutting length | 3680mm |
Max.cutting thickness | 120mm |
Main saw blade diameter | Ø460mm |
Main saw blade inner diameter | Ø60mm |
Main saw rotating speed | 3910rpm |
Scoring saw blade diameter | Ø180mm |
Scoring saw blade inner diameter | Ø45mm |
Scoring saw rotating speed | 4150rpm |
Saw carriage forward speed adjustable | 5-80m/min |
Saw carriage backward speed | 100m/min |
Main saw motor | 18kw |
Saw carriage driving motor | 2.2kw |
Automatic feeding motor | 1.5kw(AC Servo motor) |
Automatic feeding motor | 2kw(AC Servo motor) |
Pusher motor | 2kw(AC Servo motor) |
Feeding motor | 3kw |
Roller motor | 0.75kw |
Powerful ventilator motor | 2.2kw |
Total power | 35kw |
Automatic feeding speed | 80m/min |
Rear feeding speed | 36m/min |
Air pressure | 5-7kg/cm² |
Working table height from ground level | 980mm |
Stacking height | 1200mm |
Net weight | 8000kg |
Overall dimension | 6900x9700x2020mm |
The picture:
1.ShippingWe have rich experience in exporting machines to the world and can supply all kinds of different shipping terms!
2.Timely delivery and transportation.
We have years of manufacturing woodworking machine.OEM and ODM service available.
Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer.
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service:
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds ofsanding machine,polishing machine and other mechanical equipment manufacturers.The company
produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical
properties,structure and the advanced polishing machine not only draw lessons from the foreign
advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series
equipment industry's leading edge products.
