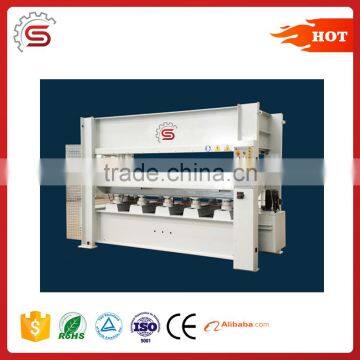

Laminate Hot Press Machine 160T 3 Layers Hot Press for Veneer and PVC
Product name |
HOT PRESS MACHINE |
Model |
AY214×8/16(3)H1RC |
Total pressure |
1600KN/160T |
Specific pressure |
5.3Kgf/cm2 |
Working layer |
3 |
Platen No.& Size |
4-2500*1300*42mm(Covered with mylar) |
Platen opening |
120mm |
Cylinder No.& Diameter |
10-φ85mm |
Max temperature |
120℃ |
Heating way |
Electric heating with thermic oil |
Heating medium |
Thermic oil |
Installation power |
53.5KW |
Platen opening way |
Manually |
Loading way |
Length side, Manually |
Voltage |
380V 50HZ 3 Phase or as your request |
Packing |
Bare but properly secured |
Gross Weight |
8500.00 kg |
Overall dimension |
3800*1410*2350mm |
Container need |
1*20'GP |
Remark |
The S.S platen is prepared by user |
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation.
1.Good after-sale Services is our Superiority
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Oversea engineer after-sale service is available.
2.Main market
Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.
3.Sample Service
If you want to test the performance of machine ,we can sent sample to you with cost offer.
4.Customized Service
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
Qingdao Steeler Woodworking Machinery Co., Ltd is a professional Manufacturer of various kinds of Sanding Machine, Polishing Machine and other mechanical equipment. The company’s sanding machine series is integrated with Germany, Italy and Taiwan's good mechanical properties, structure and the advanced polishing machine is not only draw lessons from the foreign advanced technology but also and highlights the Steeler people’s innovation, enterprising spirit, continuous research and development, making our polishing machine series the industry's leading edge products.
We have already approved the ISO9000 certification and we are awarded the "National AAA Grade Credit Enterprise" Brand in China. A capable R&D team, strong processing ability, reliable quality assurance, strict testing ensure the company win trust of users.
Rich experience, sophisticated design, advanced manufacturing technology, the company continuously adapt to the market and provide products with better design, performance, efficiency and improved after-sale service, which is the Goal of Steeler people!
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company. STEELER is our brand.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
