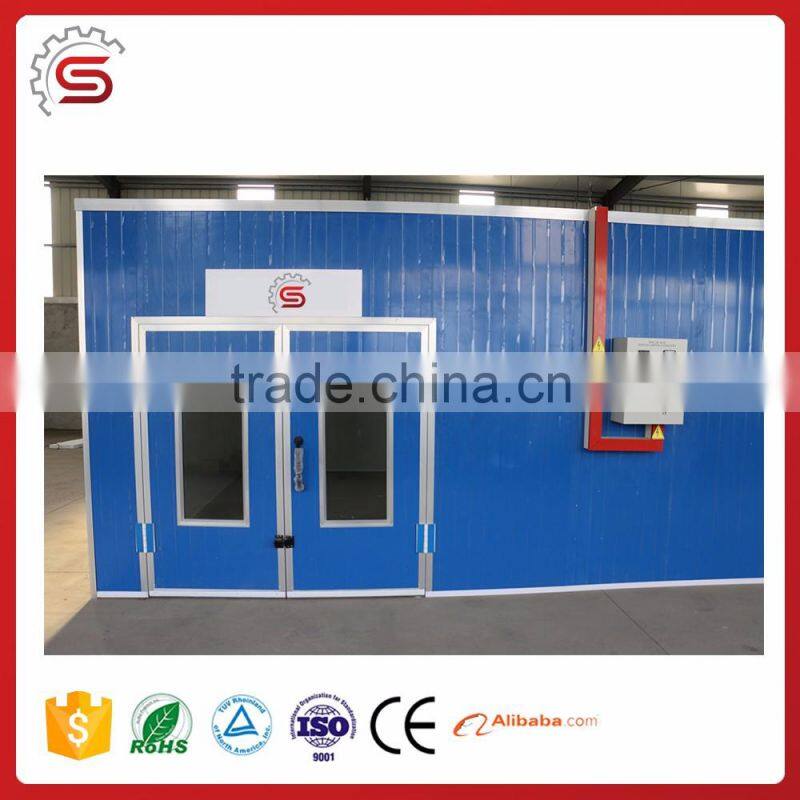

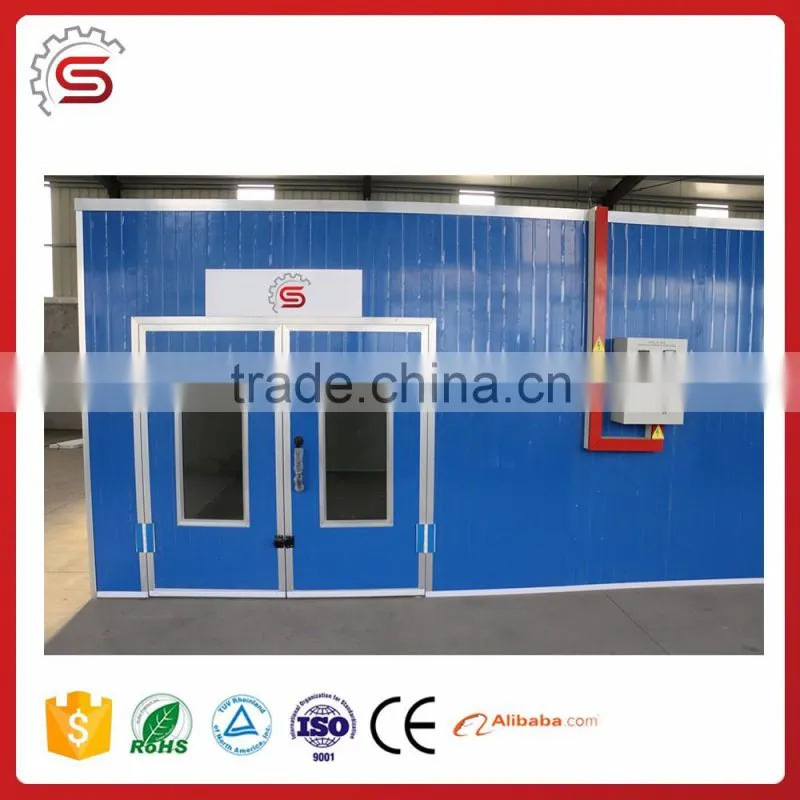

LK-60 Woodworkingn Paint Spray Booth/Furniture Paint-baking Booth
Model# |
LK-60 |
Outside Dimension(mm)L*W*H |
12000*5000*3000 |
Painting Room Dimension(mm)L*W |
3900*4900 |
Drying Room Dimension(mm)L*W |
7950*4900 |
Incoming Door Dimension(mm)L*W |
1900*2000 |
Delivery Door Dimension(mm)L*W |
1900*2000 |
Wall Panels |
EPS with double-ply plater, tongue and groove construction, thickness:50mm |
Lighting |
Painting room: 6units x 3pieces=18piecesx36w lamp; Baking room: 4 pieces x 36w lamp |
Inlet Fan |
2x3kw double-intake centrifugal fans, air capacity: 16000m³/h |
Heating System |
18pieces x1kw carbon fiber far-infrared heater, anti-explsion |
Filter System |
Intake air: Pre-filter, high effeciency filter (ceiling filter); Exhaust air: Water curtain filtering |

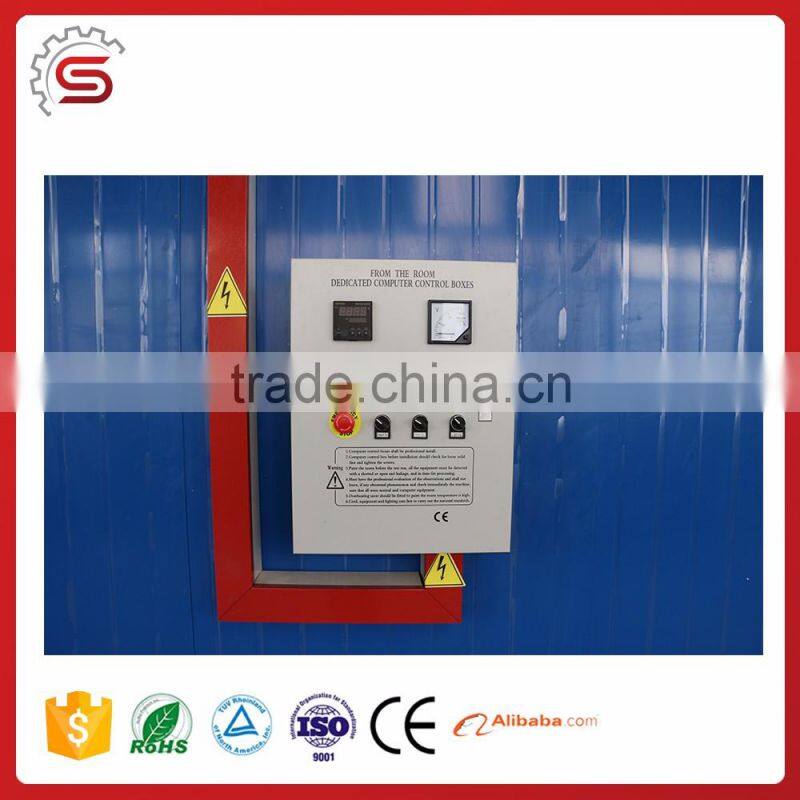

Control System |
Lighting switch, spraying, baking temperature, time setting, emergency stop, temperature controller, power supply |
Total Power |
24.8kw |
1.Packaging details: Stretch film with wooden case or as your request
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms
3.Timely delivery and transportation.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure andthe advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.
We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,hightech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over the world.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users. Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet theusers of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People!
1.We have years of manufacturing woodworking machine,OEM and ODM service available.
2.Main Market
Which have been exported to a lot of country and Regions . Such as Europe , Russia, Southeast Asia . Middle East . North America and south America , Australia .
3.Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
4.Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.Good after-sale Services is our strength
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Our engineers can provide services to overseas.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
