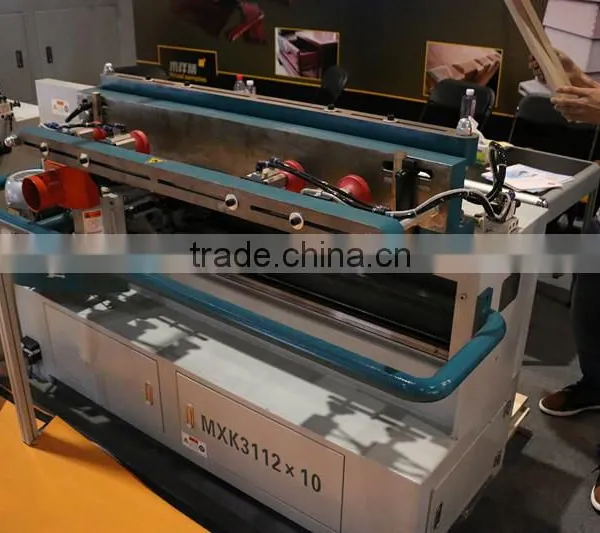

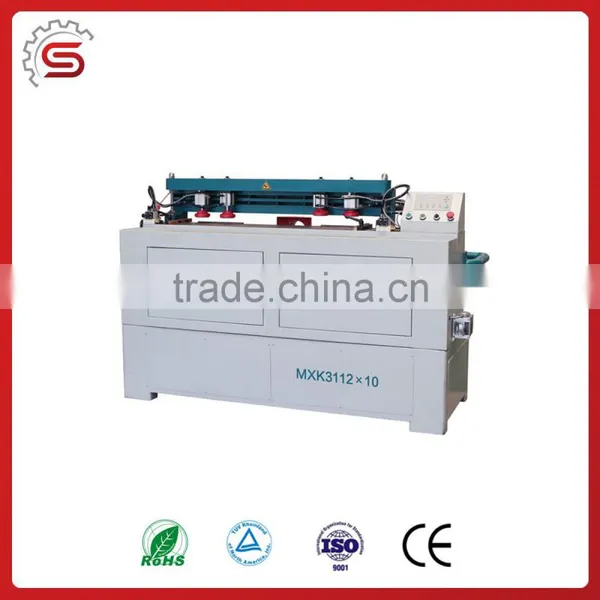

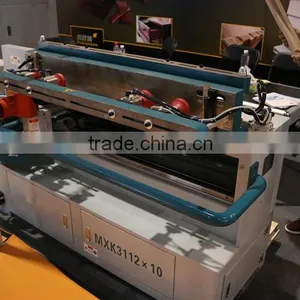

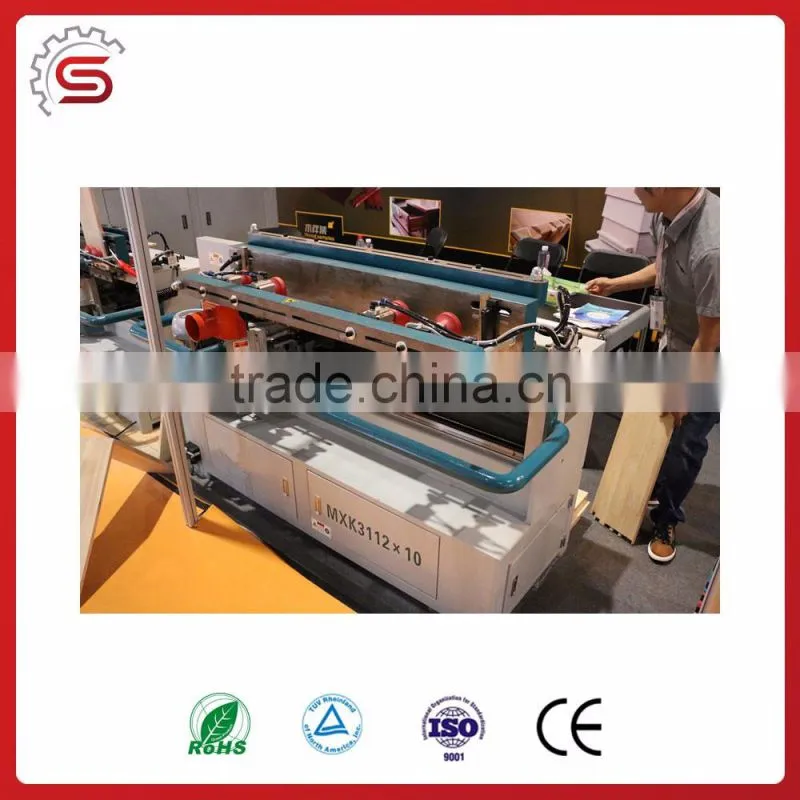

High quality woodworking machine MXK3112X10 Dovetail Tenoner
Technical parameter:
Model: |
MXK3112X10 |
Number of shaft |
1 |
Processing width |
25-1000mm |
Processing Thickness |
12-50mm |
Tenoning Spacing |
Adjustable |
Tenon width |
Adjustable |
Speed of Main shaft |
19000r/min |
Cutting speed |
0-300mm/s |
Net Weight |
608kg |
Install power |
3.5kw |
Description:
The automatic controlling system machine adopts Siemens PLC. The moving system adopts SKF group ABBA high precision ball bearing screw, linear guidetransimission rexroth. The maximum effective cutting speed of 300m/s ,the return rate of 500m/s ,high efficiency.It can process many kinds of shapes of tenon,mortise. SIEMENS,touch screen can be very convenient to enter and modify the processing parameters, tool wear automatic compensation. Operation is extremely simple ,without special training. Running safety, stability, long service life.
Processing Tenon:A B C D E
After sales:
The seller will take charge of guide of the installation, while the buyer have to afford the international round ticket from leaving airport to destination, and other fees like accommodation, insurance in local. A Chinese interpreter is accompanying the guide.
Guarantee: mainframe 1 year and electric component for 6 months with effect from 30 days after arrival of the machine at discharge port.
Detail:
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
1.Good after-sale Services is our Superiority
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Oversea engineer after-sale service is available.
2.Main market
Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.
3.Sample Service
If you want to test the performance of machine ,we can sent sample to you with cost offer.
4.Customized Service
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's
good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,
enterprising spirit,continuous research and development to adapt to the market,make our
polishing machine series equipment industry's leading edge products.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
