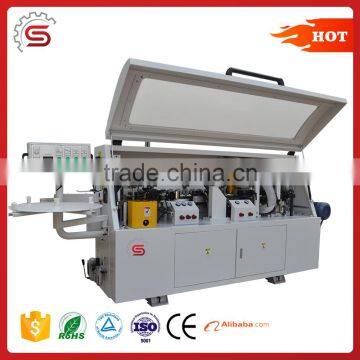

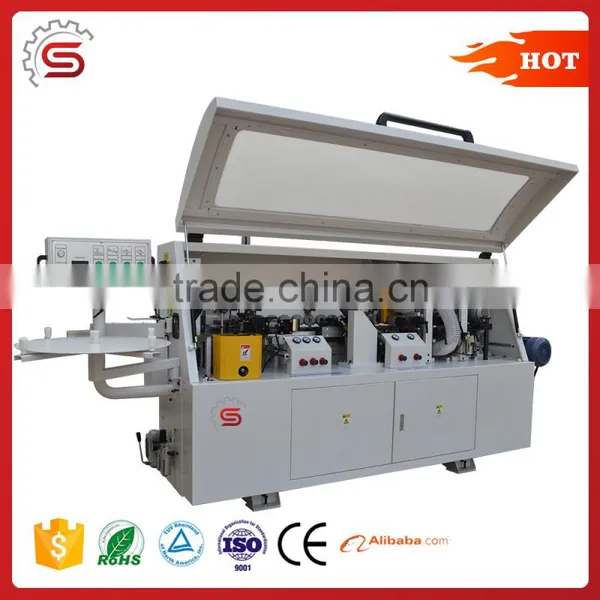

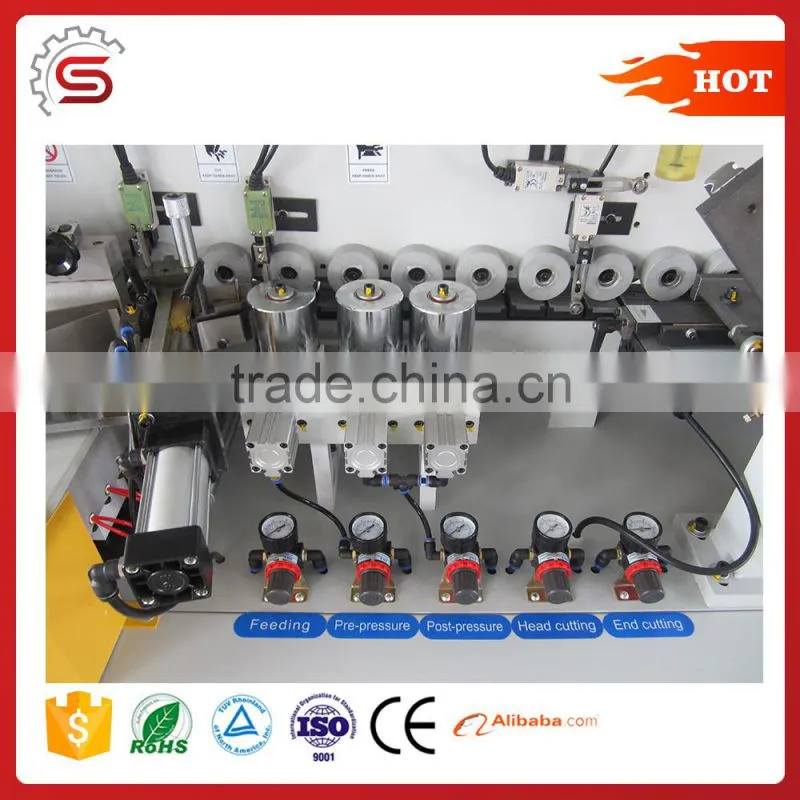

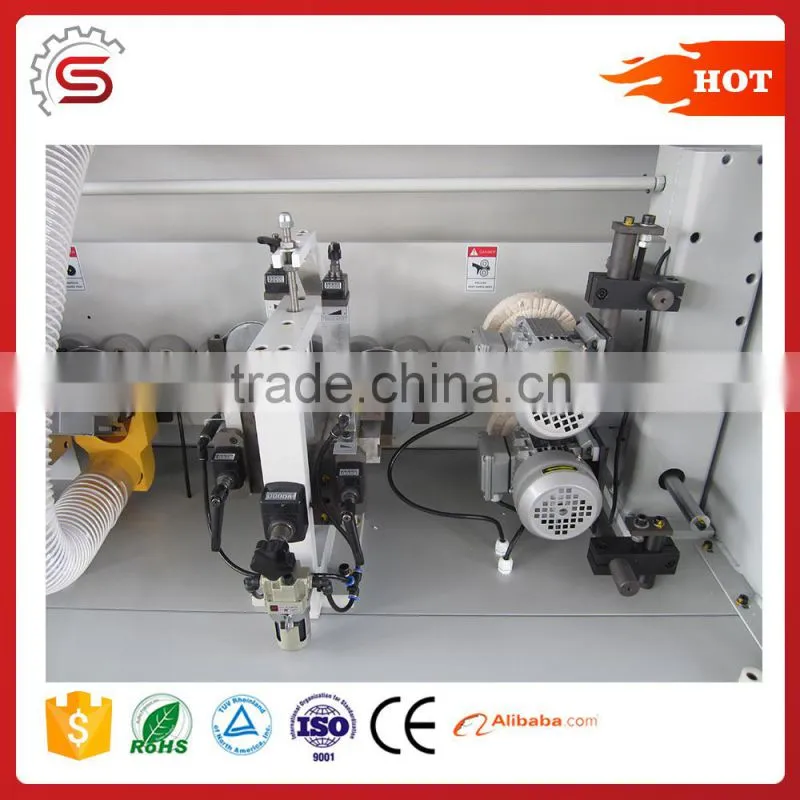

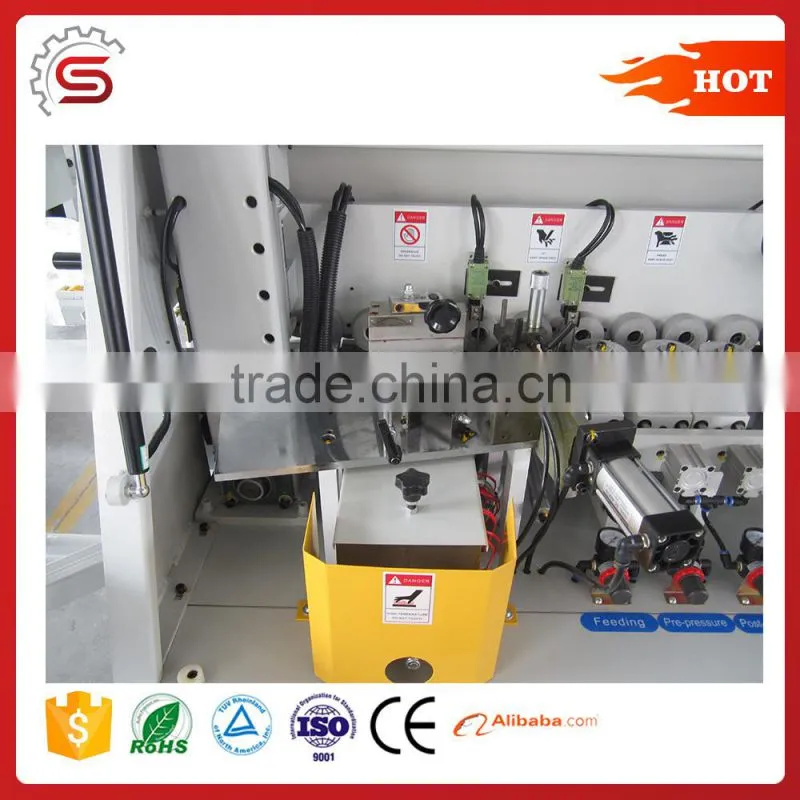

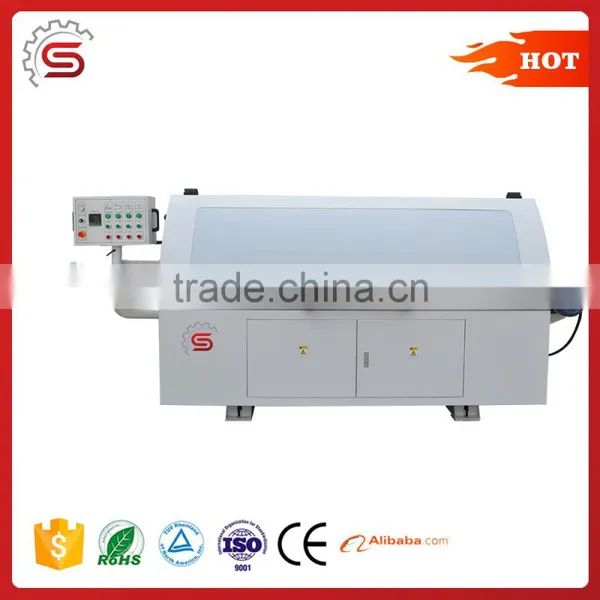

automatic edge banding machine MFZ504A woodworking edge bander machine
Function:

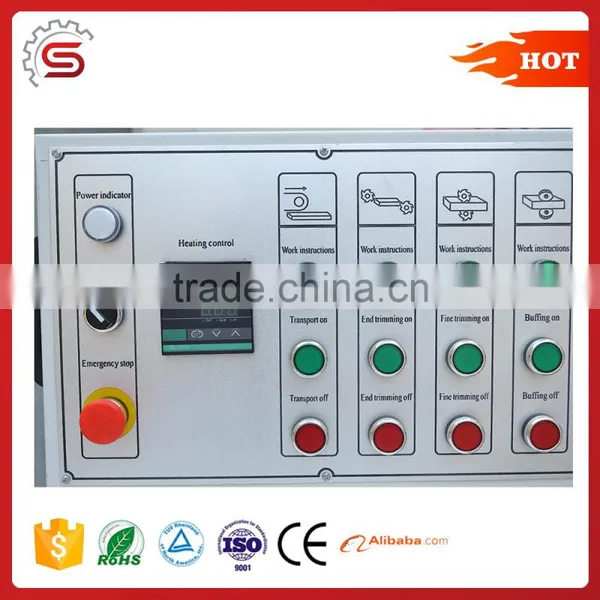

1..Edging 2.Edge cutting 3.End trimming 4.Fine trimming 5.Scraping 6.Buffing
Technical Parameter:
Panel thickness |
10-50mm |
Edging belt thickness |
0.4-3mm |
Min.width of panel |
80mm |
Min.length of panel |
160mm |
Max.size of tape higher than panel (each side) |
2mm |
Panel feeding speed |
<=13m/min |
Pneumatic |
0.7Mpa |
Voltage |
380V 3N/PE 50HZ |

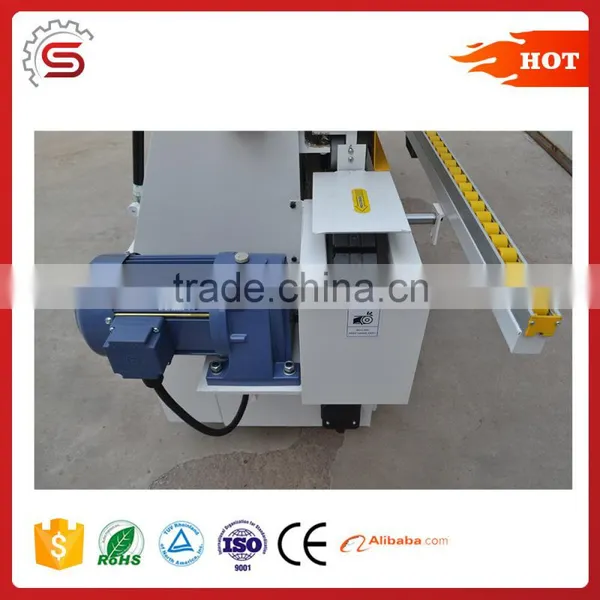

Panel feeding motor |
1.5kw |
Glue axis motor |
0.18kw |
Edge-cutting motor |
0.35kw*2 200HZ 12000r/min |
Fine trimming motor |
0.55kw*2 200HZ 12000r/min |

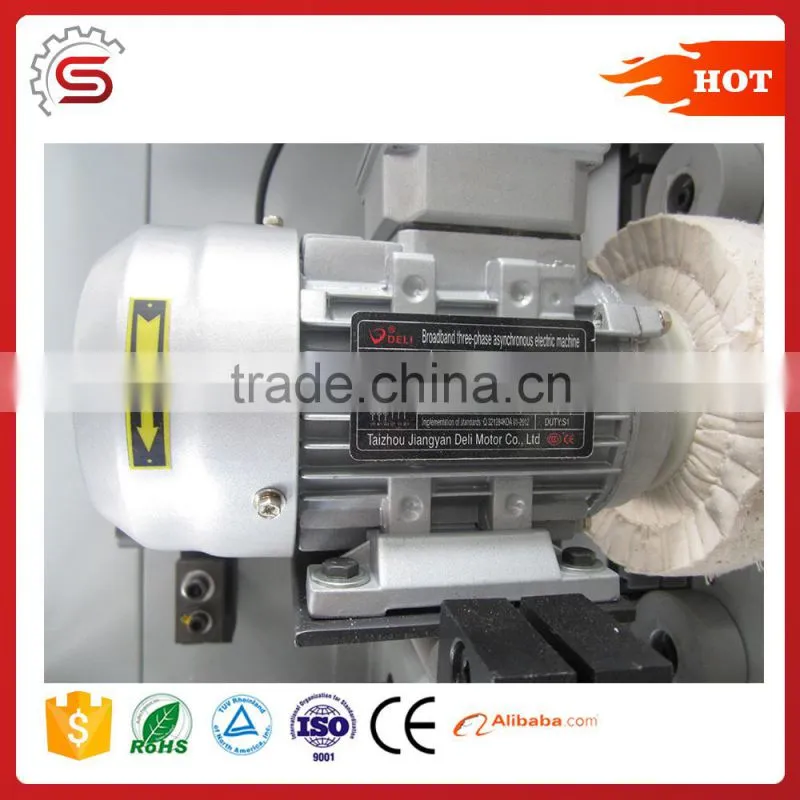

Buffing motor |
0.25kw*2 50HZ 2800r/min |
Heating power of glue tank |
1.5kw |
Secondary heating power |
0.12kw |
Installed power |
5.4kw |
Total current |
21A |
Glue temperature for edging(reference) |
180-200°C |
Overall dimensions |
2700*700*1500mm |
Weight |
900kg |
Product Details:

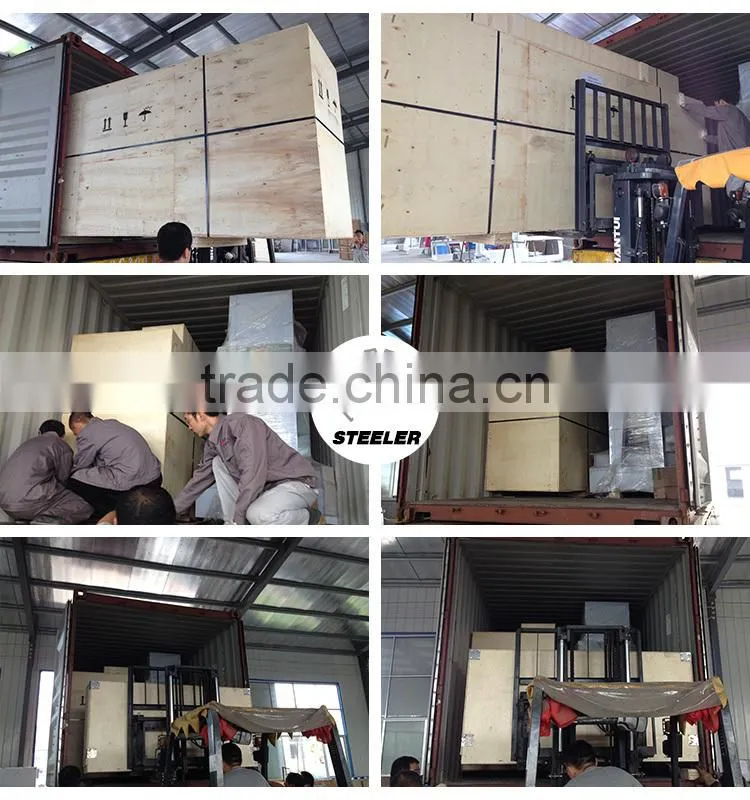

1. Packaging Details: Stretch film with wooden case or as your request
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shippi ng terms!
3.Timely delivery and transportation
We have years of manufacturing woodworking machine.OEM and ODM service available.
Sample Service :
If you want to test the performance of machine ,we can sent sample to you with cost offer .
Customized Service :
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
After-sale Service
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4)Engineers available to service machiner overseas.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding machine,polishing machine and other mechanical equipment manufacturers.The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,continuous research and development to adapt to the market,make our polishing machine series equipment industry's leading edge products.
We have already approved the ISO9000 International quality system certification and the main products through the national certification,access to the national key new products,high-tech products such as the honorary title,by the Chinese enterprise brand quality committee awarded the "National quality credit AAA grade credit enterprise"brand,the company products are sold well all over the world.
A strong R&D team,strong processing power,the reliable quality assurance,strict testing means make the company to win the trust of users.
Rich experience,sophisticated design,advanced manufacturing technology,as well as relevant to the users'communication,make the company continuously introduced to adapt to the market,meet the users of the new product.Quality,efficiency,service,integrity,modest is the goal of the Steeler People !
