Energy Saving Complete Wheat Flour Mill 100t/d~500t/d

Energy Saving Complete Wheat Flour Mill 100t/d~500t/d photo-1
Energy Saving Complete Wheat Flour Mill 100t/d~500t/d photo-2
Energy Saving Complete Wheat Flour Mill 100t/d~500t/d photo-3
Energy Saving Complete Wheat Flour Mill 100t/d~500t/d photo-4
Energy Saving Complete Wheat Flour Mill 100t/d~500t/d photo-5
Energy Saving Complete Wheat Flour Mill 100t/d~500t/d photo-6
US$ 8,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Maosheng
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Maosheng
Model Number Wheat Flour Milling Machine
Production Capacity Depend
Voltage 220V/380V
Power(W) 7.5kw
Weight 300kg
Dimension(L*W*H) 37*7.5*18.5-87*12*30
Certification IS0/CE
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Energy saving Complete Wheat Flour Mill 100t/d~500t/d



1. The clean part wheat flour milling machine:

Includes beating, screening, destoner, magnetic separator and dampening. Different capacity machine line has different number of beat, screen and destoner.

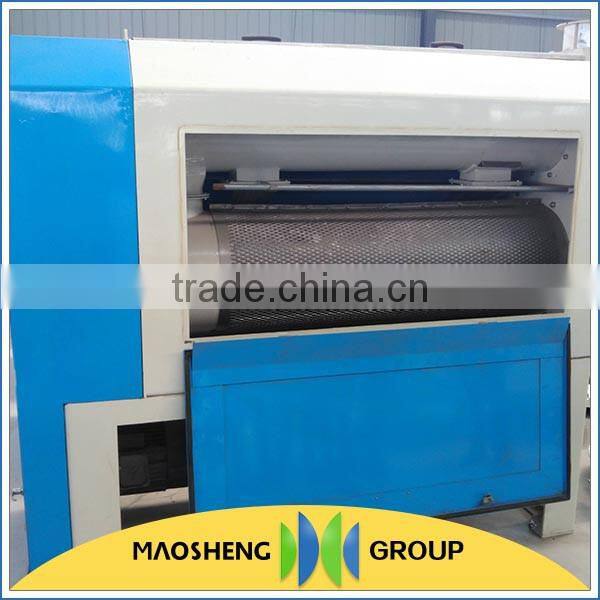

1.1 wheat scourer

Energy saving Complete Wheat Flour Mill 100t/d~500t/d



Technical Parameter:

Technical Parameter Drum Diameter(mm) Drum Length(mm)

Speed

(mm)

Capacity

(T/H)

Power

(KW)

Weight

(KG)

L*W*H

(mm)

FDMWA30*60 Φ300 600 650-780 ≤12 7.5-15 760 1220*600*1615
FDMWA45*80 Φ450 800 437-520 12-25 15-22 980 1460*800*1876

1.2 Screening: to remove large and small impurities in the wheat seed by make the wheat go through vibrating sieve and aspiration sieve.

Energy saving Complete Wheat Flour Mill 100t/d~500t/d

1.3 Destoner: mainly remove stone in the wheat to prevent them milled into the flour and also protect the roller on the milling process.

 Energy saving Complete Wheat Flour Mill 100t/d~500t/d

1.4 Magnetic separator: remove metal material in the wheat to keep the roller safe and also avoid flour explosion accident of spark caused by the impact of the metal impurities and the machine.

1.5 Dampening: dampening the wheat bran before mill to ensure the bran’s integrity during the milling processing, avoid the bran going into the flour to keep flour quality.



2. The flour milling part of wheat flour milling machine:

 Include different number of mill and sifter to mill the wheat and separate the flour and bran.

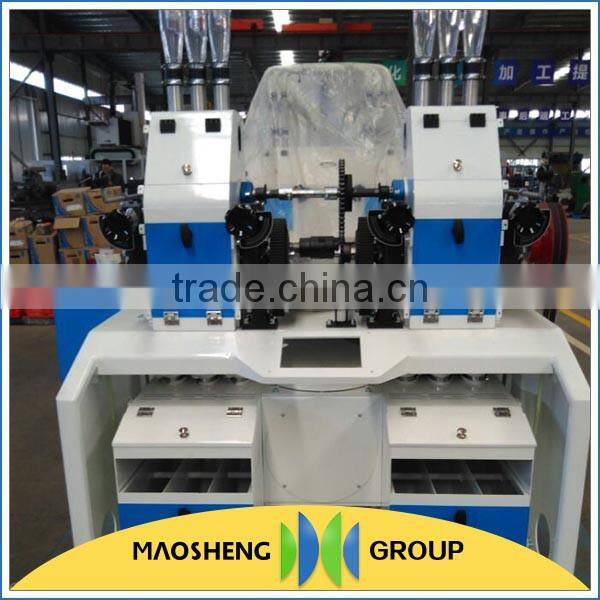

(1) Mill: mill the wheat to break the integrity by the roller moving

Energy saving Complete Wheat Flour Mill 100t/d~500t/d

(2) Sifter: to separate the flour and bran, also separate large size and small size to ensure flour quality.

Energy saving Complete Wheat Flour Mill 100t/d~500t/d

3. Packing part:

The packing part can be manual also can be auto, this can be designed according to requirement and machine capacity.

Energy saving Complete Wheat Flour Mill 100t/d~500t/d
