full continuous shea butter oil extract mill

full continuous shea butter oil extract mill

1. Shea butter oil extract mill plant process:

♥ First, magnetic separation,cleaning, flaking, cooking, expelling, in the pretreatment plant;

oil seeds→ magnetic box → cleaning →flaking → oil pressing → oil filtration→ extraction plant.

♥ Then,the pre-pressing cake goes to extraction workshop to finishing extraction process;

Solvent
↓
extractor → miscella → 1st, 2nd evaporation → stripper → crude oil
↓
Wet meal → DTDC toaster → cake.

♥ Finally,the crude oil needs to be refined to get refined oil, after degumming, deacidification, decoloration, dewaxing, deodorization.

Crude oil → degumming ,deacidification→ decolorization →deodorization → refined oil.

2.Main parts function for shea butter oil extract mill plant

♥ Extracting:To extract the oil in the cake by solvent, the general solvent is 6# extraction solvent oil or commercial hexane.
♥ Desolventising:To remove and recover the solvent in the meal; Dry and cool down the meal at the same time.
♥ Evaporating and stripping:Heating the the miscella by indirect steam, so that can vaporize the solvent and concentrate the miscella.
♥ Solvent recycle: This process is to recover the solvent, decrease solvent comsuption, keep safety prodution and improve product quality.

3. Extractor types for shea butter oil extract mill plant

Level rotation extractor, loop type extractor, chain extractor

4. Extraction methods for shea butter oil extract mill plant:

Use organic solvent through soaking or spraying contact methods to extract oil from oilseeds.

5.Advantages of extraction craft for shea butter oil extract mill plant

♥ High oil yield, low residual oil in meal;

♥ Low labor intensity;

♥ Good working environment;

♥ Good meal quality.

♥ Negative pressure evaporation helps to improve crude oil quality.

6. Company Introduction

Henan Maosheng Group was founded in 1976, after nearly 40 years of development and growth, has become a well-known Chinese grain and oil machinery manufacturing enterprises with import and export rights, in 2002 passed the ISO9001 quality management system certification, National Food Processing Equipment Engineering Technology Research Center, the National agro-processing technology and equipment research and development sub-centers and the provincial post-doctoral research base development platform.
The company has total assets of over 400 million yuan, has a production plant three, with a total area of 900 mu, employees nearly 3,000 people. Now capable of producing more than 60 series over 300 kinds of specifications of the various types of grain and oil processing machinery (including wheat processing, corn processing, sesame cleaning, processing garlic, wine, grain grinding, etc.), and to undertake 10 to 1000 tons / day and food processing complete 5 to 12 t / h turnkey seed processing equipment, products sold in more than 30 provinces, municipalities, autonomous regions and exported to Southeast Asia, Africa, Europe and the United States, dozens of countries and regions. Leading products MS series of electrical control milling machine, FSFG series of new plansifter was named national key new products, high-tech products in Henan Province, Henan Province, brand-name products. "maosheng" brand was named the National milling machine well-known brands, "maosheng" trademark in Henan Province.

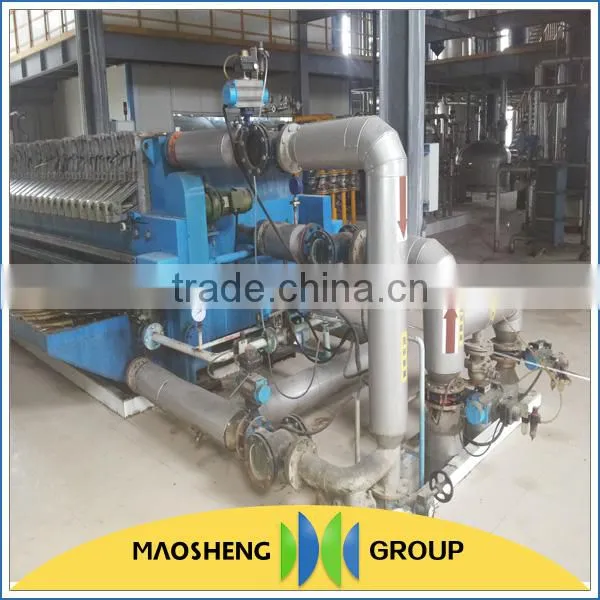

7. Installation site

According to the different equipment, we will design different transportation scheme, ensure the safety of the equipment in the process of transportation.

8. Our Service

1. Ensure to timely provide complete sets of equipment and accessories.

2. Ensure that one-time installation debugging acceptance.

3. To provide high quality material with preferential price.

4. Priority to provide customer our new craftworks and products.

5. Free training technological operator to ensure the trained staff can operation independently.

6. In the installation process,we will appoint a installation supervision staff on the spot.

7. we will offer an experienced project manager, organize a good installation team for the work of field installation debugging.

8. In the warranty period, all because of the quality of products has caused the damage or failure of equipment, suppliers will take the responsibility for the free repair and replacing spare part.

9. Due to the damage caused by the customer,we only charge material costs for repair and replacement.

10. After the receipt of customers notice,we will suggests the method to solve problem within six hours,or send specialist to the site to solve the problem within twenty four hours.

9. Contact person
