High Quality 30TPD/50TPD/100TPD Brand Rice Bran Oil Production Line

High quality 30TPD/50TPD/100TPD brand rice bran oil production line

Rice bran→ Screen →  Magnetic separation   →     Conditioning

                                                                                            ↓

Crude oil← Solvent extraction ← Drying &Cooling ← Extrusion

        ↓
Degumming →Deacidification →Decolorization →  Deodorization

                                                                                              ↓

                                                              Refined oil  ← Dewaxing

(1) The material (for pretreatment) is sent to rotary extraction by the scraper conveyor. The material will extracted by the solvent or mix oil. After this step, we will get meal and mix oil.

(2) Meal is sent to toaster. Through the toaster, the solvent in the meal will separate from the meal. The solvent goes to condenser and is recycled to rotary extraction.

(3) After the mix oil from the rotary extraction enters into 1st evaporator and 2nd evaporator, most of the solvent in the mix oil is separated.

(4) The mix oil from 2nd evaporator goes to stripping tower and almost all the solvent is separated. From the stripping tower, we can get crude oil and solvent. The solvent is sent to condenser and is recycled to rotary extraction.

(1) Solvent pumps: continuously spray solvent to the rotary-type extractor

(2).Roary extractor: Spray and soak the pre-pressed cake with solvent so that oil fats can be dissolved in solvent(form miscella). After processing, you can get wet meal and miscella (mixed oil).

(3). DTDC: usd to separate the solvent from the wet meal.

(4). Miscella tank 1st: pump the miscella (oil with solvent) in to the miscella 1st , and then add 10% saline water to it. The phospholipid and impurities in the miscella will react with the saline wter, at last the reactant precipitate, reaching the goal of purifying.

(5). Miscella tank 2nd: the purified miscella will be pumped into it.

(6). Miscella stripping: it will remove the remaining solvent in miscella. And the solvent will be discharged to condenser for recycling.

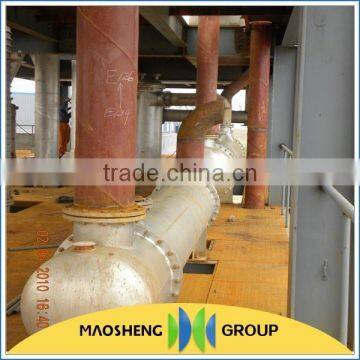

(7). condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

Main business of Maosheng Group:

• 10-500T/H oil material first cleaning,drying and storage section turn-key project.

• 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.

• Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).

• 30-1000T/D oil continuous grade two or one physical (chemical) refining production line.

• 20-600T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project.

•  10-200T/D Fatty acid esterification production cooking oil production line.

• 10-3000T/D Wheat and corn flour milling production line.
