Finely Processed Mustard Grinding Machine
- 30 Set / Sets per Month
- Qingdao Tianjin Shanghai or as your requirement
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Usage | Other, Mustard Oil Presser | |
| Type | Other, Cold & Hot Pressing Machine | Automatic Grade | Automatic | |
| Production Capacity | 100% | Place of Origin | Henan, China | |
| Brand Name | MS | Model Number | MS | |
| Voltage | 220V/380V/440V | Power(W) | According to the capacity | |
| Dimension(L*W*H) | According to the capacity | Weight | According to the capacity | |
| Certification | ISO9001:2000,CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

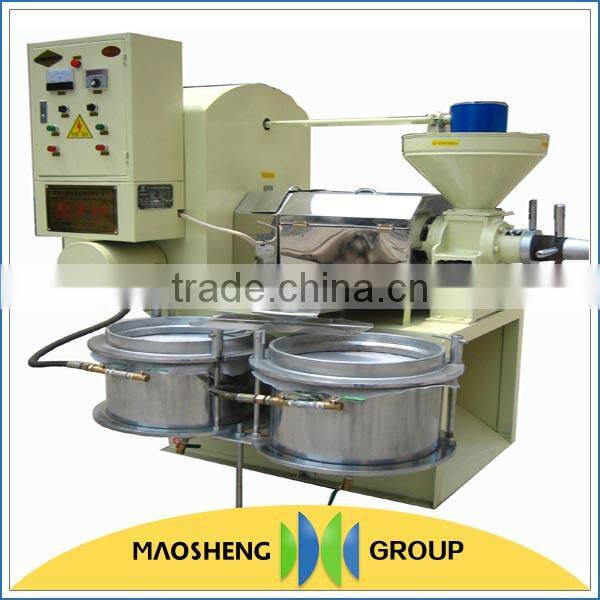

Mustard Grinding Machine
Eating healthy oil, and as healthy people!
Operation Of Mustard Grinding Machine
When oil presses operating prepared material enters extruding chamber from the hopper and then moves forwards by the rotating pressing screw and that is pressed. Under the high-pressure condition in the chamber, friction between material and screw, between material and chamber will be created, which also creats friction and relative movement amoong material particles. On the other hand, root diameter of the pressing screw carries larger from one end to the other, hence. When rotating, it not only pushes particles moving forwards but turns the moutwards as well, meanwhile, particles adjacent the screw will rotation along with screw rotating, causing every particle inside the chamber to possess different speed. Therefore, relative movement among particle creats heat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil's elastic resulting hing oil productivity.
Main Technical Parameters Of Mustard Grinding Machine
| Model | Squeeze worm rotation speed | Exterior size (mm) | Capacity | With power(kw) | ||
| Main engine | Vacuum pump | Heater | ||||
| 6YL-80 | 30-45tun/min | 1650x1150x1750 | 80-150kg/h | Y160L-6-5.5KW | Y90S-4-0.55KW | 2KW |
| 6YL-100 | 30-40turn/min | 1950x1300x1900 | 150-250kg/h | Y160M-6-7.5 | Y90S-4-1.1 | 3KW |
| 6YL-120 | 30-40turn/min | 2050x1350x2000 | 200-300kg/h | Y160L-6-11KW | Y100L1-4-1.5KW | 3.3KW |
| 6YL-130 | 28-40turn/min | 2200x1600x2150 | 250-400kg/h | Y180L-6-15KW | Y100L1-4-2.2KW | 3.8KW |
| 6YL-160 | 28-40turn/min | 2500x1600x2500 | 400-600kg/h | Y200L-6-18.5KW | Y100L1-4-2.2KW | 4KW |
| 6YL-180 | 28-38turn/min | 2750 x1750 x2350 | 800-1000kg/h | 6-22kw | 2.2kw | 3kw |
Lubrication Of Mustard Grinding Machine
| No. | Lubrication Part | lubricate | Time Span | Replacement Period |
| 1 | Adjusting bolt | Mechanical oil No. 20 | 1-2time/day | |
| 2 | Bevel gear | Mechanical oil No. 20 | 1-2time/day | |
| 3 | Bearing bush | Mechanical oil No. 20 | 1-2time/day | |
| 4 | Gearbox | Mechanical oil No. 20 | 12KG for 1st Runing | six months |
| 5 | Bearing | Grease | Per year |
Preatment Process Of Mustard Grinding Machine
1. Cleaning
Using the de-stoner, vibrate sieve and other cleaning equipment to clean the stone,dust and other impurity,in order to get the high quality cake and oil and reduce the wastage of the machine.
2.Softening
Using the softener to adjust the material’s temperature and moisture,making the temperature reach 70-75 centigrade,in order to get oil easily.
3. Flaking
Using the flaking mill to make the material into flake,increasing the surface area of exit oil.The thickness should be 0.3-0.35mm, it maybe broken easily if it is too thin.
Evaporating the water, to control the moisture at 2%-5% or 3%-5%.
Though the pressing machine make the oil separate from the cake.
1 Different combinations of process can process various oil plants in one workshop.
2 Use special intensified pretreatment technology for seed oil to make it more aroma.
3 Adopt advanced and reliable shelling technology to meet higher requirement for protein content in meal.
4 Extrusion treatment is used for raw material with hard extraction, large size powder and large capacity,which can reduce residual oil and solvent consumption,and increase the capacity by 50-80percent.
5 The new technology of shelling and low-temperature treatment can ensure high protein and least denaturatio.
Product Overviews About Mustard Grinding Machine

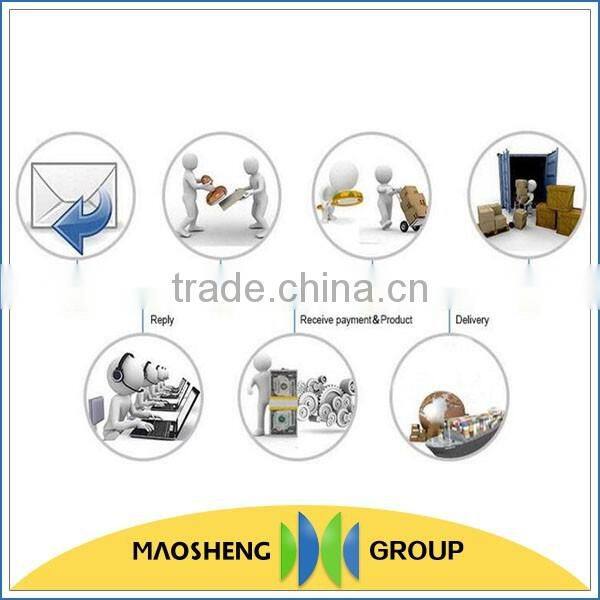

Trading Process Of Mustard Grinding Machine
Our Services About Mustard Grinding Machine
* Inquiry and consulting support.
* View our Factory.
* Write the project feasibility study report
* Undertake project design including technology, civil engineering, steel structure, machinery, electric, automation
* Optimizing plant design for the existing technology, make the production and business more competitive. The automation reconstruction, intelligence control, stable and safety operation for the existing production line
2.After-Sales Service
* Training how to install the machine, training how to use the machine,maintainenance.
* Engineers available to service machinery overseas.Providing professional support for the consultation of engineering technology and technical problem.
FAQ About Mustard Grinding Machine
Q1 : Which kind of materials can be processed?
All kinds of oil seeds. For example, sunflower seeds, rice bran, corn germ, palm fruit, palm kernel,coconut,peanut, soybean, sesame, cottonseeds, rapeseed, etc.
Q2 : What's the capacity?
Generally, 10-3000 tons per day. We can also manufacture as per customers' requirements.
Q3 : How long is the warranty?
The main parts of the machine come with one year warranty and after the expiration our engineer is available overseas to do the maintenance work.
Q4 : Can the machine be installed locally?
We can do the turn-key projects or other services according to customers' requirements, according to this condition,our services can be manufacturing, purchasing, transporting, installation, training labors etc.
Q5 : How to operate the machine?
Our engineers will be available to guide and train your labors how to operate and run the machine.
