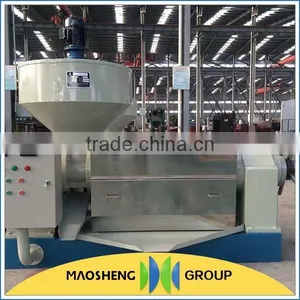

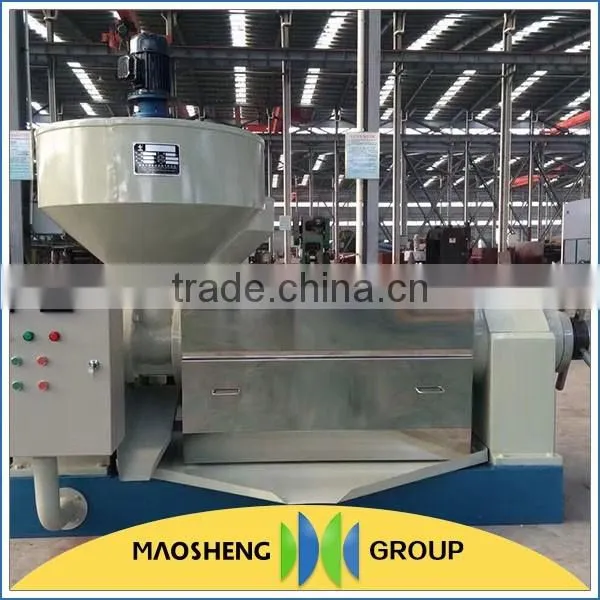

continuous technology automatic mustard oil machine with CE

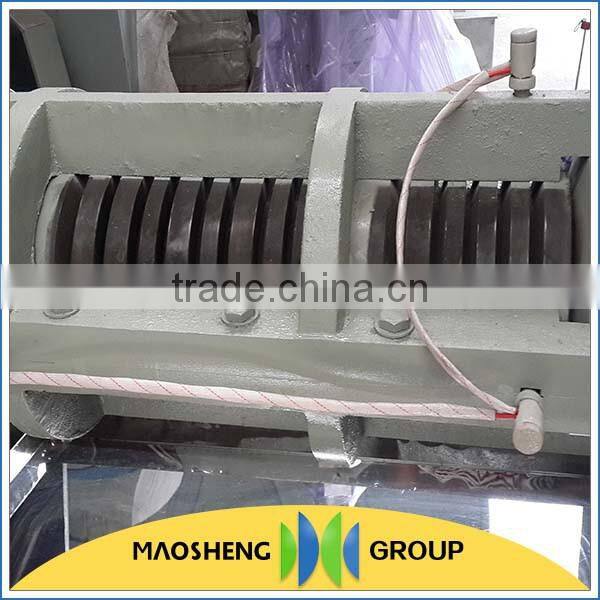

Working principle
1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.
Technical parameter
Model | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
Screw speed | 30-40 r/min | 30-40 r/min | 28-40 r/min | 28-40 r/min |
Gear ratio | 15/40x15/55=1:9.78 | 15/34x15/55=1:9.59 | 15/38x19/48=1:7.38 | 15/38x15/52=1:8.78 |
Dimension() | 1950x1300x1900 | 2050x1350x2000 | 2200x1600x2150 | 2500x1600x2500 |
Productivity | 150-250kg/h | 200-300kg/h | 250-400kg/h | 400-600kg/h |
Power | Y160M-6-7.5KW | Y160L-6-11KW | Y180L-6-15KW | Y200L-6-18.5KW |
Company introduction
Maosheng group grain and oil machinery Co., Ltd. was founded in 1976, after nearly 40 years of development and growth, has become a well-known Chinese grain and oil machinery manufacturing enterprises with import and export rights, in 2002 passed the ISO9001 quality management system certification, National Food Processing Equipment Engineering Technology Research Center, the National agro-processing technology and equipment research and development sub-centers and the provincial post-doctoral research base development platform.
• 10-500T/H oil material first cleaning,drying and storage section turn-key project.
• 100-3000 T/D oil pretreatment, shelling and pre-press workshop turnkey project (soybean hot peeling, bean skin crushing; the soybean extrusion, high oil contained pre-press cake extrusion, and high oil contained embryos puffed; of direct puffed). Rice bran production line turn-key project.
• Leaching workshop turnkey project (Towline extractor, Rotocel extractor, loop type extractor, DTDC separated machine, the full negative pressure evaporation, paraffin wax recovery, leaching workshop degum, phospholipid concentrate).
• 30-5000T/D oil continuous grade two or one physical (chemical) refining production line.
• 10-6000T/D sunflower oil, rice bran oil, corn germ oil dewaxing turn-key project
• 10-2000T/D Fatty acid esterification production cooking oil production line.
Our advantages
We are now a leading company in oil production plant field.We supply various oil production plant and
connected equipments.
(1) High oil yield , obvious economic benefit .
(2) Lower residual oil rate in the dry meal .
(3) Improving the quality of the meal .
(4) Low processing cost , high productivity.
(5) Saving energy,saving labor.
Our services
1.Ensure providing complete equipment and its accessories on time.
2.Ensure the installation and adjustment are once accepted.
3.Ensure providing high-quality equipments with competitive price.
4.Providing new products and advanced technology preferentially;
5.Providing the operating technicians professional training to ensure operate independently.
6.Appointing you a inspector during the installation process.
7.Arranging an professional installation team which will be managed by our PM.
FAQ
Customer visit
Our goods have been sold all over the country and exported to more than 30 countries and regions,such as Russia,India,South Africa,Ukraine,Nepal,Egypt,Pakistan,Bangladesh,Indonesia,Serbia,Romania,Nigeria,
Ethiopia,Paraguay and so on. Hereby,I attach some pictures of customer visiting us.
Packaging & Shipping
Contact me
