Factory Supply Good Quality Almond Oil Mill in China
factory supply good quality almond oil mill in China
1. Structure and operating principle of almond oil mill
1) Our oil press machine is composed of feeder, gearbox, pressing cage, screw shaft and machine stand etc.The Fully-automatic oil machine also have oil filter and heating system.
2) It utilize the screw shaft that is setup with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.
3) Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;
4) Cake thickness can be adjusted once the machinery stop running;
5) Final oil is high quality, good smell, and high yield rate.
2. Pressing raw materials of almond oil mill
The oil press machine is an advanced oil seed processing machine, characterized by their high oil output rate, good quality, simple design, easy and continuous operation. The oil press machine can widely be used to process various oil materials, such as rapeseeds, peanut, soybean, sesame, sunflower seeds, copra, palm kernel, rapeseed, flax seed, cotton seed, hemp seed, pumpkin seeds, castor seeds, tea seed, canola etc vegetable seeds and the oil content crops.
3. Some models of almond oil mill
| Model | 6YL-100 | 6YL-120 | 6YL-130 | 6YL-160 |
| Screw speed | 30-40 r/min | 30-40 r/min | 28-40 r/min | 28-40 r/min |
| Gear ratio | 15/40x15/55=1:9.78 | 15/34x15/55=1:9.59 | 15/38x19/48=1:7.38 | 15/38x15/52=1:8.78 |
| Dimension | 1950x1300x1900 | 2050x1350x2000 | 2200x1600x2150 | 2500x1600x2500 |
| Productivity | 150-250kg/h | 200-300kg/h | 250-400kg/h | 400-600kg/h |
| Power | Y160M-6-7.5KW | Y160L-6-11KW | Y180L-6-15KW | Y200L-6-18.5KW |

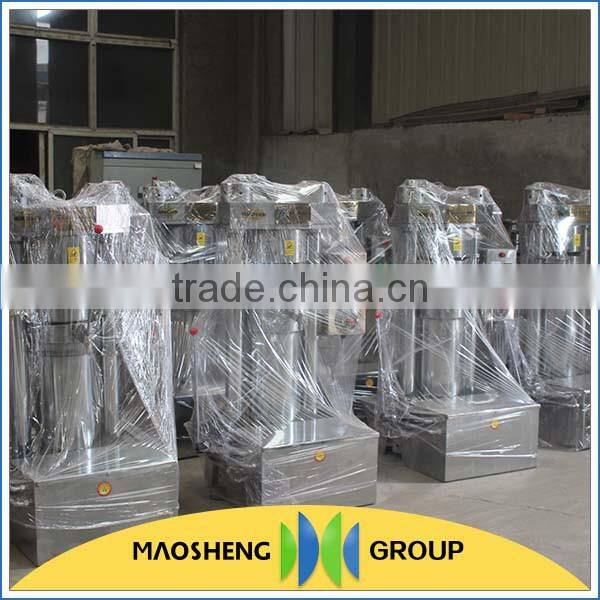

4. Pictures of almond oil mill
5. Spare parts of almond oil mill
According to the different equipment, we will design different transportation scheme, ensure the safety of the equipment in the process of transportation.

Henan Maosheng Group was founded in 1976. After forty years of development and growth, the company has become a well-known grain and oil machinery manufacturing enterprise in China with import and export rights. In 2002, our company passed ISO9001 Quality Management System Certificate.
It is now capable of producing more than 300 specifications of grain and oil processing machinery divided into 60 series
and undertaking 10-3000 ton/day full set of food processing equipment and 5-12 ton/hour full set of seed processing equipment turnkey projects. Our equipment has already exported to over 30 countries and regions in the world.
