Automatic wheat flour powder packing machine
Range of Application:
Suitable for powder (wheat flour,food additive and chemical, etc)’s weighing, packaging, bag-closing and conveying.
Features:
- Easy installation
- Auto Weighing, auto Sewing, auto thread cutting
- Error automatically amended, more or less alarming and trouble self-inspected functions, etc
- Advanced air return design, which lead to little dust;
- There is discharging organ provided for medium pachage. New style of bag-sewing machine is optional.
- Printer interface is reservated. Production data of number and total wight of packages can be printed out.
- RS232 seral interface is reservated, which can communicated with outer management system
features of full automatic flour packing machine
1. full stainless steel production process
2. LCD touch screen, PLC control technology, simple operation
3. independent suspension sensors, signal transmission stability and ensure weighing accuracy
4. host, conveyor belts, sewing machine, networking controller, ensure user-friendly operation and reduce labor intensity
5. solve similar products Pneumatic card open bag landing powder spills, turning bag phenomenon
6. infrared sensor, three-speed feeding system, high weighing accuracy
Technical Parameters:
Model | TQ-5BW | TQ-15BW | TQ-25BW | TQ-50BW |
Weighing range(kg) | 1-5 | 5-15 | 10-25 | 25-50 |
Operation Speed (bags/h) | >=280 | >=280 | >=200 | >=200 |
Accuracy Grade | 0.2%FS | 0.2%FS | 0.2%FS | 0.2%FS |
Working temperature | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
Working humidity | <90% | <90% | <90% | <90% |
Division value (g) | 5 | 5 | 10 | 10 |
Power | AC380V50HZ | AC380V50HZ | AC380V50HZ | AC380V50HZ |
Air, air expenditure | 0.4~0.8MPa 1m3/h | 0.4~0.8MPa 1m3/h | 0.4~0.8MPa 1m3/h | 0.4~0.8MPa 1m3/h |

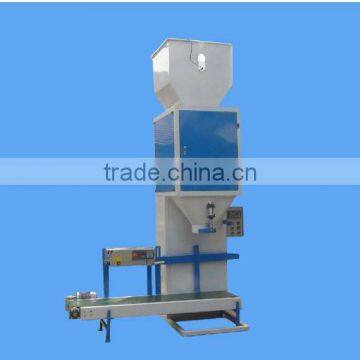

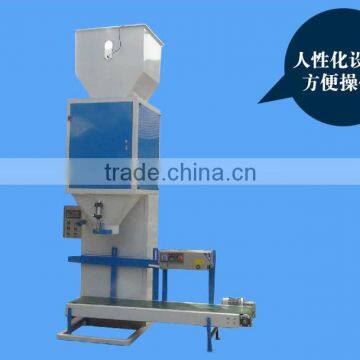

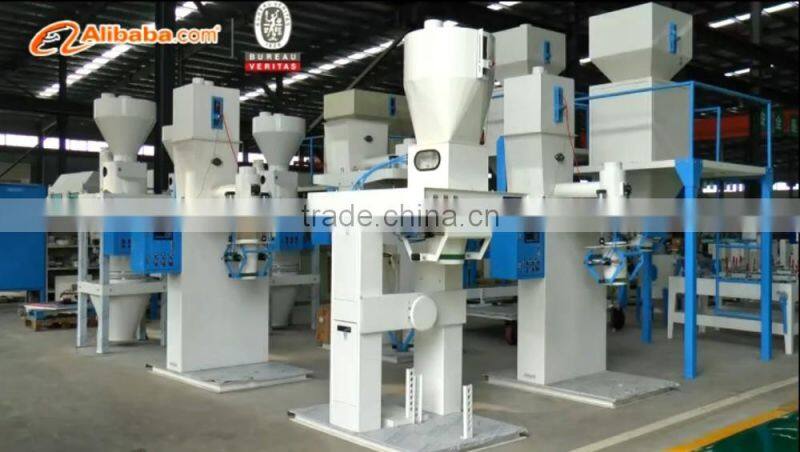

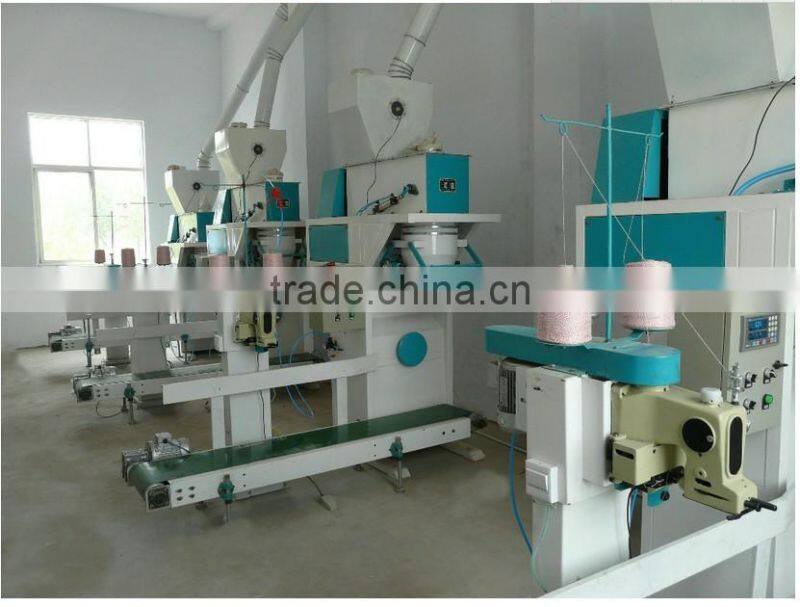

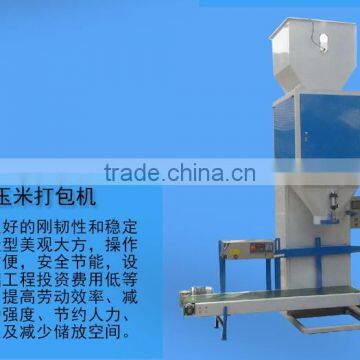

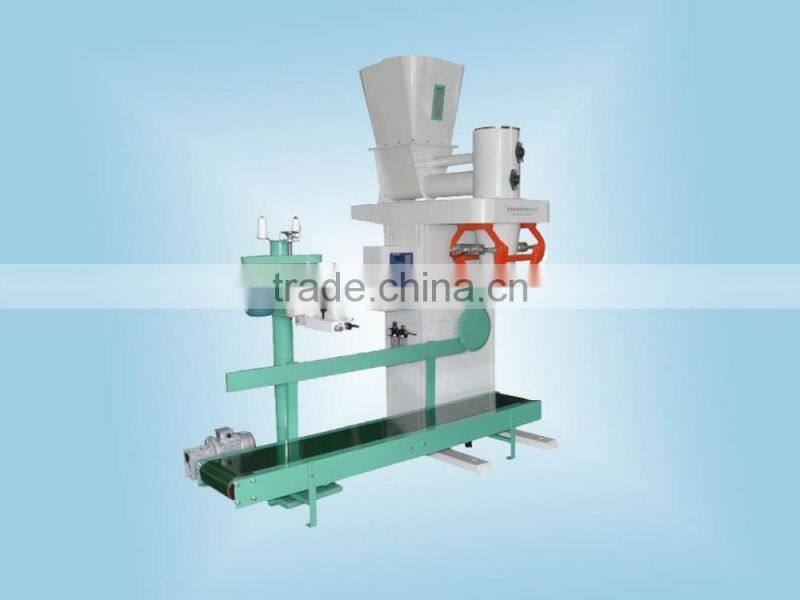

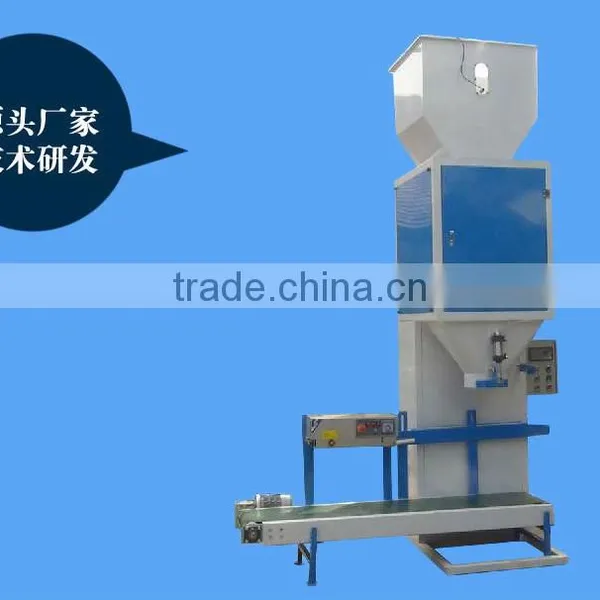

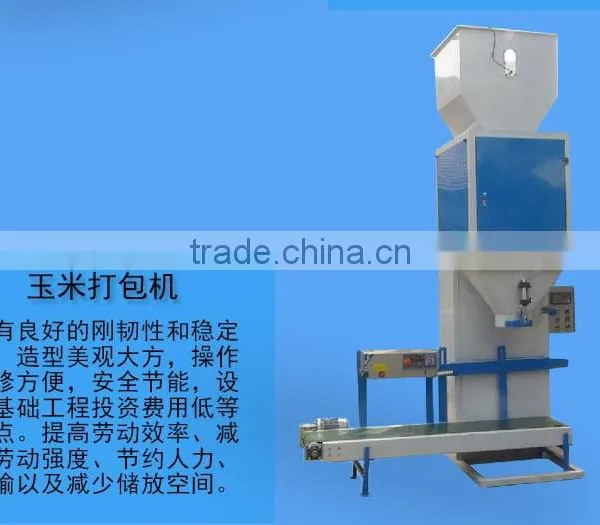

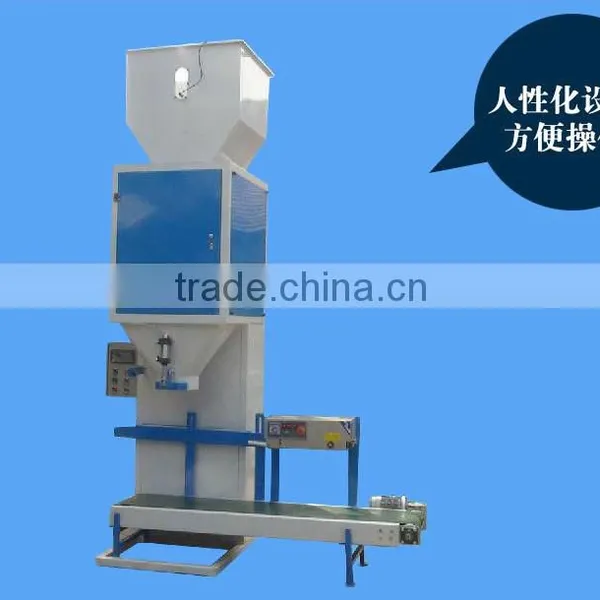

More pictures of flour weighing and packing machine:
1. The machine will be packed with the protect film inner and water-proof outside.
2. If the machine less than a container, wooden case packing is necessary.
3. The machine is fixed by steel roper in the container.
4. Others to make sure the machine is in good condition when arrived the destination.
Shipping Detail:
1, Arrange the machine within 30 days after your order be confirmed and received your deposit..
2, Arrange the shipment within 10 days after we received your full payments
Corn peeling-Breaking degerminator , maize grits mealie milling machine, corn mealie meal grinder, maize flour milling machine, corn grits milling machine, maize mealie meal grinder
The most outunderstand is the key component of lean manufacturing materials and technilogy to ensure the formulation materials and technilogy to ensure the ultra-high precision and long life.machine, mini wheat miller, rice mill machinery,wheat flour machine, grinder machine, rice mill machine,milling machine, milling machine supplier, rice milling machine, complete wheat milling plant, flour mill price, corn grinder,small corn mill grinder for sale
Q1. You are trading or manufacturer ?
We are manufacturer, and have more than 65producing experience.
Q2. What is the main funtion of this equipment?
This machine is mainly used for milling maize, wheat, soybean to flour, and milling maize to different size, like corn grit.
Q3. How about your after-sale service ?
Our machine warranty is one year and some parts can be changed on free within one year. Besides, our engineers can go to your country to instllatin the machine, and you just need to pay for some extra cost.
Q4. How about the price?
We can promise to offer the competitive price; of course, the price is based on the machine configure and the capacity; our engineer can provide a perfect plan according to your capacity and budget.
