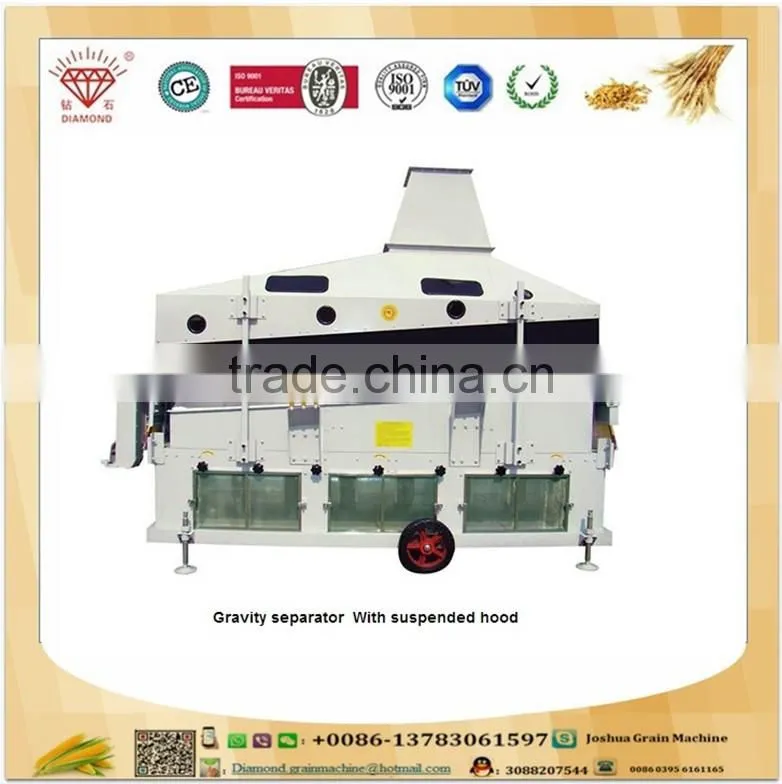

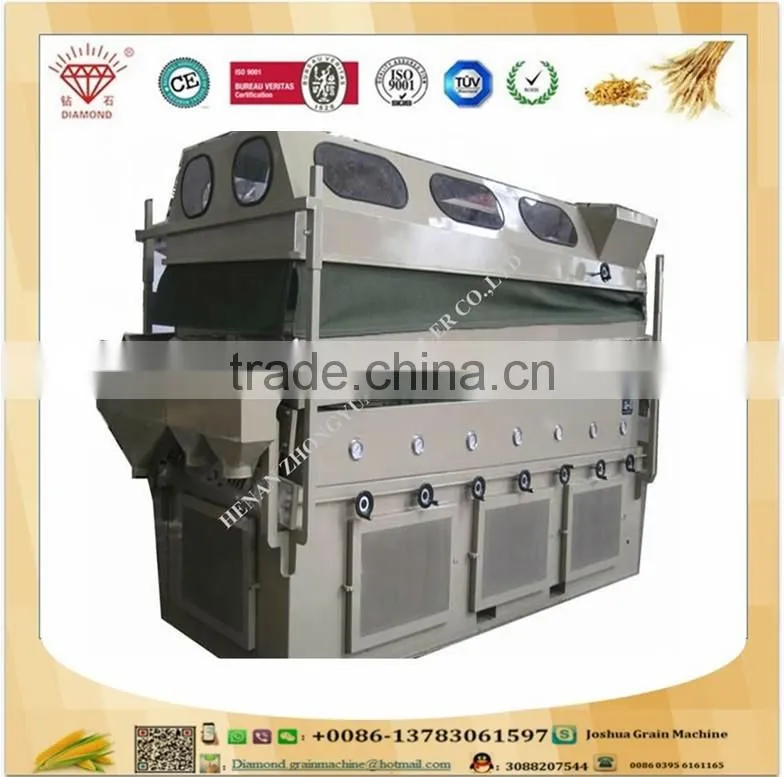

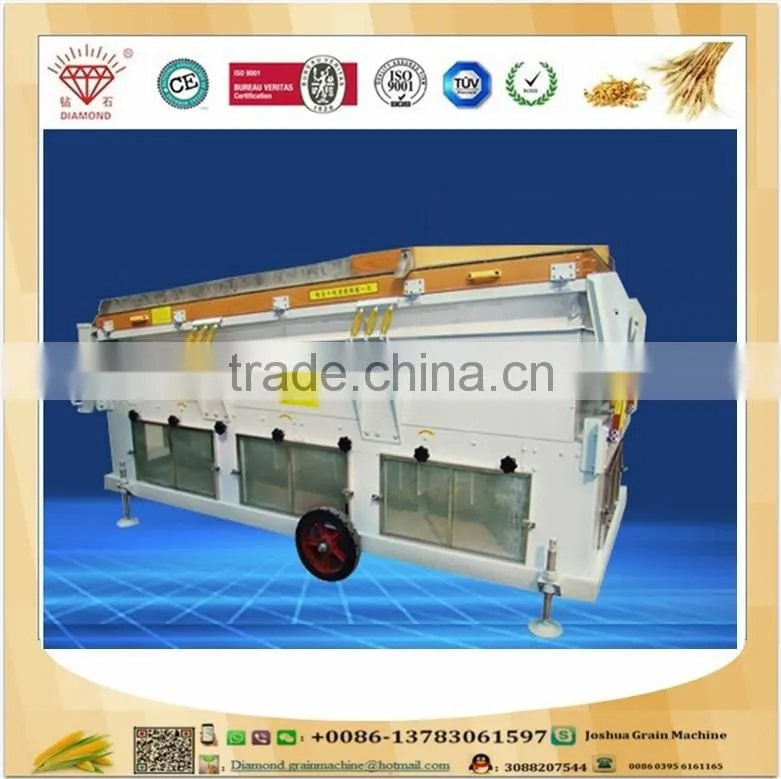

Introduction of 5XZ-5 Seed Grain Sesame Wheat Gravity Separator/Gravity Table
5XZ-5 Seed Grain Sesame Wheat Gravity Separator/Gravity Table is the blowing type Seed Grain Sesame Wheat Gravity Separator/Gravity Table , used for separating grain and seed which have same shape but different in gravity, finally obtain the best seed which will be used for sowing.
Application of 5XZ-5 Seed Grain Wheat Gravity Separator/Gravity Table
The Grain /Wheat Gravity Separator and Specific Gravity Table can efficiently remove moldy kernel, immature shriveled, insect damaged seed or broken seed to ensure maximum quality of the final product. The Sesame /Grain /Wheat Gravity Separator and Specific Gravity Table can be used to separate all kinds of seed and grains, such as coffee bean, cocoa bean, peanuts, corn, peas, beans ,rice, wheat, sesame etc.
The Grain /Wheat Gravity Separator and Specific Gravity Table also has wide applications, from heavy industrial materials like glass, stone, metal and sand, to lighter agricultural seeds beans and nuts.

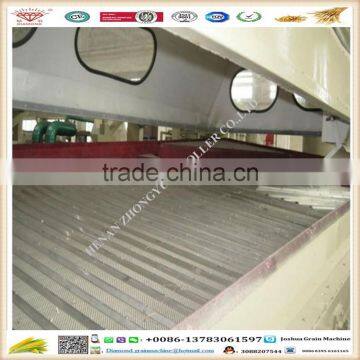

Working Principle of 5XZ-5 Seed Grain Wheat Gravity Separator/Gravity Table The Grain /Wheat Gravity Separator and Specific Gravity Table works on a fluidized bed principle. Materials is fed on oscillating sieve deck. By the pressure of air & deck oscillation, material is fluidized and stratified. Heavy fraction sink into the deck while light fraction is suspended in fluidized state. Deck oscillation causing heavy and light fraction travel in separated path and collected separately.
Specification of Seed Grain Sesame Wheat Gravity Separator/Gravity Table
Model No. | Capacity(T/H) | Power(KW) | Weight(KG) | Sieve Size | Dimensions(MM) | Remarks |
5XZ-5B | 5 | 9 | 1550 | 2000×625 | 4000×2050×3100 | Suction Type |
5XZ-5A |
5 |
9.75 |
1600 |
2000×475 |
4000×1900×3100 | Suction Type with Dust Cylone Separator |
5XZ-5 |
5 |
13.2 |
2350 |
3360×1420 |
3900×1700×1750 |
Blow Type |
