Top Quality Rotary Air Lock Complete Flour Mill Production Line
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Wheat Corn Soybean Seed Gravity Table and Gravity Separator Gravity Table Grain Separation
-
Gravity Separator Machine Gravity Table and Destoner
-
Wheat Corn Soybean Seed Gravity Table and Gravity Separator for Sales
-
Wheat Corn Soybean Seed Gravity Table and Gravity Separator for Sale
-
Gravity Separator Gravity Table Vacuum Type Gravity Separators
-
Gravity Separator Gravity Table Vacuum Type Gravity Separators
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Diamond | Model Number | TGFY5 | |
| Production Capacity | 5-9L, 5-9L | Voltage | 220V/380V | |
| Power(W) | 0.55kw | Weight | 50kg, 51kg | |
| Dimension(L*W*H) | 650*300*450mm | Certification | ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

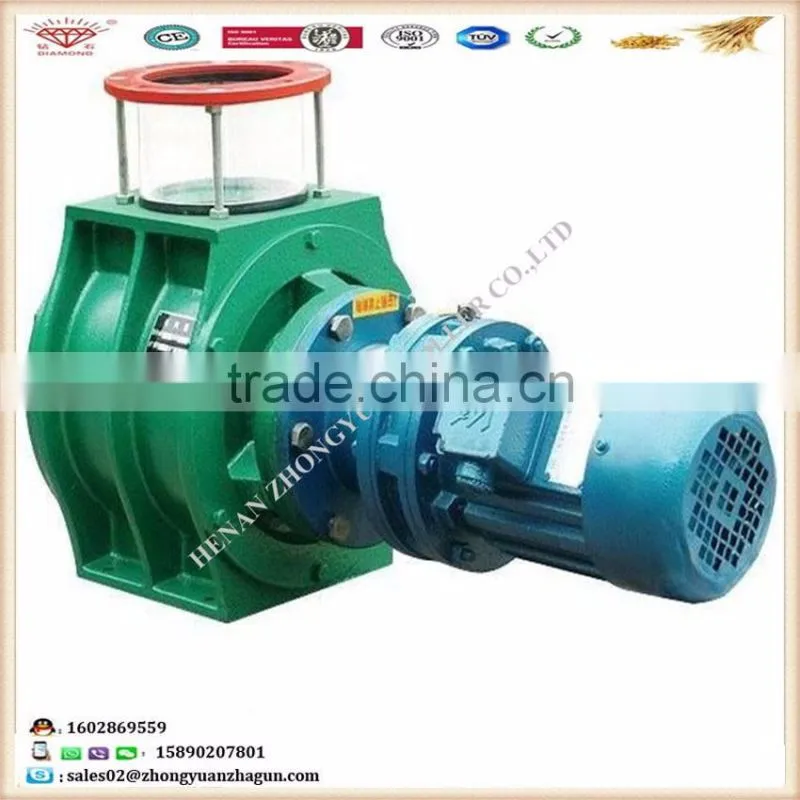

Top quality Rotary Air lock complete flour mill production line
Principle of air lock:

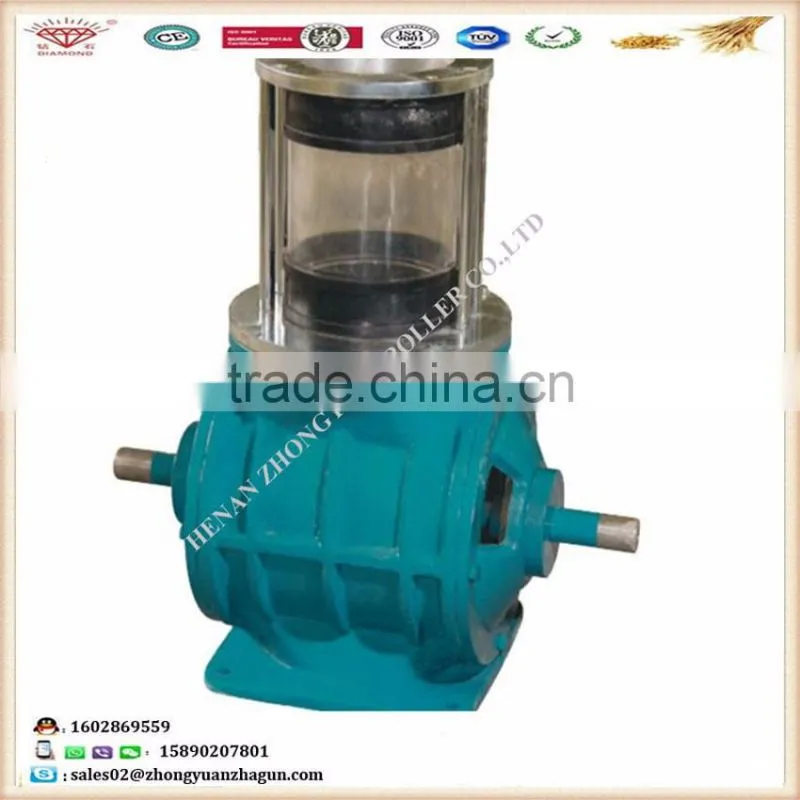

- The machine has a casting casing and a rotary wheel inside. The materials are fed from the top inlet and discharged from the bottom outlet through the rotoring wheel. The main function of this machine is shut off the aspiration air flow with the atmosphere while separating the materials from the pneumatic line or aspiration air flow.
Features of air lock:
- Advanced design and excellent fabricating ensure the air tighten sufficiently while the rotoring running smoothly.
- With sight glass at the inlet for a intuitionistic inspection.
- At most 7 units machine can be connected together to share a gear motor.
- Made by stainless steel, high sanitation.
Application of air lock:

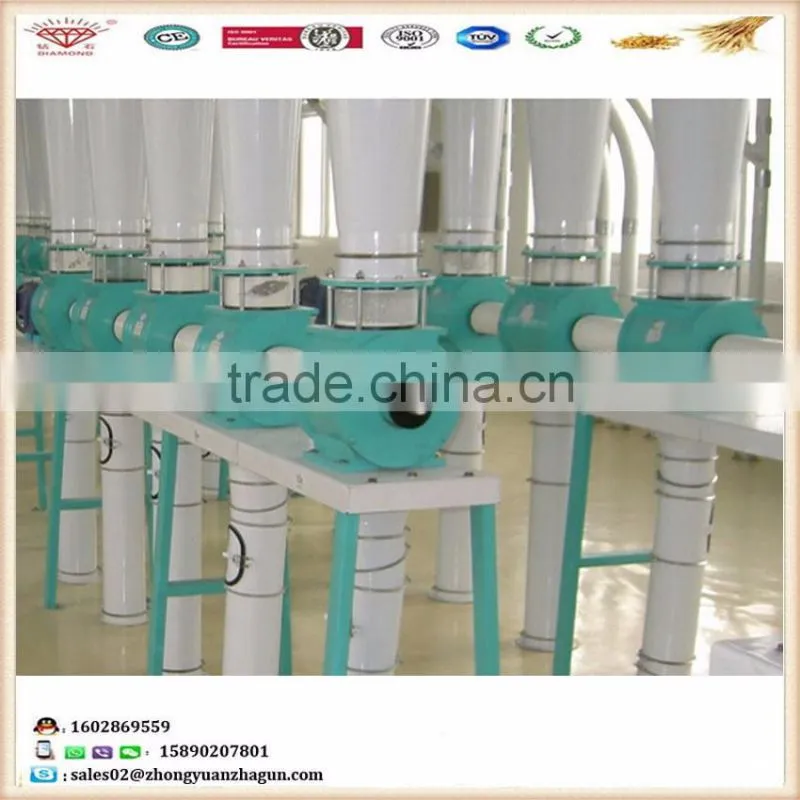

- Normally airlocks are installed underneath the pneumatic cyclones and air jet filters for the discharge of mill stock, filter dust in the food processing industry.
- Can also be used as a ration machine for feeding materials such as grain, break stock, semolina, flour and other materials with similar characteristics from pneumatic conveying lines.
Specifications of air lock:
| Type | Volume (liter) | Power (KW) | Speed (RPM) | Main Purpose | Weight (KG) |
| TGFY2 | 2 |
0.75-1.1
| 20-60 | It is used for grain,food,feed,grease, chemical industry, storage and transportation with the technology of pneumatic transmission. | 35 |
| TGFY4 | 4 | 49 | |||
| TGFY5 | 5 | 51 | |||
| TGFY7 | 7 | 57 | |||
| TGFY9 | 9 | 60 |

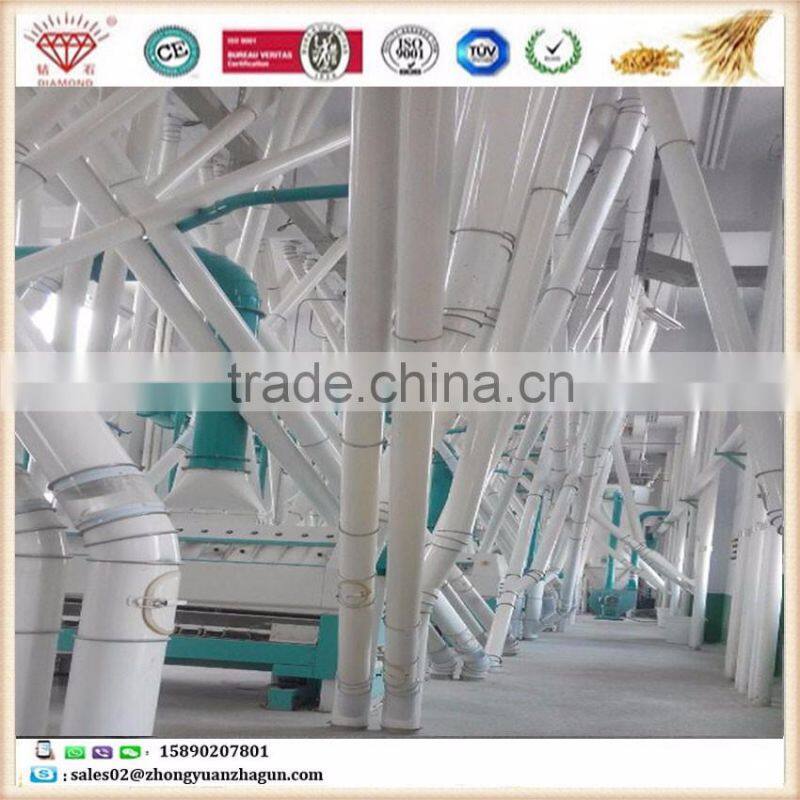

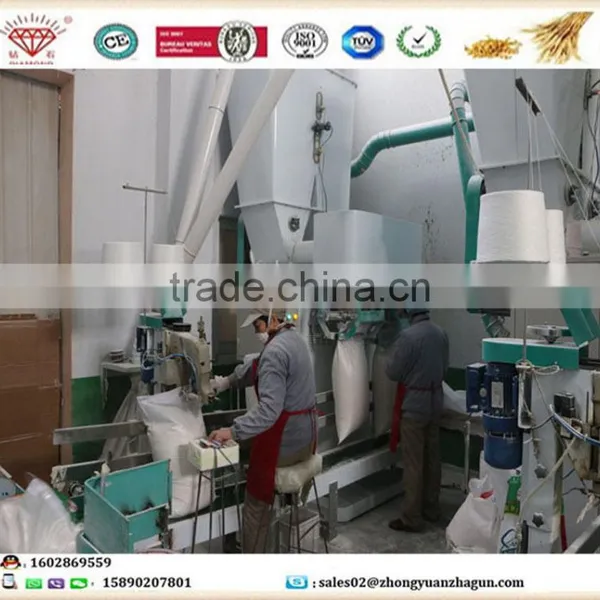

Complete Set flour mill, flour milling machine, wheat flour mill | |
Output | 30-500ton per 24 hour |

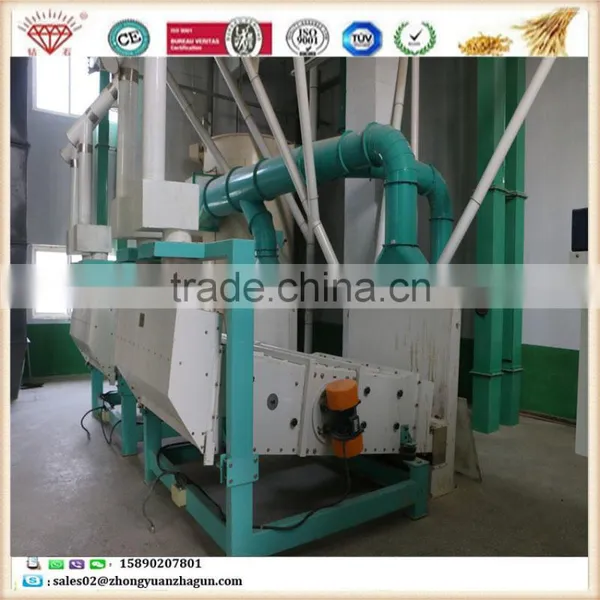

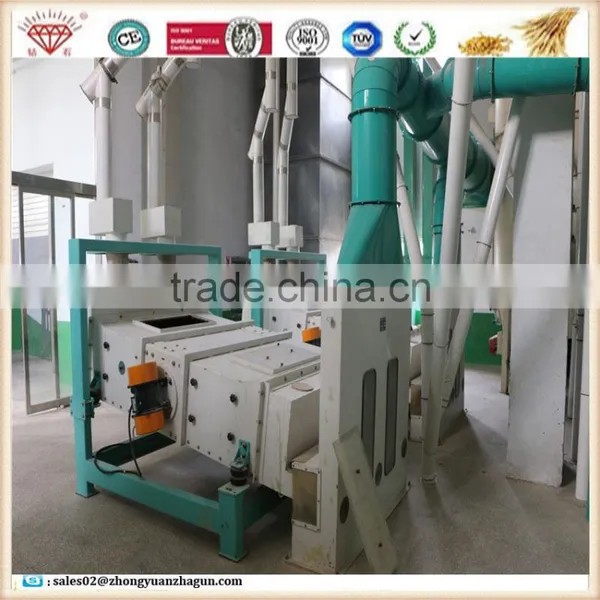

Main Cleaning Equipment | 1) High-efficiency Virbration Sieve |
2) Destoner | |
3) Corn Scourer | |
4) Magnetic Separator | |
5) Compurter control dampener | |

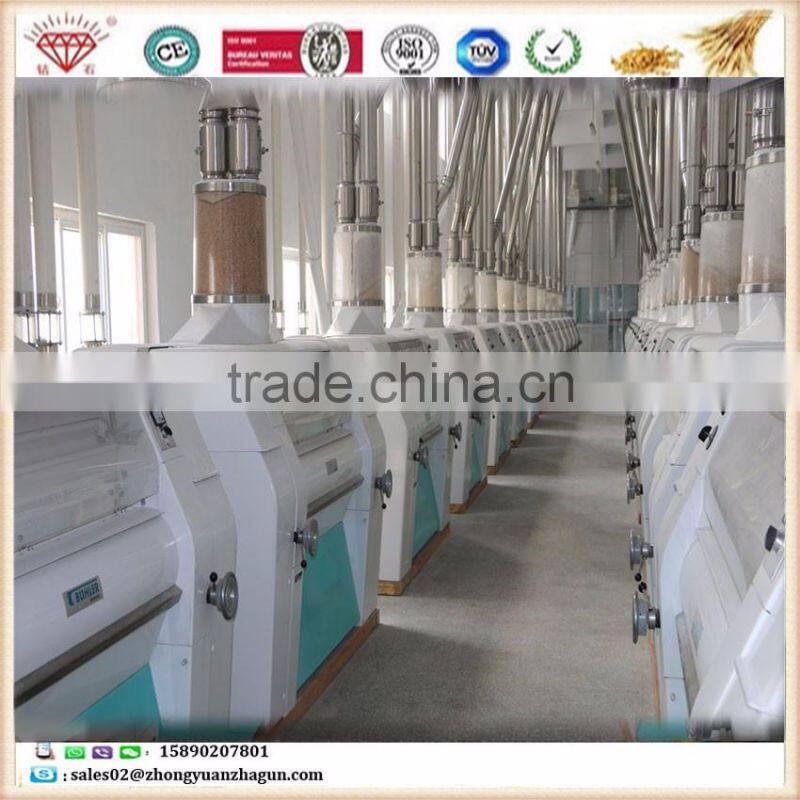

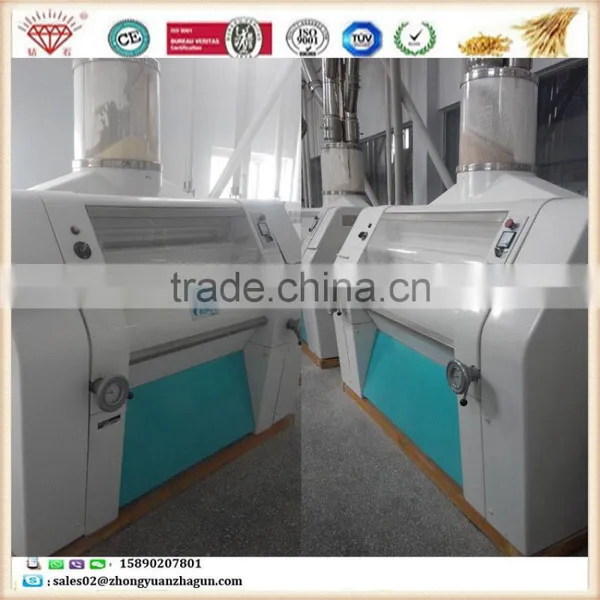

Milling Equipment | 1) Electrical Roller Mill |

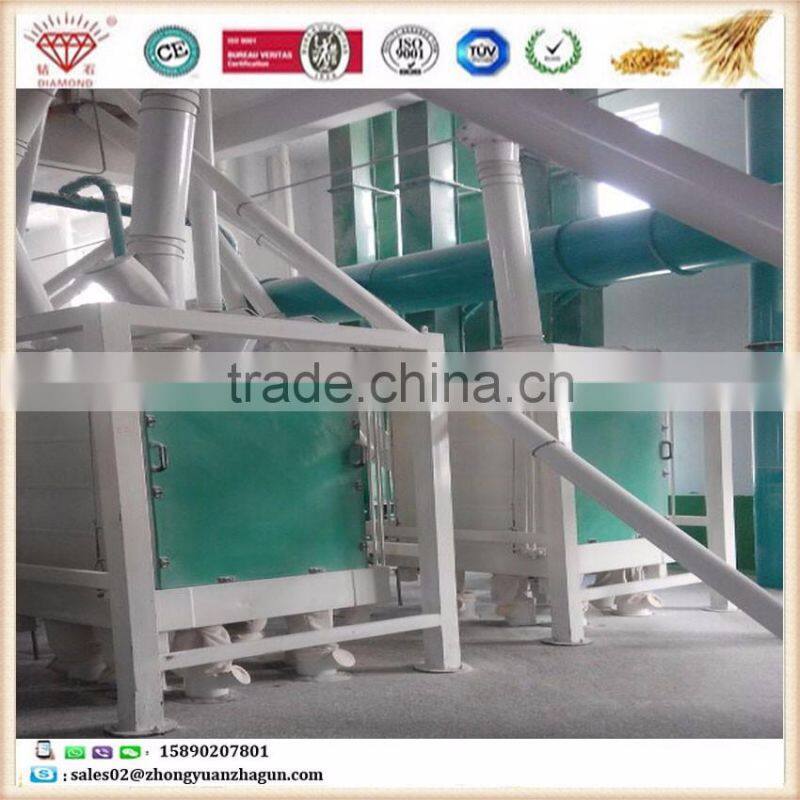

2) Plansifter | |
3) Purifier | |
4) High Pressure Blower | |
5)Impact Detacher | |
Flour extraction rate(%) | Grade 1 flour:72%-75%, |
Grade 2 flour:73%-78% | |
Design is with flour blending system. it is to satisfy customer's request on types of special purpose flour including bread flour, cake flour , biscuit flour, noodle flour etc. | |
Size of workshop | steel structure & multi-story cement building |
Spare part | one year complete set spare parts for free |
Advantage | 1. With advanced technical process and flexible adjustment |
2.Adopt various configuration modes for different choices. There are streamlined design, reasonable layout, and beautiful performance. | |
3. Electrical parts are all famous international brand : SIEMENS, OMRON etc. | |
4. Full automatic. | |
More products of air lock:
