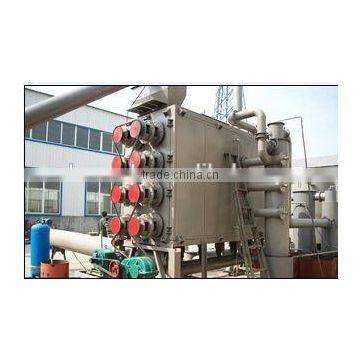

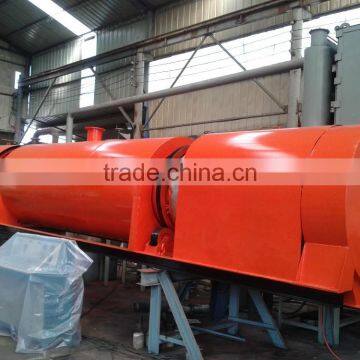

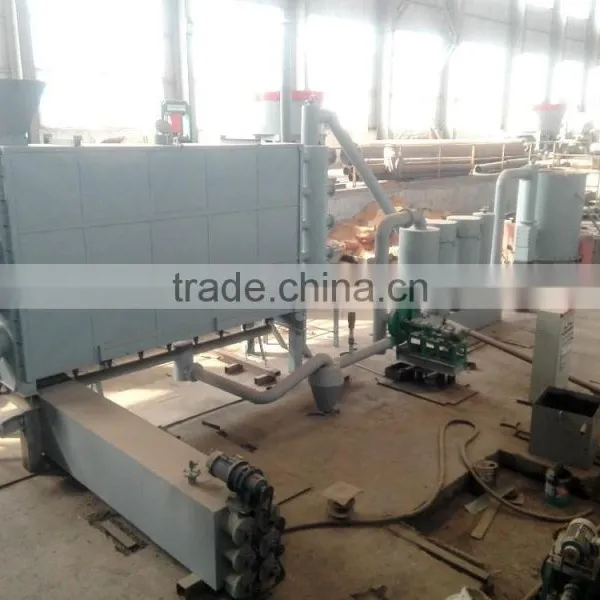

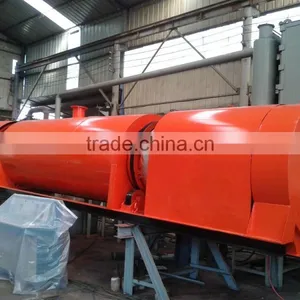

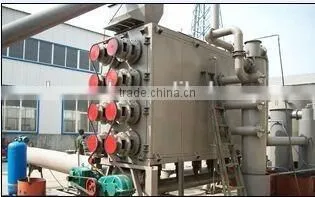

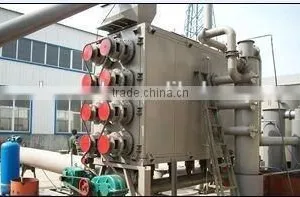

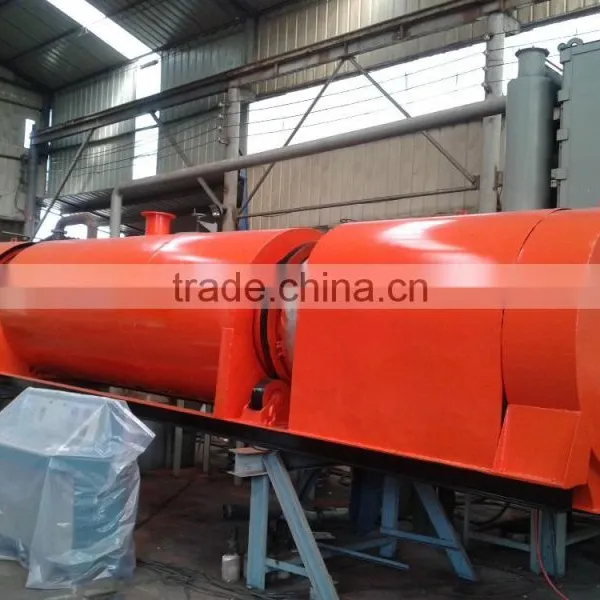

Introduction of the Smokeless And Long Burning Time Peanut Shell Carbonization Furnace/Straw Sawdust Carbonization Machine/Gasification Furnace
Carbonization furnace, Shanghai Manda Dynamic Technology Co., Ltd. is a professional to create superior quality, with a unique manufacturing process, perfect after sale service, reasonable price, excellent quality of equipment. This product is also applied for the national patent, the equipment to meet market demand, the construction of the national service better, to meet the needs of customers.
Carbonization furnace is an efficient energy saving and environmental protection equipment of carbonization, the carbonization equipment suitable for sawdust, rice husk and other fine powder shape, not easy for larger material by carbonization carbonization, advanced technology, is the whole process does not produce harmful gases, pollution of the environment.
The carbonization device is peanut shell, wood, corn stalk, rice husk, bagasse, twigs, bamboo shavings, sorghum stalks, sunflower seed shell, lees, corn cob, sorghum stalk, coconut, coffee grounds, cotton stalk, bean stalk, potato grass, dead leaves and other waste as raw material, made by high temperature high quality, environmentally friendly and efficient mechanism of charcoal or charcoal powder. Carbon materials clean carbonization equipment produced non-toxic, high heat energy, sell well in the market, broad prospects.
The technical parameters of the Smokeless And Long Burning Time Peanut Shell Carbonization Furnace/Straw Sawdust Carbonization Machine/Gasification Furnace
type | total power(KW) | outlet(t) |
WSTH-800X10000 | 26 | 0.2-0.3 |
WSTH-800X12000 | 26 | 0.3-0.5 |
WSTH-1000X10000 | 28 | 0.4-0.6 |
WSTH-1000X12000 | 28 | 0.6-0.8 |
WSTH-1200X10000 | 30 | 0.8-1 |
WSTH-1200X12000 | 30 | 1-1.5 |
type | power(KW) | outlet(t) |
325 Single group | 17.5 | 0.2 |
325 Double group | 21.5 | 0.4 |
377 Single group | 17.5 | 0.3 |
377 Double group | 21.5 | 0.6 |
426 Single group | 17.5 | 0.5 |
426 Double group | 21.5 | 1 |
450 Double group | 17.5 | 0.7 |
450 Double group | 21.5 | 1.4 |
The advantages of wood charcoal carbonization furnace
1, the carbonization time is short, high efficiency, high production rate.
2, smokeless and dustless, environmental products.
3, simple operation, saving time and labor, without any risk.
4, product quality assurance, the carbonization rate was 100%, charcoal powder is not broken, good looks, the pioneering technology, this product is a patented product.
Features wood charcoal carbonization furnace
1.The combustible gas made by self generated flue gas can be used recycling, gasifier slag can be used as charcoal powder, direct sales, to achieve the effect of energy saving;
2.The whole process without flue gas emissions, meet the national environmental protection requirements;
3.Carbonizing out the maximum yield of charcoal in the shortest time, each furnace carbonization time only need 4-6 hours;
4.1-2 people can operate the whole production line, each furnace volume 13 cubic meters, high production and efficiency;
5.By-products:wood tar refining diesel oil, wood vinegar liquid can be used as pesticide, will waste to exploit to the greatest extent, no waste.
6. The finished charcoal powder can reach 600Kg/h.
7. None stoping,working for 24 hours
8.Environmental protection,burn the furnace smoke itself,so no smoke go out.
The working principle of wood charcoal carbonization furnace
1, drying stage
From the start, to slowly rise to 160 degrees Celsius temperature carbonization, the bar containing water mainly depends on the external heat and bar produced by the combustion of evaporation. Fuel rod chemical composition has hardly changed.
2, the initial stage of carbonization
This stage mainly depends on the bar self combustion heat, the carbonization temperature rises to 160 to 280 degrees Celsius temperature
. At this time, the lignin material thermal decomposition reaction, which began to change. The unstable components, such as semi cellulose decomposition of CO2, CO and a small amount of acetic acid and other substances.
3, comprehensive carbonization stage
At this stage the temperature is 280 to 400 degrees Celsius temperature, at this stage, the lignin material rapidly for thermal decomposition, and generate a lot of acetic acid, methanol and wood tar and other liquid products. In addition to producing methane, ethylene and other combustible gas, the combustible gas combustion in the furnace. The thermal decomposition and combustion gas generated a lot of heat, the furnace temperature is raised. Wood materials under high temperature pyrolysis char.
Packaging
We can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines, or production line, it's better to loaded in standard container 20GP, 40GP, usually it needs wrapped with plasitc firstly, then loaded in container.
Shipping
We can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.
Private Customized:
We design different wood charcoal carbonization furnace according to specific
requirement.
Customers’ Guidance:
Please leave the following info in inquiry
1. What’s the capacity ( work load per hour in t/h )
Because with these factors, we are able to give you a fast answer.
Shanghai Manda Dynamic Technology Co.,Ltd is a conveyor facilities manufacture which is mainly in “pneumatic conveying” who have designed and manufactured a full range of pneumatic conveyors on positive pressure pneumatic conveying systems,vacuum
pneumatic conveying systems, ash silo facilities and related conveying equipments. Having 20 years experiences solved thousands of problems in
conveying,Manda Dynamic self-developed patented products: low pressure continuous conveyor - pneumatic conveyor for powders,Ash-fly recycled burning conveying system, vacuum suction pump, dust catcher device, dual axle mixer, pressure relief
valve, dry bulk unloader and DMC bag dust collector and etc which reach the international advanced level in technology, have been exported to Russia, USA, Singapore, India, Vietnam, Finland, Laos, Myanmar, Kazakhstan and other countries and regions. At the
same time Manda Dynamic won the praise and trust of the customers from more than 800 company in the national electric power, petrochemical, cement, metallurgy, chemical industry, nonferrous metals, food, pharmaceutical, building materials and other indust.
Q1: What’s the typical working procedure of the wood charcoal carbonization furnace?
A1: This product is mainly used in high temperature semi anoxic conditions, the raw material moisture in the wood and wood tar, acetic acid eduction, the carbonization.
Q2: How long we will get the reply ?
A2: Immediately reply on Skype: Shanghai Manda ,
24 hours on email :manda1188 at hotmail dot com.
Q3: The faster way to contact ?
A3: Call +86-185 1622 1729 talk with Mr.Dong Rain right now!
