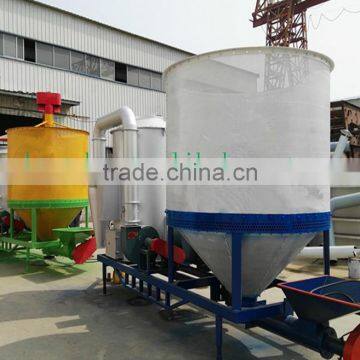

industrial revolution cocoa bean high temperature small grain dryer
- 100 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Type: | Farm Equipment | Use: | Agriculture | Certification: | CE ISO |
Place of Origin: | Henan, China | Brand Name: | Manda | Model Number: | MGD |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Automatic Electric Small Grain Dryer
1.It is applicable for drying various grain and plastic particle
2.RFC Series Heated-Air Dryer can thoroughly dry the raw materials and can save labor,improve quality and drop the cost,and assure 100% qualification for plastic products.
3.Adopt fully stainless steel with complete materials cleaning,design with bended hot air pipe for avoiding burn caused by powder in hot air pipe.
4.The new hot air chamber features high efficiency with energy saving reaching 30%,and features precise temperature adjustment and control,the quality electric parts boast stable performance,and the program ON/OFF function provides safe and reliable performance.
New typedrying machine has obvious characters with high performance, high efficiency, and high yield, which is the ideal equipment for the drying of some more wet materials. It is the ideal choice for a large scale production in carbon industries.
Technical parameters for Automatic Electric Small Grain Dryer
Model | MGD1.5A | MGD2.5A | MGD4.5A | |
Volume(m3) | 9.2 | 11.5 | 14.2 | |
Grain processing capacity(t/h) | Wheat | 1.5 | 2.5 | 4.5 |
Rice | 1.1 | 2 | 3.5 | |
Corn | 0.75 | 1.5 | 2.5 | |
Total power(kw) | 18 | 21 | 28.5 |
Paddy Dryer Machine Features:
When the ordinary Dryer to dry paddy,rice or other grain, bcs the raw material is still, the hot-blast air can’t penetrate completely, just heat some parts, so the raw material is easy to condense into pieces and to be jammed, So the ordinary can’t reach the Comprehensive drying effect.
Our MGD4.5A machine’s design is of two level spiral quick delivery, The
first level deliver the materials quickly into the barrel, and the second
level continuously rapid lift the raw material to the upper of the barrel
and then throw the raw material with deliquescence scattered, while the
hot air from the center of the barrel bottom blown out all around.
Smoothly move the raw material from bottom to top to conduct a
comprehensive heat transfer and dynamic drying process.
Because the raw materials inside the barrel are keep rolling, hot air
continuously from the center so as to achieve mixing and drying
simultaneously and can save time and energy.
The material of barrel, screw blade, shaft, tank, holder which contact part of the raw material all use stainless steel.
When need to clear material, just open the purging mouth, to make
spiral reverse and start drying fan then can clear material, the operation
