conventional fire alarm smoke detector with 2 wires

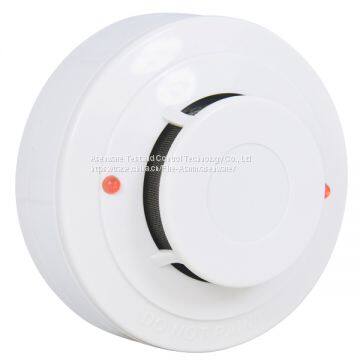

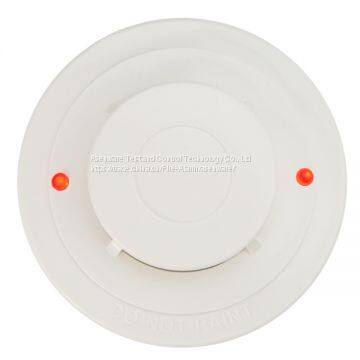

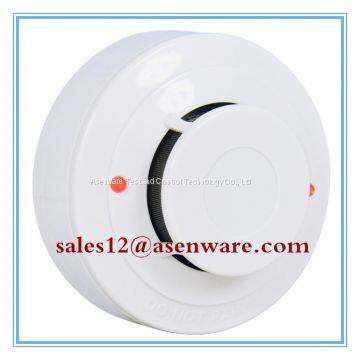

Advantage 2 Wire Conventional Smoke Detector

Fire sensor :Photoelectric smoke chamber

Mode No. AW-CSD381
Operating voltage range : 9 to 32VDC Non-polarity
Standby current less then 100uA@24VDC
Maximum Alarm current : less then 55mA@24VDC
Installation Temperature: -10 to 49 ℃
Smoke Senditivity: 1-2.5% /FT
Customization Logo, color
Standards ISO9000,EN54-7, CE,SASO

1.Compatible with all the conventional fire alarm
ntrol panel
3.Unpolarized wire input
4.Wide range of operating voltages
5.Unique optical sensing chamber
6.Built in microprocessor intelligent software
7.Two LEDs blink standby, provide 360° visibility
8.Insect-resistant screening
9.Twist-on mounting base with tamper lock

10.Drift compensation and smoothing algorithms
11.Remote Indicator LED can be connected.

Product size Diameter: 99.45 mm, height: 48.2mm
Packing Carton
Carton quantity 10PCS/Carton; 10 Carton/Box
Carton/box size Carton: 20.5×23.5×11cm;
Box: 43×27×58cm
Carton/Box
weight 1.42kg/Carton;
14.2kg/Box

ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS

(Building Management System) over 11 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system,

fire extinguisher, CCTV camera and DVR, and DDC for HVAC system.

Based on our ISO9001 quality control system and our experiences in BMS and NDT,

we integrated a series of products in our E-Shop; they are cost-effective and guaranteed quality.
We keep our best service for our customers, and have a rich experienced engineer team to design

and install for overseas projects.

 Q1: How about the quality of the products?
A: We produce every product with good quality materials, and test carefully to make sure stable quality

before shipment.

Q2: Can I have a sample order?
B: Yes, Of course you can . we welcome sample order for your testing and checking products quality.

Mixed samples are avaliable.

Q3: What is the shipping time?
C: Small Qty order needs 3-5 working days, big Qty order usually needs 10-5 working days after

payments arriving. That's depends on order Qty.

Q4: How to proceed the order if I have logo to print?
D: We will prepare artwork for visual confirmation at first, if the color and position are alright,we

will make print Logo sample from silk print factory and take picture for you to comfire before mass production.
