20~1000TPD coconut oil production machine
Our company is a large-sized joint-equity enterprise which specialize in producing edible oil machanical equipment and it is also a group enterprise integrating scientific research,manufacturing ,sales as one.research institute of machine design company and henan,henan university of technology(formerly the zhengzhou grain college)school-enterprise cooperation in the oil equipment to carry out long-term,protein extraction,phospholipid extraction,etc R&D and application of new technologies.
1. coconut oil production machine
Process Features of JINXIN Rotocel Extraction:
1. Adopt stainless steel fixed grid plate and increase the horizontal grid plates, which can prevent the strong miscella from flowing back to the blanking case,
so as to ensure good extraction effect;
2. The rotocel extractor is driven by rack, with unique rotor of balanced design, low rotating speed, low power, smooth operation, no noise and quite low maintenance cost;
3. The feeding system can adjust the rotating speed of airlock and main engine according to the feeding quantity and maintain a certain material level,
which is beneficial to the micro negative pressure inside the extractor and reduce the solvent leakage.
4. The advanced miscella circulation process is designed to reduce the fresh solvent inputs, reduce the residual oil in meal,
improve the miscella concentration and save energy by reducing the evaporation capacity.
5. The high material layer of the extractor helps to form immersion extraction, reduce the meal quality in miscella, improve the quality of crude oil and reduce the evaporation system scaling.
6. Specially suitable for the extraction of various pre-pressed meals.
2.Main Economic and Technical Parameters of Rotocel Extractor
Capacity | 300T/D |
Residual oil in meal | ≤ 1% |
Solvent consumption | ≤ 2Kg/T (No.6 solvent oil) |
Crude oil moisture and volatile matter | ≤ 0.30% |
Power consumption | ≤ 15KWh/T |
Steam consumption | ≤ 280KG/T (0.8MPa) |
Finished meal moisture | ≤ 13% (adjustable) |
Residual solvent in finished meal | ≤300PPM (qualified detonated experiment) |
3.Wet Meal Desolventizing Process of coconut oil production machine
Desolventizer toaster advantages:
a) Passivate and damage the anti-nutritional components such as the urea enzyme and trypsin in the meal, and improve meal value in use.
b) Control the protein denaturation degree in the meal , and improve the NSI index effectively.
c) It can better regulate the color, flavor and taste of the meal.
d) It can better reduce residual solvent in the meal and regulate the meal moisture, so as to guarantee the minimum solvent consumption and safe use of the meal.
4.Negative pressure evaporation process of coconut oil production machine
The liquid from the extractor is the miscella containing grease and oil, which can be separated out according their different vaporization temperatures.
Our company mainly uses vacuum evaporation technology, and it can reduce solvent leakage and consumption.
The separated solvent vapour is cooled and recycled back to the extractor for reuse, which can improve the solvent efficiency.

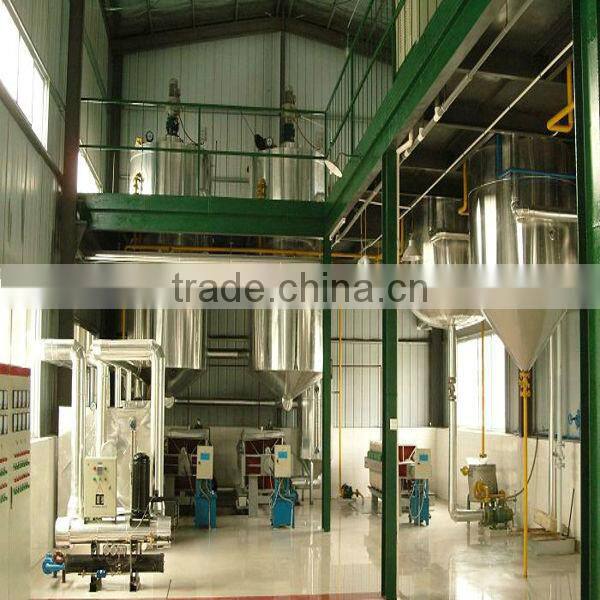

5. coconut oil production machine of isntallation site
6.The refining method of oil refinery
1. Chemical refinery
2. Physical refinery
3. Chemical &physical combination refinery
7.The main process of new design oil refinery plant
1. Crude oil
2. Degumming
3. Deacidification
4. Bleaching
5. Frame filter
6. Deodorization
7. Dewaxing
8. Leaf filter
8.The detail process of new design oil refinery plant
1. The decolour tank is for bleaching grease.
2. The deodorizing tank is for deodorizing grease (stainless steel).
3. The conducting oil furnace provides thermal energy need for production, the temperature reach to 280degree.
4. The vacuum pump provides vacuum for bleaching, deodorization which can reach 755mmHg or more;
5. The Air compressor can dry the bleached clay
6. The air press is for filter clay
7. The steam generator can generate steam distillation required.
8. This kind of oil refining equipment make the oi reach the standard level national edible oil.

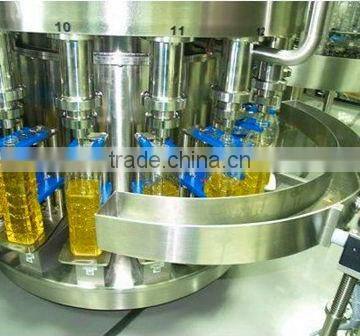

9. Filling machine

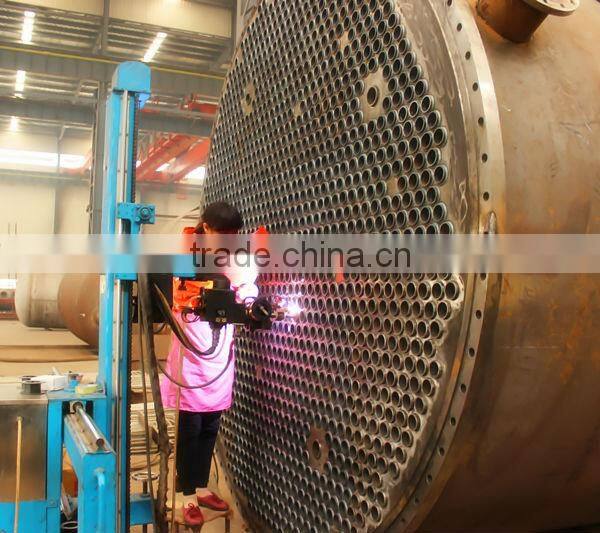

10. Our workshop
we hope to establish a growing, healthy and mutually beneficial trade relationship with you!
If you are interested in our machine, Please click "SEND" to contact with us, or email me by above information.
