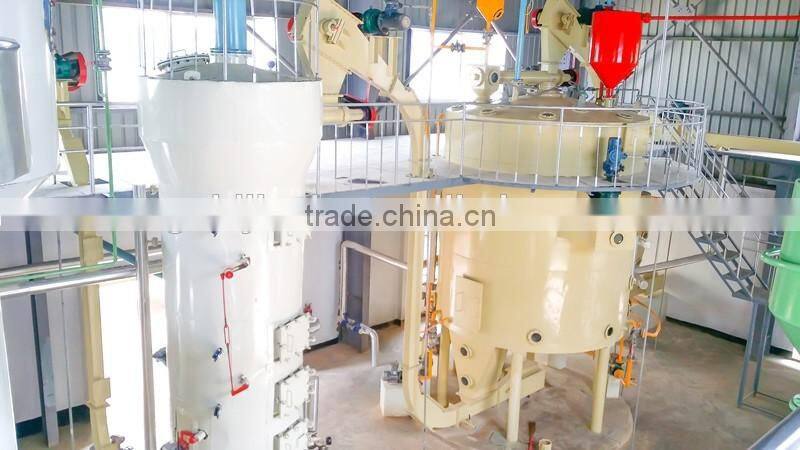

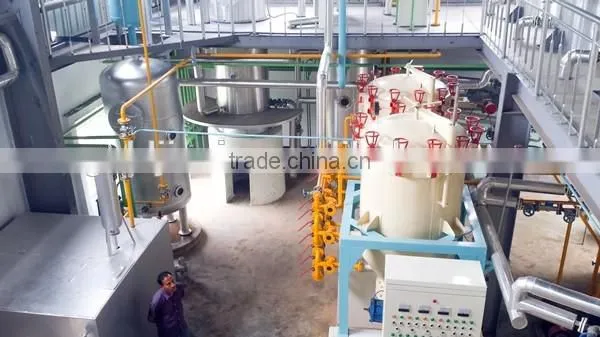

China Alibaba Automatic rice bran oil press equipment line

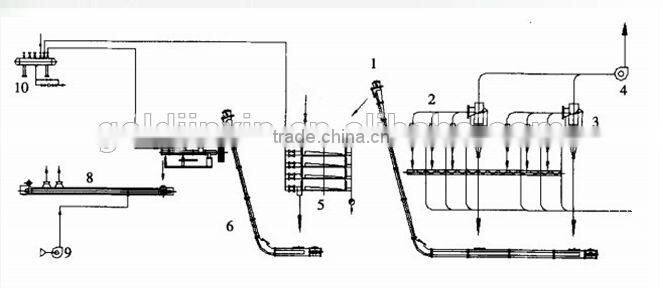

1.rice bran oil press equipment pretreatment flow chart:
Extrusion section
Process feature of oil machine:
Pretreatment process feature:
1) Different combinations of process can process various oil plants in one workshop.
2) Use special intensified pretreatment technology for aroma peanut oil to make it more aroma.
3) Adopt advanced and reliable shelling technology to meet higher requirements for protein content in meal.
4) Extrusion treatment is used for raw materials with hard extraction, large-sized powder, and large capacity, which can reduce residual oil and solvent consumption, and increase the capacity by 50-80%.
5) The new technology of shelling and low-temperature treatment can ensure high protein and least denaturation.
1:Scraper conveyer 2:Separetor 3:Tripper 4:Fan 5:Conditioner 6: Scraper conveyer 7:Extruder 8:Cooling conveyer 9:Fan 10:Points of cylinder
2.Extraction flow chart
Material embryos→Extraction→Wet meal→Desolventizer→Cooling→Product meal packing
↓
Mixed oil→Filter→Negative pressure evaporation → Crude oil
↓
Solvent recovery
Main technical parameters of rice bran oil press equipment
500T/D Solvent Extraction Plant | |||
1 | Residual oil in meal | ≤ 1% | |
2 | Solvent consumption | ≤ 1.5Kg/T (N-hexane) | |
3 | Crude oil moisture and volatile matter | ≤ 0.30% | |
4 | Power consumption | Installed capacity:320KW | |
5 | Steam consumption | ≤ 280Kg/T (0.8MPa) | |
6 | Water consumption | 0.3t/T soybean cake | |
7 | Finished meal moisture | ≤ 10-13% (adjustable) | |
8 | Urease activity | 0.05-0.25 | |
9 | Residual solvent in finished meal | ≤ 100PPM (qualified detonated experiment) | |
10 | Mechanical impurity | ≤ 0.20% | |

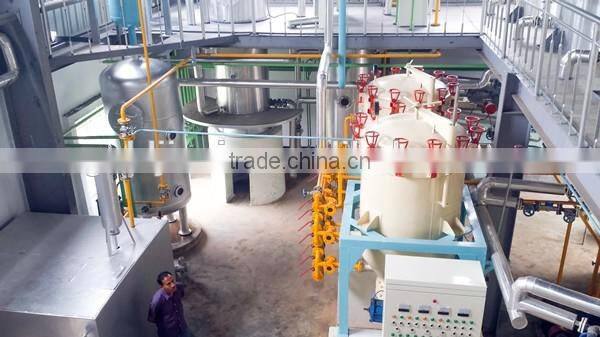

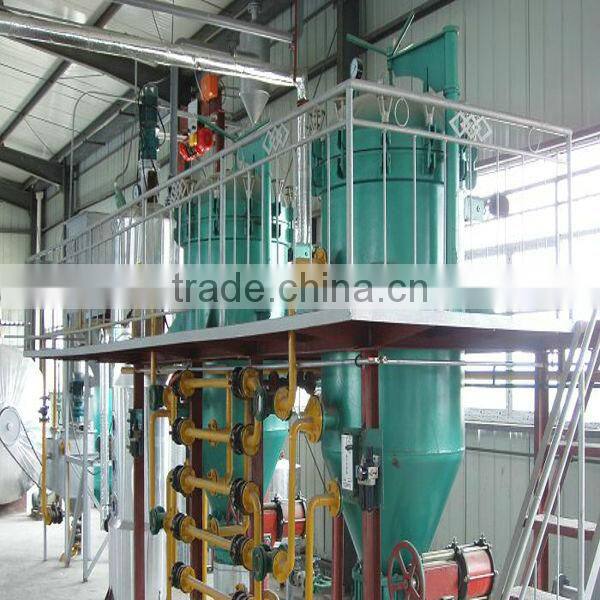

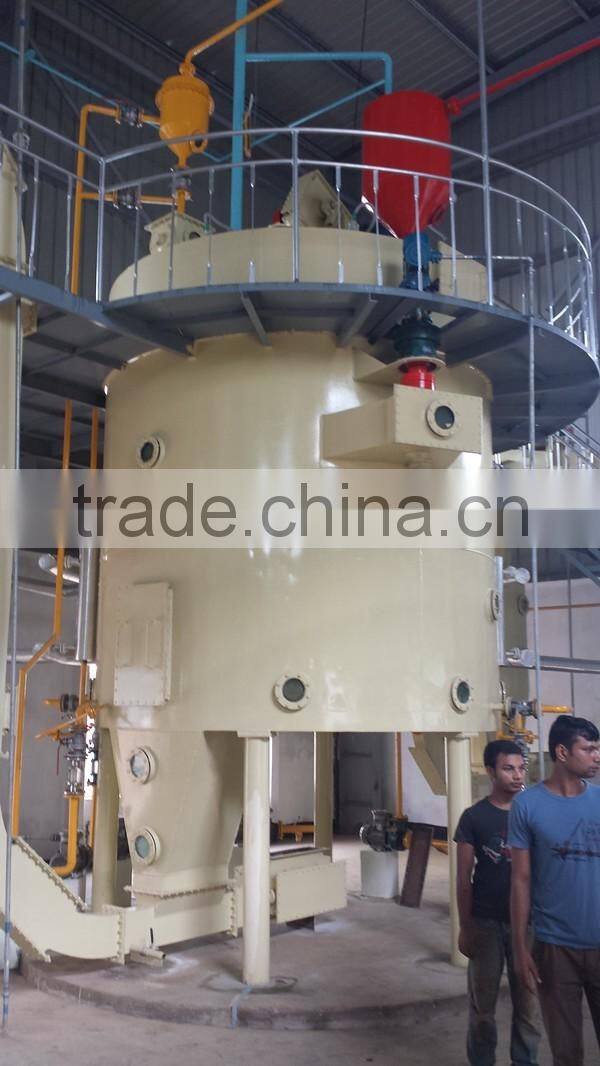

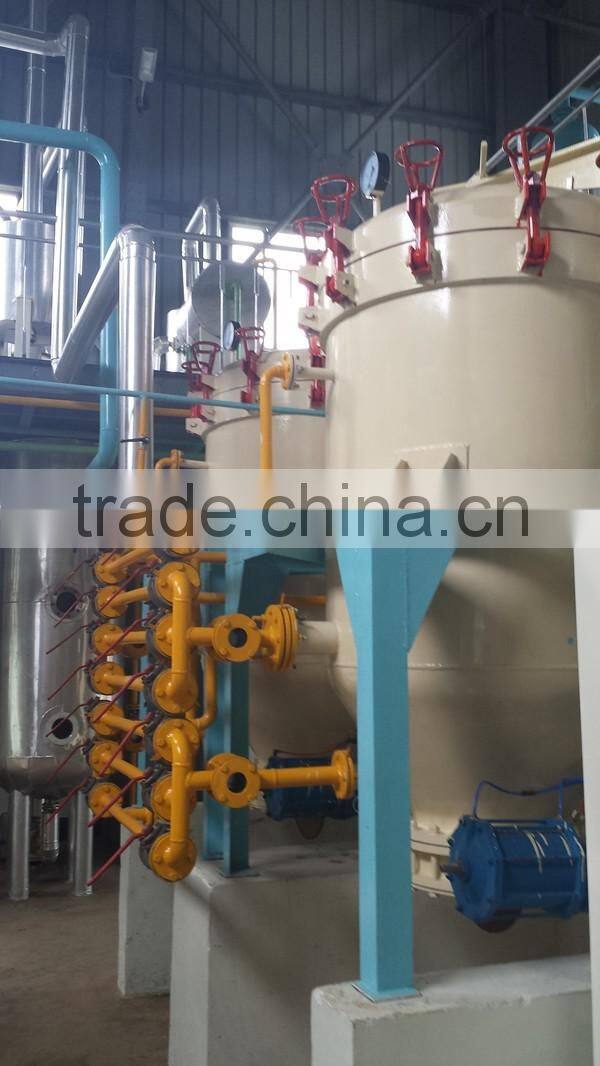

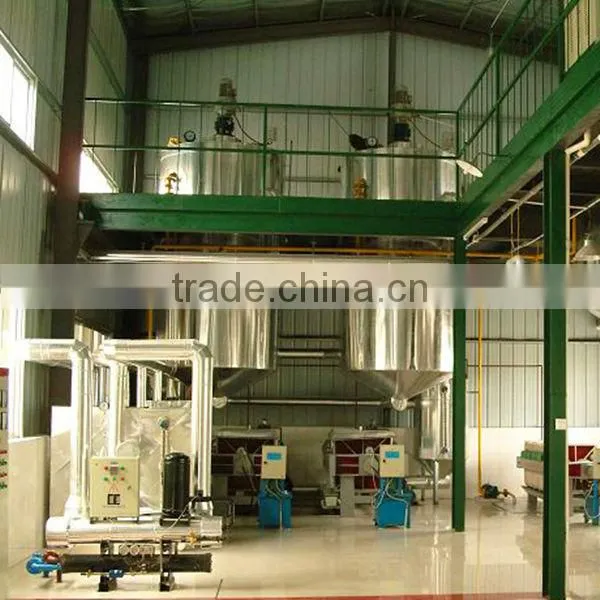

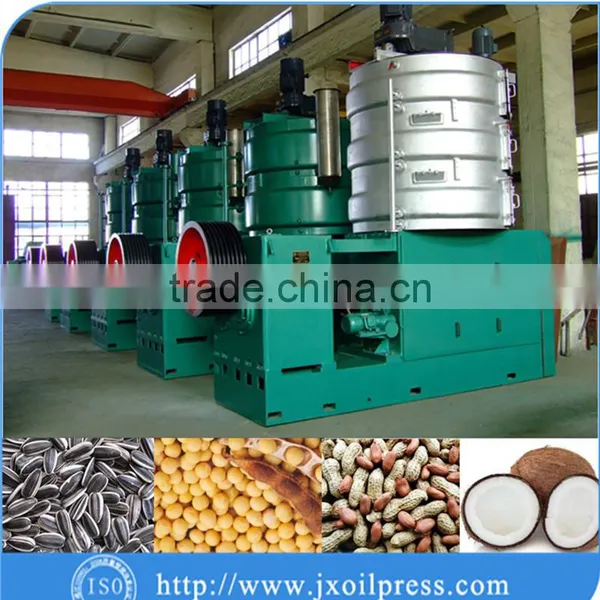

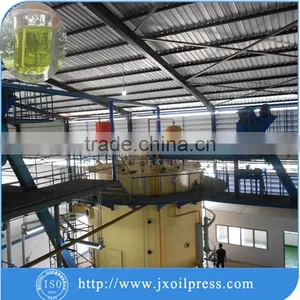

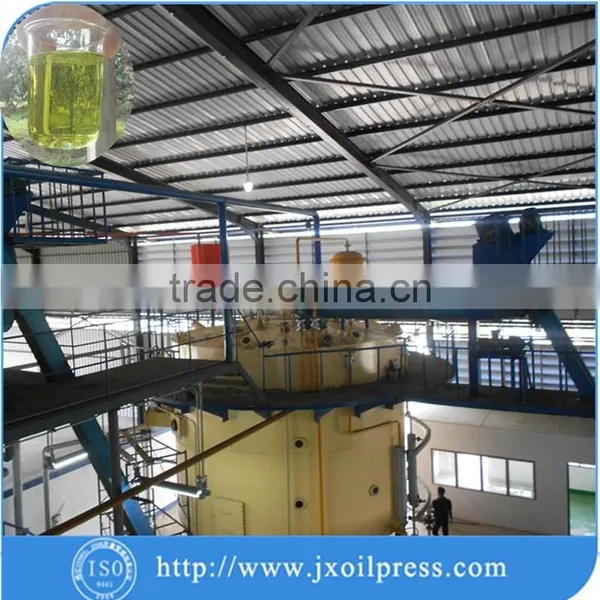

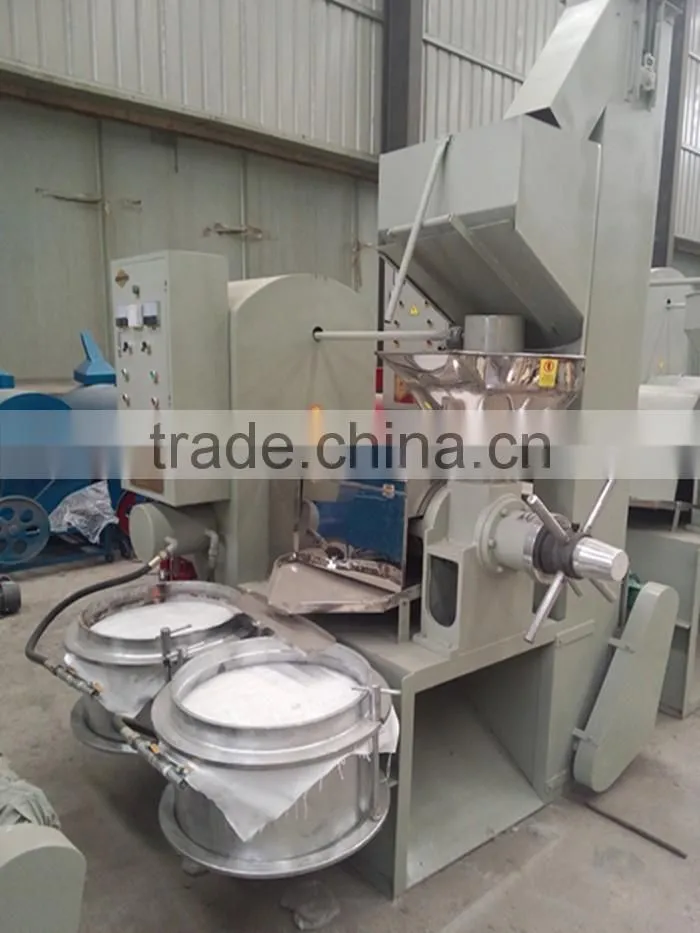

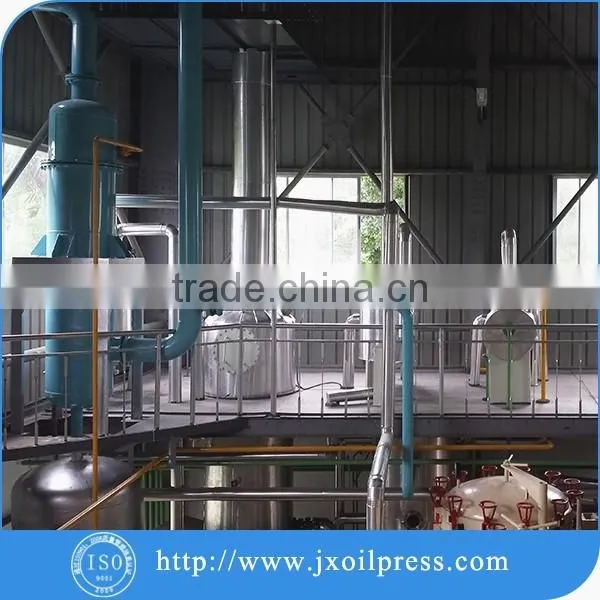

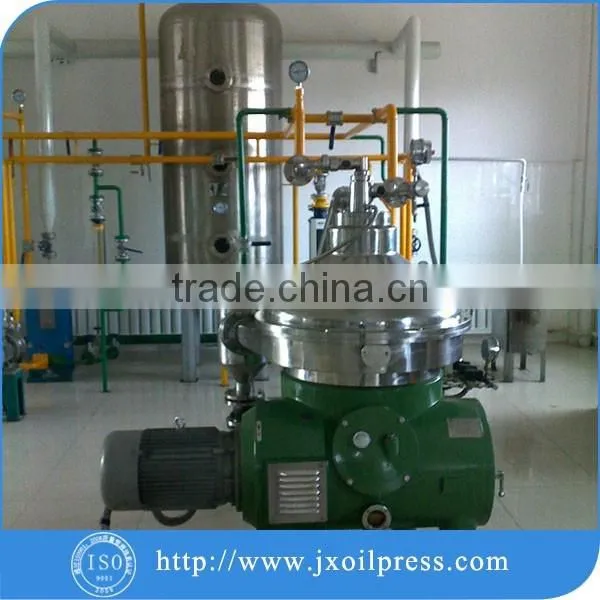

Picturs of rice bran oil press equipment
3.refinery part flow chart
1.Degumming:
Removing the phosphatide by adding hot water,when phosphatide
meets hot water, it will become bigger and bigger, then out of tanks.
2.Deacidification:
Removing the FFA by add caustic soda (for taking neutrallzation reaction).
3.Bleaching:
Remove the pgment by adding bleaching earth andthe remaining bleaching earth will be filtrated by leaf filter.
4.Deodorization: Remove the oxide, solid particle and volatide gas.
Our Company
XinxiangJinxin Chemical engineering equipment co,. Ltd is mainly focused on all kinds of pressure vessel and machine manufacturing .It is established in 1978 and has much rich experience in this field.And our best seller is peanut oil machinery .We produce the complete oil production line ,and sell to all the world ,such America , Middle east ,Africa ,Europe etc.
