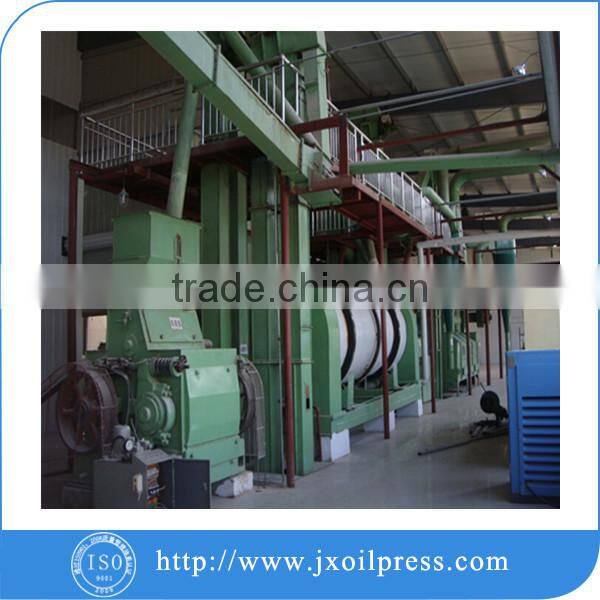

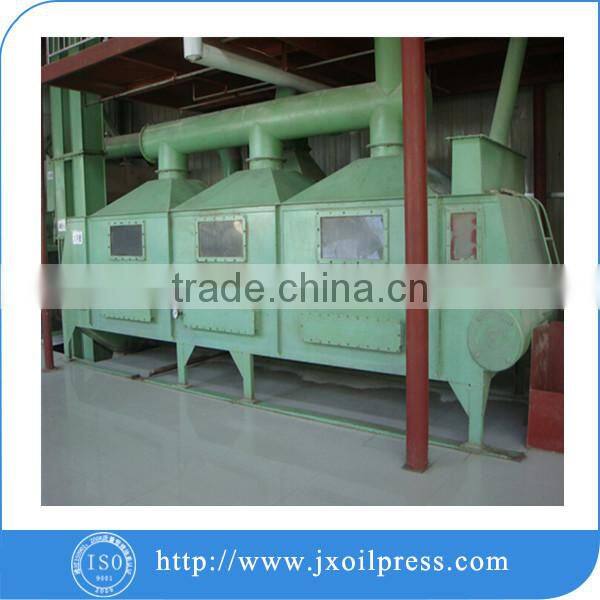

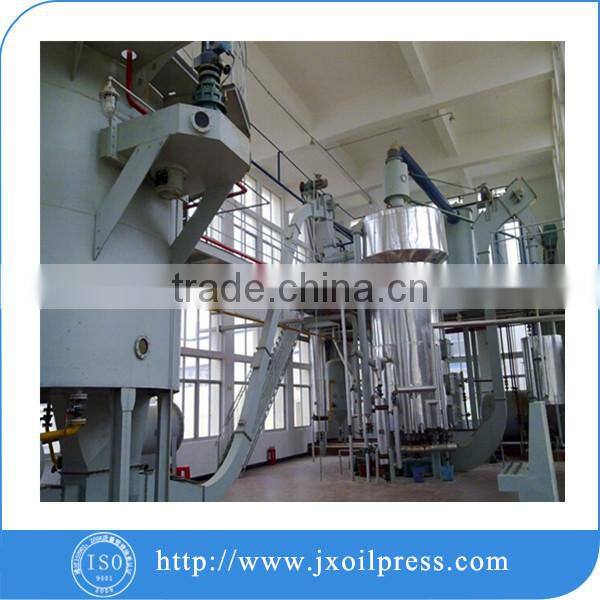

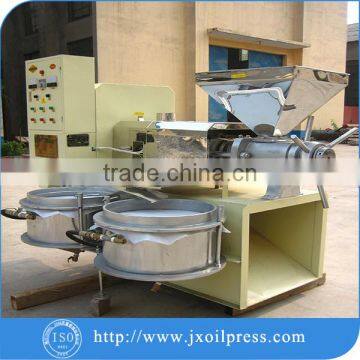

Canola oil mill machinery
Canola Press flow chart
Canola → Cleaning→ RemoveStone→ Flaker → Cooking → Press → Crude oil filter → Canola oil
Main process description:
Metering process: with special equipment, the stable measuring scale is used to regulate the flow and measure total production. Moreover, it can achieve accumulated measurement, transient measurement and cost accounting, with accurate measurement and high precision.
Cleaning process: In order to obtain high effective cleaning, ensure good work condition and production stability, high efficient vibration screen was used in the process to separate big and small impurity. Suction type gravity stoner removing machine was applied to remove the shoulder stone and earth, and magnetic separation equipment without power and exhaust system were used to remove iron. Dust removing wind net is installed.
Flaking Process: hydraulic compact roller flaker is used to ensure thin and uniform flake, with high toughness and small powder. the oil of raw material can be extracted in the shortest time and maximum, and residual oil was less than 1%.
Cooking process : use electrical cooker to cook,as we choose a low temperature to press , so cook the canola to 60 degree ,then send the canola to presser

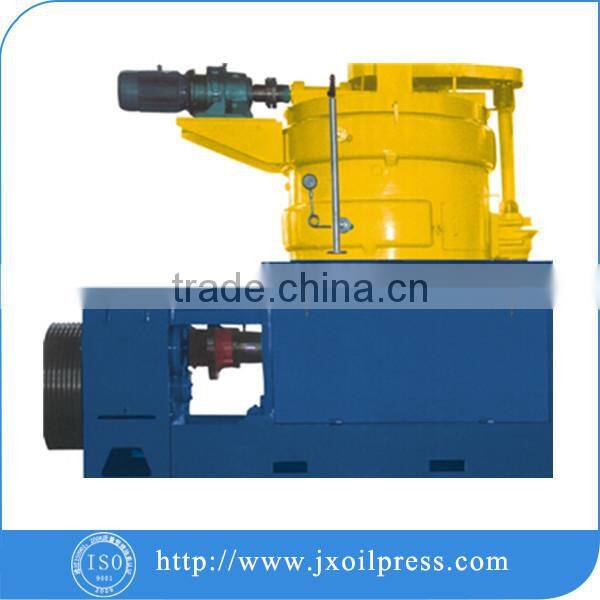

Press process: dopt the LYX24 machine in China to squeeze out some of the oil from the high oil materials, such as Canola seed etc.to make sure the oil rediual in the cake is 7-8% .

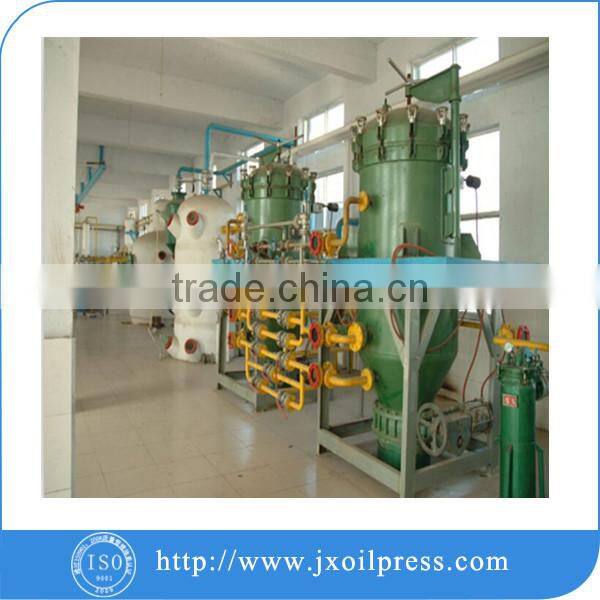

Crude Oil Filter First, use clarifying oil tank for primary settlement and filtering, and then use vertical blade filter for fine filtration. Try to reduce the cake residue in crude oil to ensure the following deguming effect.
XinxiangJinxin Chemical engineering equipment co,. Ltd is mainly focused on all kinds of pressure vessel and machine manufacturing .It is established in 1978 and has much more experience in this field . We now have more than 300 workers ,fixed assets is 90000thansouds .And we rewarded ISO9001 ,Manufacture license of Special Equipment certification ,and Design license of Special Equipment certification .And our best seller is Grain Oil machinery .We produce the complete oil production line ,and sell to all the world ,such America , Middle east ,Africa ,Europe etc.
Our company always put the quality and credit on the first place . And we have high technology , perfect management system and complete sales model . I hope we can succeed in the future ,depending on our quality and technology
Our company have set up Mechanical Design and Research institution,oil press machine department ,large-sized complete oil equipment department,International trade department,production department.Our business involve in smallsized oil pressing series,Grain and oil engineering designing,equipment manufacturing and installing, project contracting,technical service ,new product development,the intensive and deep processing for oil by-products and so on .
